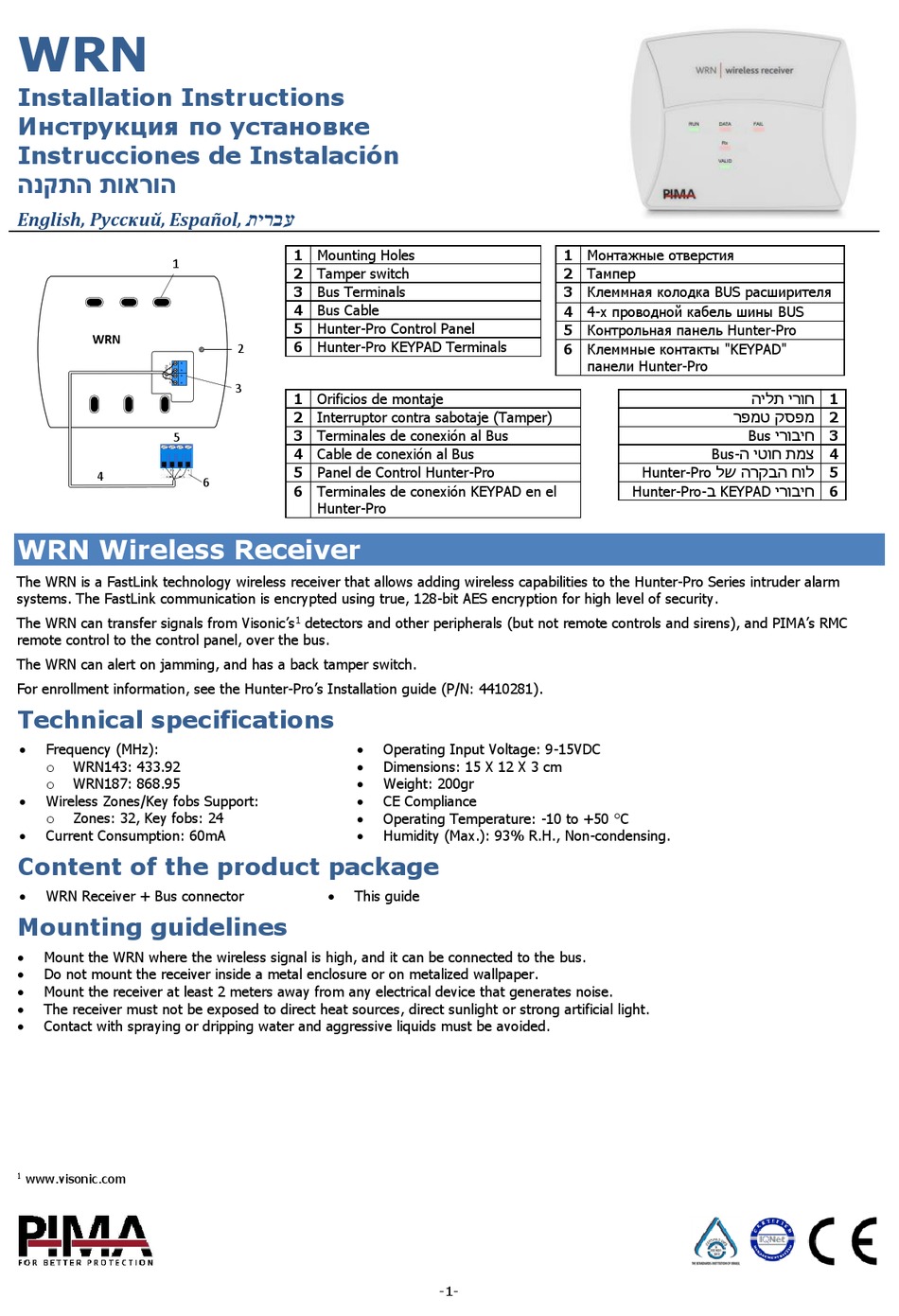

Pima WRN Installation Instructions Manual

WRN
Installation Instructions
Инструкция по установке
Instrucciones de Instalación
‫הוראות התקנה‬
English, Русский, Español,
1
WRN
1
2
3
4
5
4

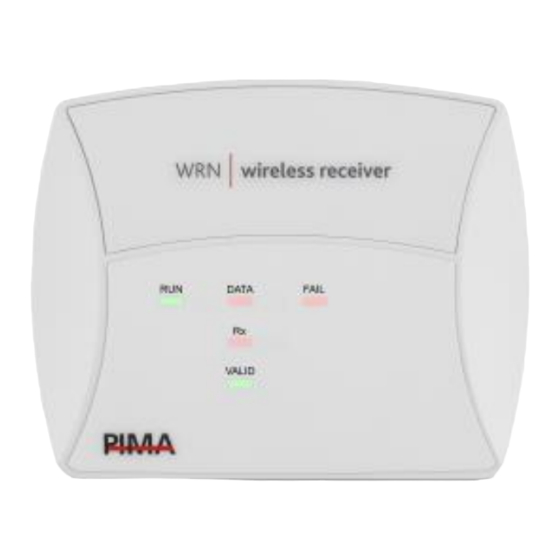

WRN Wireless Receiver
The WRN is a FastLink technology wireless receiver that allows adding wireless capabilities to the Hunter-Pro Series intruder alarm
systems. The FastLink communication is encrypted using true, 128-bit AES encryption for high level of security.
The WRN can transfer signals from Visonic's
remote control to the control panel, over the bus.
The WRN can alert on jamming, and has a back tamper switch.
For enrollment information, see the Hunter-Pro's Installation guide (P/N: 4410281).
Technical specifications
 Frequency (MHz):
WRN143: 433.92
o
WRN187: 868.95
o
 Wireless Zones/Key fobs Support:
Zones: 32, Key fobs: 24
o
 Current Consumption: 60mA
Content of the product package
 WRN Receiver + Bus connector
Mounting guidelines
 Mount the WRN where the wireless signal is high, and it can be connected to the bus.
 Do not mount the receiver inside a metal enclosure or on metalized wallpaper.
 Mount the receiver at least 2 meters away from any electrical device that generates noise.
 The receiver must not be exposed to direct heat sources, direct sunlight or strong artificial light.
 Contact with spraying or dripping water and aggressive liquids must be avoided.
1 www.visonic.com
‫עברית‬
1 Mounting Holes
2 Tamper switch
3 Bus Terminals
4 Bus Cable
5 Hunter-Pro Control Panel
6 Hunter-Pro KEYPAD Terminals
2
3
1 Orificios de montaje
2 Interruptor contra sabotaje (Tamper)
3 Terminales de conexión al Bus
4 Cable de conexión al Bus
5 Panel de Control Hunter-Pro
6
6 Terminales de conexión KEYPAD en el
Hunter-Pro
1 detectors and other peripherals (but not remote controls and sirens), and PIMA's RMC






 This guide
Operating Input Voltage: 9-15VDC
Dimensions: 15 X 12 X 3 cm
Weight: 200gr
CE Compliance
Operating Temperature: -10 to +50 °C
Humidity (Max.): 93% R.H., Non-condensing.
-1-
1 Монтажные отверстия
2 Тампер
3 Клеммная колодка BUS расширителя
4 4-х проводной кабель шины BUS
5 Контрольная панель Hunter-Pro
6 Клеммные контакты "KEYPAD"
панели Hunter-Pro
Bus
Hunter-Pro ‫לוח הבקרה של‬
Hunter-Pro ‫- ב‬ KEYPAD
‫חורי תליה‬ 1
‫מפסק טמפר‬ 2
Bus ‫חיבורי‬ 3
- ‫צמת חוטי ה‬ 4
5
‫חיבורי‬ 6
