User's Manual
Label Printer
Rev. 1.03
Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309
http://www.bixolon.com
V10 CONSUMIBLES S.L.

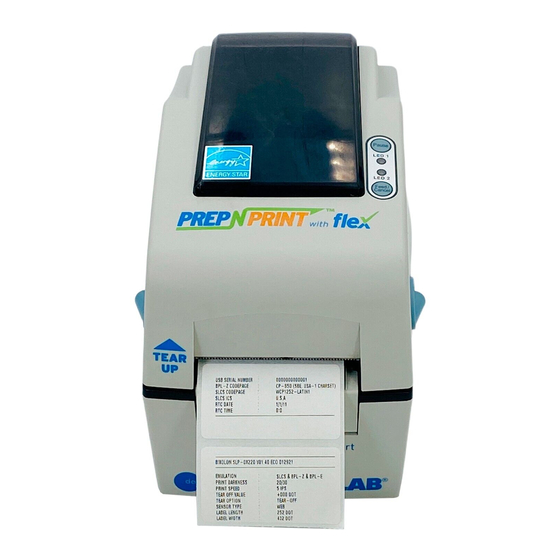

SLP-DX220B
SLP-DX223B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLP-DX220B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIXOLON SLP-DX220B

Summary of Contents for BIXOLON SLP-DX220B

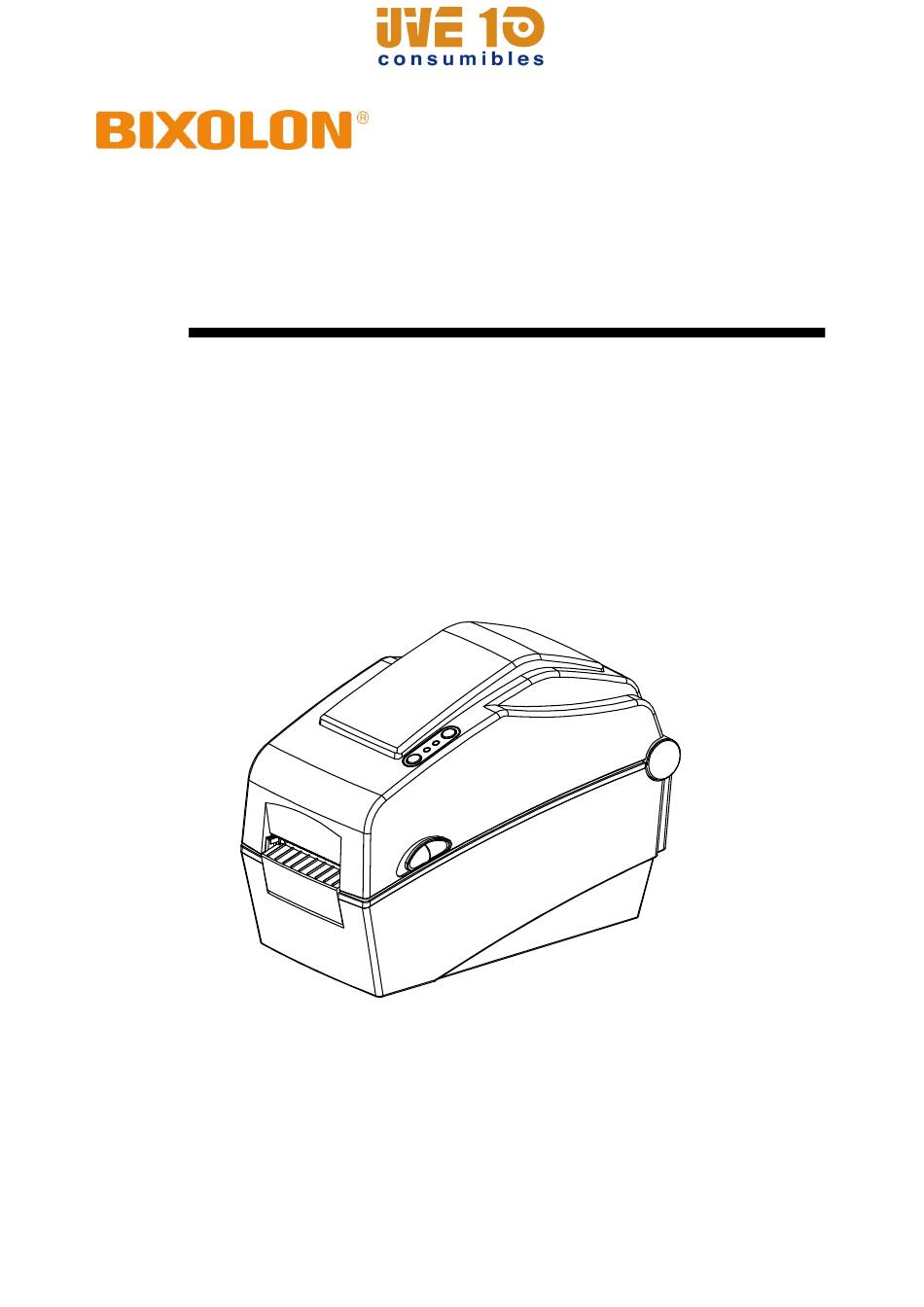

  • Page 1 User's Manual Label Printer SLP-DX220B Rev. 1.03 SLP-DX223B http://www.bixolon.com V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 2: Table Of Contents

    ■ Table of Contents ※ Manual Information & Usage Precautions ..............3 1. Content Confirmation ....................7 2. Product Part Names....................... 8 3. Installation & Usage ..................... 10 3-1 Power Connection ....................10 3-2 Interface Cable Connection ..................11 3-3 Paper Installation ...................... 12 3-4 Button and LED ......................

  • Page 3: Manual Information & Usage Precautions

    This manual provides information on the usage of the Windows PC program that can make labels by adding text, graphics, or barcodes at desired positions. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user’s guide content may be changed without prior notice.
  • Page 4 ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products in one multi-outlet. You must use only the supplied adapter.
  • Page 5 CAUTION Violating following instructions can cause slight wound or damage the appliance. Keep the desiccant out of children’s reach. If you observe a strange smoke, odor or noise from the printer, unplug it before taking following measures. • If not, they may eat it. •...
  • Page 6 ■ Other Precautions The copyright for this user’s guide and various other manuals is property of the BIXOLON Corporation. Any copying or conversion into electronic firm and saving of this material without the express written permission of BIXOLON Corporation. is strictly prohibited.

  • Page 7: Content Confirmation

    1. Content Confirmation The following items should all be contained in the printer package. Contact the dealer from which the purchase was made if any item is damaged and/or missing. SLP-DX220B/DX223B AC Adapter Power Cord Quick Manual ※ Optional items USB Cable V10 CONSUMIBLES S.L.

  • Page 8: Product Part Names

    2. Product Part Names Pause Button Feed Button Cover Lever Printer Head Paper Cover Black-Mark & Notch Sensor Paper Holder Cover-STD Paper Guide & Gap Sensor V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...
  • Page 9 Fan-Fold or External Paper Cover Power Switch USB A-Type Power Jack (WLAN Dongle) USB B-Type Cable Auto Cutter Cover Peel-off (Option) (Option) V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 10: Installation & Usage

    3. Installation & Usage 3-1 Power Connection Connect power to the printer as shown below. Power Switch AC Adapter Power Cord 1) Turn off the printer power switch. 2) Check to see that the AC adapter voltage matches that of the power source. 3) Connect the AC adapter jack to the printer power connector.

  • Page 11: Interface Cable Connection

    3-2 Interface Cable Connection 3-2-1 Bluetooth Model Connect the interface cable as shown below. This printer supports the following communications interface standards. - USB A-Type(WLAN Dongle) - USB B-Type Cable USB A-Type USB B-Type Cable (WLAN Dongle) 1) Turn off the power switch. 2) Connect the communication cable to the printer communication port to be used.

  • Page 12: Paper Installation

    3-3 Paper Installation 1) Open the Paper Cover. 2) Spread the Paper Holder and insert paper roll. 3) Whether the paper label is wound 4) Adjust the paper guide to the width of inwards or outwards, its printing the paper. surface must face up.

  • Page 13: Button And Led

    3-4 Button and LED 3-4-1 Button Operations Printer state Button before Operation procedure Printer operation mode Feed/ Pause operation Cancel • Apply power while pressing the button Self-test Printing Power OFF Press (Hold the button until the Mode. printer starts self-test printing) •...
  • Page 14 3-4-2 LED indicator for various printer statuses LED 1 LED 2 Printer Status Color Status Color Status Print standby Green Green Print standby mode mode Paper jam (gap/black mark is Orange Error mode not recognized) Green Blink Error mode Printer head overheating Blink Error mode Paper Cover open...

  • Page 15: Test Printing

    3-5 Test printing 3-5-1 Printing using Windows driver 1) Install the Windows driver. Refer to the “Windows driver manual” in the CD for the installation procedure. 2) Set the “port” of Windows driver to the appropriate interface to be used. Refer to the “Bluetooth interface user’s manual”...

  • Page 16: Self-Test

    4. Self-Test The self-test checks whether the printer has any problems. - Firmware version, printer configuration information, printing quality checking pattern, and peripheral configuration information, etc. Users cannot perform this procedure if using the printer’s label peel-off option. If the printer does not function properly, contact an authorized dealer. The self-test checks the following;...

  • Page 17: Detailed Features

    5. Detailed features 5-1 Printer setting using utility program Various printer settings can be changed using the utility program (Unified Label Utility-II). Functions that can be used with the utility program are as follows. 1) communication settings Serial, Bluetooth settings can be configured. 2) Basic printer settings Paper size, printing speed and density, paper type can be configured.

  • Page 18: Stand-Alone Configuration Mode

    5-2 Stand-alone Configuration Mode Various modes can be executed using buttons and LED only. 5-2-1 How to start stand-alone configuration mode • The printer mode is set to Printer Setting Mode when the Pause button is pressed for two seconds while in Print Standby Mode. •...

  • Page 19: Pause/Cancel

    5-3 Pause/Cancel During multiple-page print jobs, the Pause and Cancel button can be used to temporarily cease printing and cancel the print job altogether, respectively. Print Pause/Resume Print Cancel/Standby 5-3-1 Pause/Resume Function 1) When printing labels, pressing the Pause button 2) The printer will pause after finishing the current label printing and the status of LED will be as follows.

  • Page 20: Media Calibration

    In this case, run Auto Calibration function so that the printer can recognize the gap. BIXOLON printer provides various media calibration methods in order to accommodate various special paper types.

  • Page 21: Smart Media Detection

    5-5 Smart Media Detection • Printer executes this function when necessary without user input and media configuration can be completed with Smart Media Detection function for most print papers. • Papers with gap or black mark can be identified without separate settings. •...

  • Page 22: Black Mark Sensor Auto Calibration Mode

    5-7 Black Mark Sensor Auto Calibration Mode Use this mode when paper is not detected correctly with Smart Media Detection function. Printer feeds paper and calibrates Black Mark Sensor automatically. The printer will enter error mode if paper detection fails after feeding up to 1 meter of paper. Error mode can be released by opening and closing the cover.

  • Page 23: Manual Calibration Mode

    5-8 Manual Calibration Mode Manual-calibration of media detection can be used when the printer cannot detect a media gap (or black mark) even after auto-calibration has been executed. Users can calibrate sensor parameters in detail by using the utility program provided by the manufacturer.

  • Page 24: Cover Closing Mode

    5-9 Cover Closing Mode 1. About Cover Closing Mode • The printed area may become out of range of paper if the paper is not in the accurate printing position when the cover is opened and closed. • The printer is put into Cover Closing Mode instead of Print Standby Mode when the cover is closed in order to prevent this problem, and it waits for user input.

  • Page 25: Factory Reset

    5-11 Factory Reset This function is used to reset the printer settings to factory default settings. 5-11-1 How to reset the printer 1) Press the Pause button for two seconds during Print Standby Mode. 2) Both LEDs will change to orange color and the printer will be set to Stand-alone Configuration Mode.
  • Page 26 3) Remove one sheet of the label paper, and insert the paper as shown in the image below. Remove 4) Close the label peel-off cover. ( O ) ( X ) 5) Close the Paper Cover until a click sound is heard. 6) Turn the printer off and on.

  • Page 27: Using Fan-Fold Paper

    5-13 Using Fan-Fold Paper Supplying paper to the printer externally is done as follows. 5-13-1 Printer Preparation Remove the rear paper supply cover on the back side of the printer with a knife or other cutting instrument. ※ CAUTION - Take care not to injure the hands and/or any other part of the body when performing this step.

  • Page 28: Auto Cutter (Option)

    5-14 Auto Cutter (Option) For auto paper cutting, products equipped with auto cutter are available. Auto-Cutter can be controlled by command. And default setting can be changed by Unified Label Utility-II. ※ The paper installation method is the same as paper with no auto cutter. V10 CONSUMIBLES S.L.

  • Page 29: Real-Time Clock (Option)

    5-15 Real-Time Clock (Option) The function of the Real-Time Clock option is to print the time and date onto the label. The date and time can be set in the printer by using the Unified Label Utility-II. You can discern a low or depleted battery if printer provides a consistently incorrect time and date.

  • Page 30: Bluetooth Connection (Ios,Android)

    6. Bluetooth Connection (iOS,Android) This Bluetooth connection contents provide information on the connection of Bluetooth- enabled devices with the printer. 6-1 Precautions - To connect the printer with another device via Bluetooth, the devices must be within 100m of one another. The connection is broken if the distance between devices exceeds 100m.
  • Page 31 3) Select the printer to connect. 4) Enter PIN. (default: 0000). SLP-DX220B 5) Select “Pair” or “OK”. 6) Bluetooth communication is available. V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 32: Ssp Mode Setting

    6-3 SSP Mode Setting Secure Simple Pairing (SSP), a feature of the Bluetooth® Core Version 2.1 specification, was created to address two major concerns among the Bluetooth user community: security and simplicity of the pairing process SSP(Secure Simple Pairing) Mode can be enabled by Stand-alone Configuration Mode. 1) Turn on the printer power.

  • Page 33: Ssp Mode Check

    6-4 SSP Mode Check 1) Implement the “Print configuration Info.” by Stand-alone Configuration Mode. 2) SSP mode is enabled if “BT SSP Mode” printed “SSP MODE” at the paper. 3) SSP mode is disabled if “BT SSP Mode” printed “PINCODE MODE” at the paper. V10 CONSUMIBLES S.L.

  • Page 34: Cleaning Head

    7. Cleaning Head Printing quality might be degraded by dust, foreign substance, adhesive substance, or other pollution materials stuck in the printer head or inside the printer. When dirty, clean the print head as follows: ※ CAUTION - Make sure to turn the printer power off prior to cleaning. - As the print head gets very hot during printing, if intending to clean the print head, turn the printer power off and wait approximately 2~3 minute before commencement.

  • Page 35: Cleaning Sensors, Roller Or/And Paper Path

    7-2 Cleaning Sensors, Roller or/and Paper Path 1) Open the paper cover and then remove the paper. 2) Remove any dust or foreign substance using dry cloth or cotton swab. 3) Soak the cloth or cotton swab in alcohol for medical use and use it to remove adhesive foreign substances or other pollution materials.

  • Page 36: Appendix

    SLP-DX220B : 203 dpi (8 dot/mm) Dot Density SLP-DX223B : 300 dpi (11.8 dot/mm) Printer SLP-DX220B : Max. 54 mm (Max. 2.13”) Printing Width SLP-DX223B : Max. 56.9 mm (Max. 2.24”) SLP-DX220B : Max. 152.4 mm/sec (Max. 6ips) Printing Speed SLP-DX223B : Max.
