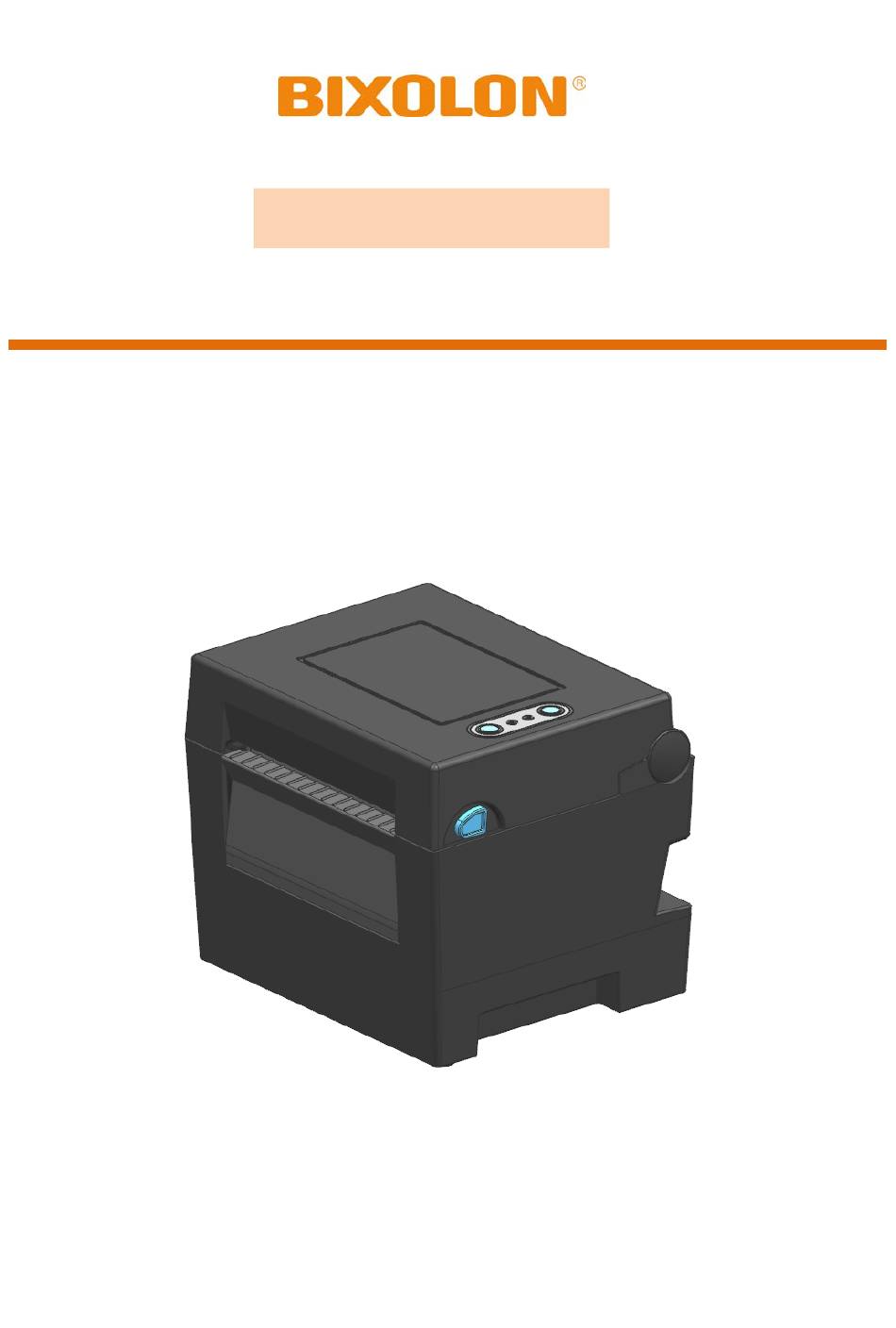

User's Manual
SLP-DL410KV/DL413KV
THERMAL LABEL PRINTER
Ver. 1.00
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLP-DL410KV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIXOLON SLP-DL410KV

Summary of Contents for BIXOLON SLP-DL410KV

  • Page 1 User’s Manual SLP-DL410KV/DL413KV THERMAL LABEL PRINTER Ver. 1.00 http://www.bixolon.com...
  • Page 2 SLP-DL410KV/DL413KV Introduction The SLP-DL410KV printer is designed to be used inside a vehicle. Connect it to the HOST device to print and control. ※ The main features of the printer are as follows 1. SLP-DL410KV : Maximum 127mm/s(Max 5ips) printing speed SLP-DL413KV : Maximum 127mm/s(Max 5ips) printing speed 2.
  • Page 3 SLP-DL410KV/DL413KV Safety Information Warning: Warnings must be heeded carefully in order to prevent serious physical harm. Caution: Cautions must be heeded in order to prevent minor injuries, equipment damage, or data loss. Symbol Information DC (Direct current) Warning, Caution Ethernet - 3 - Ver.

  • Page 4: Table Of Contents

    SLP-DL410KV/DL413KV Table of Contents 1. Content Confirmation ......................8 2. Product Part Names ......................9 3. Installation & Usage ......................11 3-1 Printer Installation Placings ................... 11 3-2 Power Connection ......................12 3-3 Interface ........................14 3-3-1 Standard Interface (USB & USB HOST) ..............15 3-3-2 Optional Interface (USB &...
  • Page 5 SLP-DL410KV/DL413KV Manual Information This user’s guide contains basic information for product usage as well as for emergency measures that may be required. ※ The following separate manuals provide more detailed content on various technological issues and areas. 1. Windows Driver Manual This manual provides information on the installation instructions and main functions of the windows driver.
  • Page 6 SLP-DL410KV/DL413KV Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Warnings must be heeded carefully in order to prevent serious physical harm. Do not use multi-sockets.
  • Page 7 SLP-DL410KV/DL413KV CAUTION Cautions must be heeded in order to prevent minor injuries, equipment damage, or data loss. If you observe a strange smoke, odor or noise from Keep the desiccant out of children’s reach. printer, unplug before taking following measures.

  • Page 8: Content Confirmation

    SLP-DL410KV/DL413KV 1. Content Confirmation The following items should all be contained in the printer package. Contact the dealer from which the purchase was made if any item is damaged or missing. SLP-DL410KV/DL413KV Cigar Jack Cable Quick Manual ※ Optional USB Cable - 8 - Ver.

  • Page 9: Product Part Names

    SLP-DL410KV/DL413KV 2. Product Part Names Pause Button Feed/Cancel Button Cover Lever Printer Head Sensor Media Cover Media Guide Cover STD Roller - 9 - Ver. 1.00...
  • Page 10 SLP-DL410KV/DL413KV Fan-Fold Media Slot Printer Power Switch Printer Power Port USB B-Type Port Power Converter Switch USB A-Type Port Power Converter Port - 10 - Ver. 1.00...

  • Page 11: Installation & Usage

    SLP-DL410KV/DL413KV 3. Installation & Usage 3-1 Printer Installation Placings • Install the printer in a location that meets the following conditions. - Allow sufficient space around the printer for proper ventilation. - Install the printer on a flat and level surface.

  • Page 12: Power Connection

    SLP-DL410KV/DL413KV 3-2 Power Connection • Connect power to the printer as shown below. Printer Power Switch OFF Power Converter Switch OFF Cigar Jack Cable 1) Start the vehicle. ※ The product may be damaged by a voltage surge, so be sure to start the engine before plugging in the cigar jack cable.
  • Page 13 SLP-DL410KV/DL413KV - Only use a cable provided by BIXOLON. BIXOLON shall bear no responsibility for damage caused by using a third-party cable. Caution - When removing the cigar jack cable, make sure you have a firm grasp the printer, then pull horizontally.

  • Page 14: Interface

    SLP-DL410KV/DL413KV 3-3 Interface Shielded cables must be used to prevent radiation and reception of electrical noise. Use the shortest possible communication cable to minimize the detection of electrical noise in the cable. Note - USB B-Type Cable (1.8m or less recommended)

  • Page 15: Standard Interface (Usb & Usb Host)

    SLP-DL410KV/DL413KV 3-3-1 Standard Interface (USB & USB HOST) Connect the interface cable as shown below. This printer supports the following communications interface standards. - USB B-Type Cable - USB A-Type (WLAN Dongle or Bluetooth Dongle) USB A-Type USB B-Type Cable 1) Turn off the power switch.

  • Page 16: Optional Interface (Usb & Usb Host & Ethernet)

    SLP-DL410KV/DL413KV 3-3-2 Optional Interface (USB & USB HOST & Ethernet) Connect the interface cable as shown below. This printer supports the following communications interface standards. - LAN(Ethernet) Cable - USB B-Type Cable - USB A-Type (WLAN Dongle or Bluetooth Dongle)

  • Page 17: Media Installation

    SLP-DL410KV/DL413KV 3-4 Media Installation 1) Pull the cover levers on both sides of the media cover and open the media cover. Media Cover Cover Lever 2) Install the Fan-Fold media in the media 3) Adjust the media guides to the width of slot on the back.
  • Page 18 SLP-DL410KV/DL413KV - When opening or closing the cover, be careful not to pinch your fingers. - Do not open the print head levers while the printer is printing. Caution The printer may be damaged. - Change the media when the printer is not receiving data, or data may be lost.

  • Page 19: Button & Led

    SLP-DL410KV/DL413KV 3-5 Button & LED Pause Button LED 1 LED 2 Feed/Cancel Button 3-5-1 Button Operations Printer state Button before Operation procedure Printer operation mode Feed/ Pause operation Cancel Apply power while pressing the button Power OFF Press (Hold the button until the Self-test Printing Mode.

  • Page 20: Led Indicator For Various Printer Statuses

    SLP-DL410KV/DL413KV 3-5-2 LED Indicator For Various Printer Statuses LED 1 LED 2 Printer Operation Status Color Status Color Color Green Green Print Ready Mode Ready Mode Green Blink Print Cancel Mode Wait For Button Input Print Is Paused Green Blink...

  • Page 21: Self-Test

    SLP-DL410KV/DL413KV 4. Self-test The self-test checks whether the printer has any problems. The self-test checks the following; 1) Make sure that the media has been installed properly. 2) Turn on the power while holding down the Feed/Cancel button. The self-test begins.

  • Page 22: Detailed Features

    SLP-DL410KV/DL413KV 5. Detailed Features 5-1 Stand-alone Configuration Mode 5-1-1 Start Stand-alone Configuration Mode and execute each function 1) The Pause button is pressed for two seconds while in Print Ready Mode. 2) Both LEDs will change to orange color, then release the Pause button The printer will be set to Stand-alone configuration mode.

  • Page 23: Pause/Cancel

    SLP-DL410KV/DL413KV 5-2 Pause/Cancel • During multiple-page print jobs, the Pause Feed/Cancel button can be used to pause printing and cancel the print job altogether, respectively. 5-2-1 Pause/Resume Function 1) When printing, press the Pause button. Pause Button 2) The printer will pause after finishing the...

  • Page 24: Smart Media Detection

    SLP-DL410KV/DL413KV 5-3 Smart Media Detection • Media with gap and black mark can be identified without additional settings. • 3~5 pages of media will be used depending on the types of media. • Smart Media Detection function is executed in the followings cases - When the printer is installed first time, it is executed by pressing the Feed/Cancel button.

  • Page 25: B/M Sensor Auto Calibration Mode

    SLP-DL410KV/DL413KV 5-5 B/M Sensor Auto Calibration Mode • Black mark sensor auto calibration mode is used when the printer does not detect a black mark on the media correctly. Generally a printer is set to detect most types of black mark but sometimes it fails to detect and keep feeding the media without a stop when special media used.

  • Page 26: Media Sensor Manual-Calibration

    Users can calibrate sensor parameters in detail by using the Unified Label Utility-II program provided by the manufacturer. The Unified Label Utility-II can be downloaded from the Internet via the BIXOLON website. (www.bixolon.com) Please make sure the printer is connected and execute the Unified Label Utility-II program.

  • Page 27: Data Dump Mode

    SLP-DL410KV/DL413KV 5-7 Data Dump Mode • This function can be used to diagnose the communication issues when the printer does not work properly. In this mode, the received data are not analyzed and printed, instead they are dumped in hex format without processing.

  • Page 28: Print Standby Mode

    SLP-DL410KV/DL413KV 5-9 Print Standby Mode 5-9-1 About Print Standby Mode The printed area may become out of range of media if the media is not in the accurate printing position when the cover is opened and closed. The printer is put into print standby mode instead of print ready mode when the cover is closed in order to prevent this problem, and it waits for additional user input.

  • Page 29: Media Installation Method Of Peeler (Option) Model

    SLP-DL410KV/DL413KV 5-10 Media Installation Method of Peeler (Option) Model • Use a peeler to separate the printed media from the liner automatically. To use peeler, install media in the following ways: 1) Open the media cover. 2) Open the peeler cover.
  • Page 30 SLP-DL410KV/DL413KV 5) Close the peeler cover until a click sound is heard. ( O ) ( X ) 6) Close the media cover until a click sound is heard. - When opening or closing the cover, be careful not to pinch your fingers.

  • Page 31: When Using Large Media Roll (Option)

    SLP-DL410KV/DL413KV 5-10-1 When using Large media roll (Option) Install the external media supplier(LES-410K) as shown below and adjust media holders to the media with Fix Tool. External Media Supplier (LES-410K) - Do not open the print cover while the printer is operating, otherwise the printer may be damaged.

  • Page 32: Auto Cutter (Option)

    SLP-DL410KV/DL413KV 5-11 Auto Cutter (Option) • For auto media cutting, products equipped with auto cutter are available. Auto-Cutter can be controlled by command. ※ The media installation method is the same as media with no auto cutter. - Please refer CUT(Auto-cutter Enable/Disable) of Program Manual Explanation for more information.

  • Page 33: Rtc(Real-Time Clock / Option)

    SLP-DL410KV/DL413KV 5-12 RTC(Real-Time Clock / Option) With the ability to print time and date on labels, you can change the setting values using the • Unified Label Utility-II. If the printer continuously prints the wrong time and date, the battery must be replaced.

  • Page 34: Printer Maintenance

    SLP-DL410KV/DL413KV 6. Printer Maintenance Printing quality might be degraded by dust, foreign substance, adhesive substance, or other pollution materials stuck in the printer head or inside the printer. When dirty, clean the print head as follows 6-1 Cleaning Printer Head •...

  • Page 35: Cleaning Sensors, Roller Or/And Media Path

    SLP-DL410KV/DL413KV 6-2 Cleaning Sensors, Roller or/and media Path • Be sure to turn the printer off. 1) Open the media cover and remove the media. 2) Remove any dust or foreign substance using dry cloth or cotton swab. 3) Soak the cloth or cotton swab in alcohol for medical use and use it to remove adhesive foreign substances or other pollution materials.

  • Page 36: Appendix

    Description Printing Method Direct Thermal Printing SLP-DL410KV: 203 dpi(8 dot/mm) Dot Density SLP-DL413KV: 300 dpi(11.8 dot/mm) SLP-DL410KV: Max 108 mm(Max. 4.25 inch) Printer Printing Width SLP-DL413KV: Max 105.7 mm(Max. 4.16 inch) SLP-DL410KV: Max. 127 mm/sec(Max. 5ips) Printing Speed SLP-DL413KV: Max. 127 mm/sec(Max. 5ips)
  • Page 37 BIXOLON Co., Ltd. The information contained herein is designed only for use with this BIXOLON product. BIXOLON is not responsible for any direct or indirect damages, arising from or related to use of this information.
  • Page 38 SLP-DL410KV/DL413KV Compliance information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 39 SLP-DL410KV/DL413KV Revision History Ver. Date Page Description 1.00 17.06.20 - 39 - Ver. 1.00...
