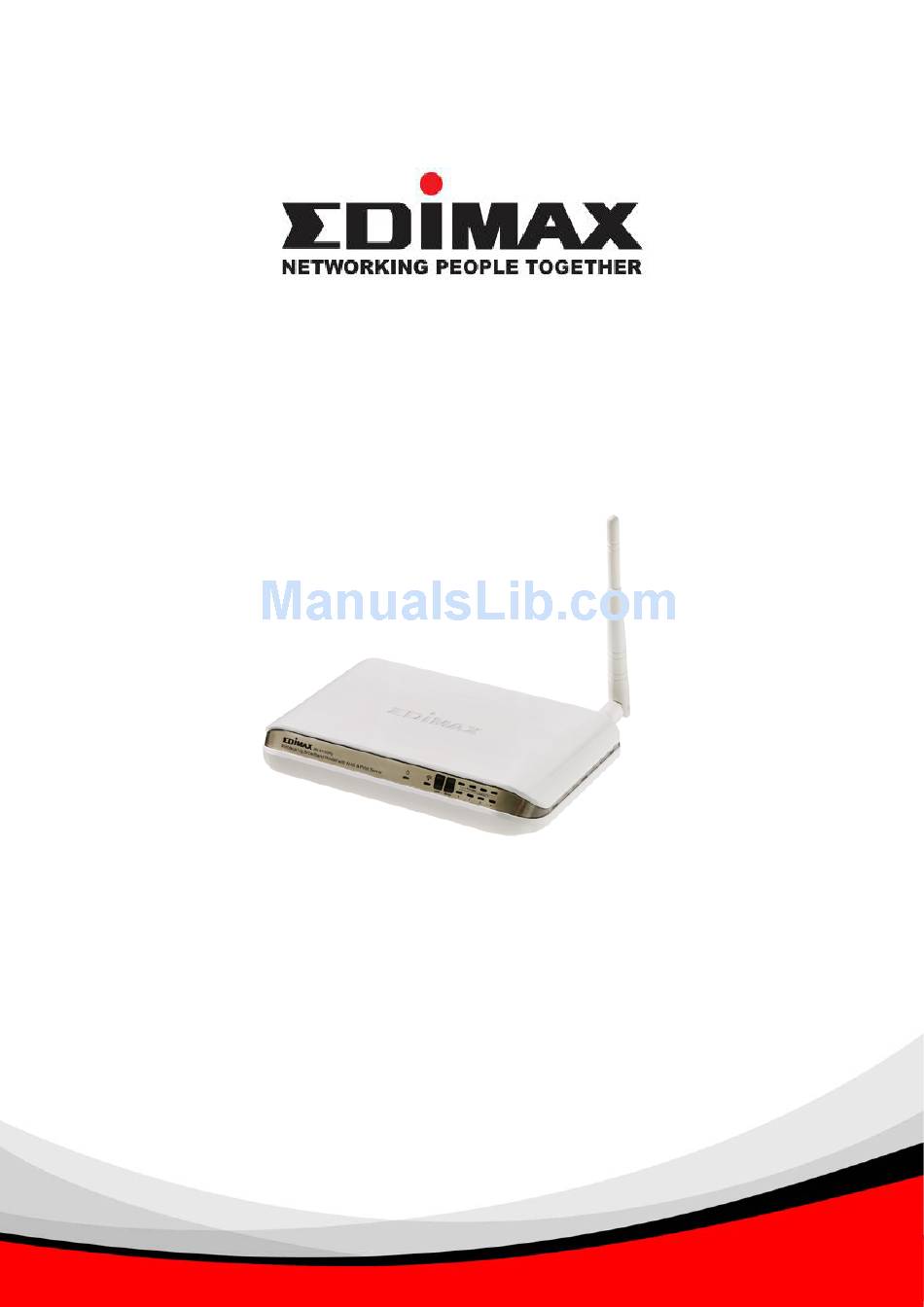

Page 1: Quick Installation Guide
BR-6315SRg Wireless IEEE 802.11b/g Broadband Router with NAS and Print Server Quick Installation Guide Version: 1.0(October, 2007) - Page 2 Č Č ý : Českého průvodce rychlou instalací naleznete na přiloženém CD s ý ovladači : Finden Sie bitte das deutsche S.A.L. beiliegend in der Treiber CD ñ l : Incluido en el CD el G.R.I. en Español. ñ ç : Veuillez trouver l’français G.I.R ci-joint dans le CD ç...
-
Page 3: Table Of Contents
3-1 Change management password ... 13 3-2 Firmware Upgrade... 14 3-3 System Reset... 15 3-4 Wireless Security (For Wireless Router Only) ... 16 3.5 Print Server ... 17 3.6 Web / FTP Server ... 18 3.7 iTunes Server ... 20 n ... - Page 4 Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this Company .
-
Page 5: Product Introduction
Product Introduction Congratulations on purchasing BR-6315SRg IEEE 802.11b/g Wireless Broadband Router. This router is a cost-effective router with 2 USB ports for NAS and Print Server , You can share your files and Printer for user from internet and intranet .This router is a high performance and high-speed device for home and office application. -
Page 6: Introduction
1 Introduction： 1-1 Package Contents Before you starting to use this router, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items： □ Broadband router (main body, 1 pcs) □ Quick installation guide (1 pcs) □... -
Page 7: Back Panel
USB storage device is connected USB storage device is not connected Flashing USB printer is printing Wireless LAN has been activated WLAN Wireless LAN is disabled Flashing Wireless LAN is sending / receiving data 1-3 Back Panel Item Name Description Power Power connector, connects to power adapter The Reset button allows you to do one of two things：... -
Page 8: E T W O R K S E T U P
Instructions for using the router to share the Internet with multiple PCs. (Power on the Modem and the Router.) Connect the Ethernet cable from the router’s WAN port to the LAN port of the modem. Connect another Ethernet cable from the any LAN ports (1~4) on router to the Ethernet socket on the PC. -
Page 9: Step 2 : P C L A N I P C O N F I G U R A T I O N
Configure the PC LAN setting to automatically obtain an IP address from the router by following below steps. Click “Start” in the task bar then select the “Control Panel” to open it. Click “Switch to Classic View” on the left top to see more setting icon…... - Page 10 Find an icon “Network Connection” then Double-Click to open the network connection setting. You will see an icon “Local Area Connection”, click the icon then Right-Click the mouse to open the sub-menu and select the “Properties” for setting the IP.
- Page 11 Select the “Internet Protocol (TCP/IP)” then click the “Properties” Ensure the parameter marked in blue are checked in “Obtain an IP address automatically” and “Obtain DNS server address automatically” then press “OK” to close.
-
Page 12: R O U T E R C O N F I G U R A T I O N - P P P O E
1. Enter the router’s default IP address: “192.168.2.1” into your PC’s web browser and press “enter”. 2. The login screen below will appear. Enter the “User Name” and “Password” and click “OK” to login. The default User name is “admin” and the Password is “1234”, Note: It’s highly recommended to change and save Router's log-in settings in another location. - Page 13 3. The main page will appear, click “Quick Setup” Following example is for “PPPoE” WAN setting. 4. Select ‘(GMT) Greenwich Mean Time: (your country or city) then Click “Next” button.
- Page 14 5. Select “PPPoE xDSL”, the system will move into next step 6. Enter the “User Name” and “Password” that ISP provided and leave the others. (The “Service Name” can be blank) and click “OK” to save the setting then reboot the router 7.
-
Page 15: R O U T E R C O N F I G U R A T I O N - C A B L E M O D E M
1. The following example is for U.K. Click on “Quick Setup”. 2. Select ‘(GMT) Greenwich Mean Time : “London”. Click “Next” button. - Page 16 3. Select “Cable Modem”, the system will move into next step 4. Enter ”Host Name” and “MAC Address”. (The “Host Name” can be blank) The MAC Address is provided by ISP (e.g. NTL) or click “Clone Mac Address” button if you’re using the computer’s MAC Address. Confirm with your ISP about MAC Address used, Click “OK”...
-
Page 17: Advanced Setup
3 Advanced Setup 3-1 Change management password Default password of this router is 1234, and it’s displayed on the login prompt when accessed from web browser. There’s a security risk if you don’t change the default password, since everyone can see it. To change password, please follow the following instructions: Please click ‘System’... -
Page 18: Firmware Upgrade
3-2 Firmware Upgrade The system software used by this router is called as ‘firmware’, just like any applications on your computer, when you replace the old application with a new one, your computer will be equipped with new function. You can also use this firmware upgrade function to add new functions to your router, even fix the bugs of this router. -
Page 19: System Reset
After a firmware upgrade file is selected, click ‘Apply’ button, and the router will start firmware upgrade procedure automatically. The procedure may take several minutes, please be patient. NOTE: Never interrupt the upgrade procedure by closing the web browser or physically disconnect your computer from router. -
Page 20: Wireless Security (For Wireless Router Only)
Please select an encryption method from ‘Encryption’ dropdown menu, there are four options. And we will inform you about WPA function. When you select this mode, the wireless router will use WPA encryption, and the following setup menu will be shown on your web browser: Here are descriptions of every setup items：... -
Page 21: Print Server
Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 50 seconds while router is rebooting). NOTE: Some wireless clients (especially those manufactured before year 2003) only support WEP or WPA (TKIA) cipher. -
Page 22: Web / Ftp Server
Parameters Enable Print Enable/disable USB print server. The print server function is Server disabled by default to improve the performance of NAS function. Enable to support the Internet Printing Protocols. Enable to support the Local Printing Remote Protocols. Print Name of USB It is the port name of the printer connected to USB port 1. - Page 23 Parameters Users setup You can add/edit users of File/FTP server. You can add/edit the name of file server, shared folders and File Server setup sharing policies of files that will be shared via Network Neighborhood. You can add/edit FTP folders and configure some advanced FTP Server setup settings for FTP server.
-
Page 24: Itunes Server
3.7 iTunes Server iTunes is a popular and powerful multi-media player, and supports streaming media. If the USB mass storage device you attached to this broadband router is loaded with media files supported by iTunes, you can use the iTunes server function of this broadband router to let your USB disk become a media server, and you can share these files with other computers or iTunes-compatible media players! Parameters... - Page 25 folder on the USB mass storage device attached to this broadband router. Advanced Click this button to set advanced settings for this iTunes server. Setting Detailed descriptions are listed below. Click this button to get latest information of iTunes server and Refresh users listed above.
- Page 26 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
