  • Page 1 All manuals and user guides at all-guides.com...
  • Page 2 All manuals and user guides at all-guides.com (vedi figura). vedi figura (vedi figura) (vedi pagina a fianco). (vedi figura);...
  • Page 3 All manuals and user guides at all-guides.com vedi figura (vedi a fianco); lavaggio vedi a asciugatura fianco...
  • Page 4 All manuals and user guides at all-guides.com (vedi figure sottostanti) N° 2 Supporti cerniera N° 2 cerniere Fig. 1 Fig. 2 18 mm N° 1 Magnete N° 1 Riscontro magnete Fig. 3 Fig. 4 N° 1 Tassello in gomma N° 4 Distanziali Fig.
  • Page 5 All manuals and user guides at all-guides.com Fig. 8 Fig. 9 (fig. 10) fig. 2 Fig. 10 fig. 8 (fig. 9) (fig. 11): (fig. 8): (fig. 6). fig. 7. Importante: chiudere la parte inferiore della facciata con fig. 12 lo zoccolo a battuta sul pavimento. Fig.
  • Page 6 All manuals and user guides at all-guides.com Cassetto dei detersivi Cassetto dei detersivi: vedi “Detersivi e biancheria” (vedi pagina a fianco). (vedi pagina a fianco) N.B. vedi “Personalizzazioni” vedi “Personalizzazioni”...
  • Page 7 All manuals and user guides at all-guides.com vedi “Personalizzazioni” Nota: Nota: N.B.: vedi “Anomalie e rimedi” vedi “Personalizzazioni” vedi “Personalizzazioni” vedi “Detersivi e biancheria”...
  • Page 8 All manuals and user guides at all-guides.com Velocità Detersivi Temp. Carico max. Asciu- Durata Descrizione del Programma max. max. (giri al gatura ciclo Candeg- Lavag- Ammorbi- (°C) (Kg) minuto) gina dente SANITARY: SANITARY (1): BUONANOTTE: BABY: SETA/TENDE: LANA: COTONE: COTONE (2): COTONE COLORATI (3): SINTETICI: SINTETICI:...
  • Page 9 All manuals and user guides at all-guides.com Tabella programmi Tipo di Tipo di carico Carico Armadio Stampella Stiro tessuto max (Kg) Stiro Stampella Armadio (vedi tabella accan- “Solo l’asciugatura” Solo asciugatura 11 12 13 N.B.:...
  • Page 10 All manuals and user guides at all-guides.com...
  • Page 11 All manuals and user guides at all-guides.com...
  • Page 12 All manuals and user guides at all-guides.com vedi figura : vedi figura...
  • Page 13 All manuals and user guides at all-guides.com vedi “Assistenza” vedi “Personalizzazioni” vedi “Installazione” . vedi “Installazione” . vedi “Installazione” . vedi “Installazione” . vedi “Installazione” . vedi “Installazione” . vedi “Installazione” . vedi “Manutenzione e cura” . vedi “Installazione” . vedi “Personalizzazioni”...
  • Page 14 All manuals and user guides at all-guides.com • vedi “Anomalie e rimedi”...

  • Page 15: Table Of Contents

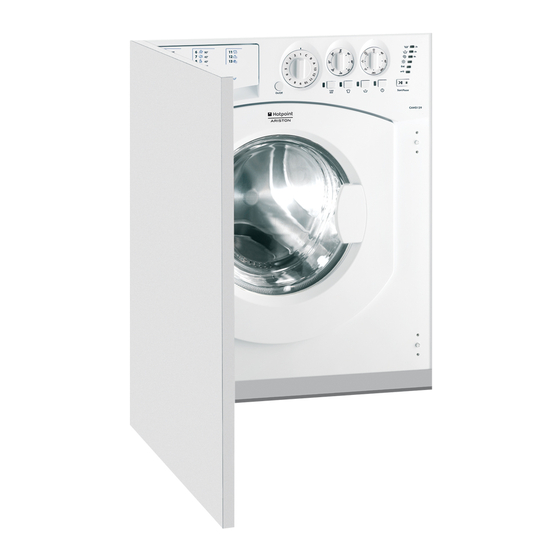

    Instructions for use WASHER DRYER Contents Installation, 16-17-18-19 English Description of the washer-dryer and starting a wash cycle, 20-21 Wash cycles, 22 Personalisation, 23 CAWD 129 Detergents and laundry, 24 Precautions and tips, 25 Care and maintenance, 26 Troubleshooting, 27 Service, 28...

  • Page 16: Installation

    All manuals and user guides at all-guides.com Installation Connecting the electricity and water supplies Unpacking and levelling Connecting the water inlet hose Unpacking (see figure). see figure (see figure) (see next page). Levelling see figure...
  • Page 17 All manuals and user guides at all-guides.com Connecting the drain hose The first wash cycle see figure Technical data Model Electrical connections Dimensions Capacity Electrical connections Water (see opposite); connections Spin speed (see opposite); Wash: Energy rated programmes Drying: according to EN 50229...
  • Page 18 All manuals and user guides at all-guides.com Instructions for the fitter Door Mounting Accessories Mounting the wooden panel onto the door and inserting the machine into cabinets: (see figures below). N° 2 Hinge Supports N° 2 Hinges 18 mm Fig. 1 Fig.
  • Page 19 All manuals and user guides at all-guides.com Using the Drilling Template. Fig. 8 Fig. 9 Mounding the Parts onto the Wooden Panel (Door). Accessories provided for the height adjustment. (fig. 10) Mounting the Panel into the machine. fig. 2 Fig. 10 Adjusting the appliance height.

  • Page 20: Description Of The Washer-Dryer And Starting A Wash Cycle

    All manuals and user guides at all-guides.com Description of the washer-dryer and starting a wash cycle Control panel WASH CYCLE PROGRESS/ DELAY TIMER DRYING DOOR ON/OFF LOCKED TEMPERATURE START/PAUSE Detergent dispenser drawer FUNCTION WASH CYCLE Detergent dispenser drawer: WASH CYCLE PROGRESS/DELAY TIMER see “Detergents and laundry”...
  • Page 21 All manuals and user guides at all-guides.com Indicator lights Wash cycle phase indicator lights Delayed start “Personalisation” Note: Note: Function buttons and corresponding indicator lights Door locked indicator light N.B. “Troubleshooting” Starting a wash cycle see “Personalisation”). (see “Personalisation”). see “Detergents and laundry”).

  • Page 22: Wash Cycles

    All manuals and user guides at all-guides.com Wash cycles Table of wash cycles Detergents Max. Max. Cycle Description of the wash cycle temp. speed Drying load duration Fabric (°C) (rpm) (kg) Bleach Wash softener Specials cycles Sanitizing cycle: Sanitizing cycle (1): Goodnigt cycle: Baby cycle: Silk/Curtains:...

  • Page 23: Personalisation

    All manuals and user guides at all-guides.com Personalisation Setting the temperature Table of wash cycles Table of Drying times (guideline values) Setting the drying cycle Fabric Load type Max. Cupboard Henger Iron type load (kg) Iron Hanger Cupboard (see adjacent table) Drying only N.B: Drying only...

  • Page 24: Detergents And Laundry

    All manuals and user guides at all-guides.com Detergents and laundry Detergent dispenser drawer How much does your laundry weigh? Garments requiring special care Silk: Curtains: Wool: compartment 1: Detergent for the wash cycle (powder or liquid) compartment 2: Additives (fabric softeners, etc.) Load balancing system extra compartment 3: Bleach Bleach cycle...

  • Page 25: Precautions And Tips

    All manuals and user guides at all-guides.com Precautions and tips General safety Opening the porthole door manually Disposal...

  • Page 26: Care And Maintenance

    All manuals and user guides at all-guides.com Care and maintenance Cutting off the water and electricity supplies see figure : Cleaning the washer-dryer Checking the water inlet hose Cleaning the detergent dispenser drawer see figure Caring for the door and drum of your appliance Cleaning the pump...

  • Page 27: Troubleshooting

    All manuals and user guides at all-guides.com Troubleshooting see “Assistance” Problem: Possible causes / Solutions: The washer-dryer does not switch on. The wash cycle does not start. see “Personalisation”). The washer-dryer does not take in water (the indicator light for the first wash cycle stage flashes rapidly).

  • Page 28: Service

    All manuals and user guides at all-guides.com Service Before calling for Assistance: • “Troubleshooting” Have the following information to hand:...
  • Page 29 All manuals and user guides at all-guides.com...
  • Page 30 All manuals and user guides at all-guides.com (voir figure). voir figure (voir figure) (voir page ci-contre). (voir figure)
  • Page 31 All manuals and user guides at all-guides.com voir figure (voir ci-contre); lavage: séchage: voir ci-contre...
  • Page 32 All manuals and user guides at all-guides.com (voir figures ci-dessous). N°2 Supports charnière N°2 Charnière Fig. 1 Fig. 2 18 mm N°1 Aimant N°1 Butoir aimant Fig. 3 Fig. 4 N°1 Cheville en caoutchouc N°4 Cales Fig. 5 Fig. 4/B fig.
  • Page 33 All manuals and user guides at all-guides.com Fig. 8 Fig. 9 (fig. 10) fig. 2 Fig. 10 fig. 8 (fig. 11) fig. 9 (fig. 8) (fig. 6) fig. 7 Important: fermez la partie inférieure de la façade, la base touchant au sol. fig.
  • Page 34 All manuals and user guides at all-guides.com Tiroir à produits lessiviels Tiroir à produits lessiviels: voir “Produits lessiviels et linge”). (voir page ci-contre). (voir page ci-contre) N.B. voir “Personnalisations”). voir “Personnalisations”).
  • Page 35 All manuals and user guides at all-guides.com voir “Personnalisations”) Remarque: N.B: voir “Anomalies et remèdes” voir “Personnalisations”). (voir “Personnalisations”). voir “Produits lessiviels et linge”).
  • Page 36 All manuals and user guides at all-guides.com Vitesse Produits lessiviels Temp. Charg- maxi Durée Description du Programme maxi. Séchage e maxi (tours cycle Assou (°C) (Kg) Javel Lavage minute) plissant Anti-bactérien: Anti-bactérien (1): Bonne Nuit: Bébé: Soie/Voilages: Laine: Coton: Coton (2): Coton (3): Synthétique: Synthétique:...
  • Page 37 All manuals and user guides at all-guides.com Tableau des programmes Type de Type de charge Charge Armoire Sur Ceintre Repassage tissu max. (kg) Repassage Sur Ceintre Armoire (voir tableau temps de Séchage) Séchage seulement N.B: Séchage seulement 11-12-13 N.B:...
  • Page 38 All manuals and user guides at all-guides.com...
  • Page 39 All manuals and user guides at all-guides.com...
  • Page 40 All manuals and user guides at all-guides.com voir figure : voir figure...
  • Page 41 All manuals and user guides at all-guides.com voir “Assistance” voir “Personnalisations”). voir “Installation”) voir “Installation”) “Personnalisations”). voir “Installation ”) voir “Installation”) voir “Installation”) voir “Installation”) voir “Installation”) voir “Entretien et soin”) voir “Installation”)
  • Page 42 All manuals and user guides at all-guides.com “Anomalies et Remèdes”...
  • Page 43 All manuals and user guides at all-guides.com...
  • Page 44 All manuals and user guides at all-guides.com...
  • Page 45 All manuals and user guides at all-guides.com Waschen: Trocknen:...
  • Page 46 All manuals and user guides at all-guides.com N° 2 Scharnierhalterung N° 2 Scharnier Abb. 1 Abb. 2 18 mm N° 1 Magnetanschlag N° 1 Magnet Abb. 3 Abb. 4 N° 1 Gummidübel N° 4 Distanzstücke Abb. 5 Abb. 4/B Tu r sei...
  • Page 47 All manuals and user guides at all-guides.com Abb. 8 Abb. 9 Abb. 10 Wichtig: Abb. 6 Abb. 7 Abb. 11 Abb. 12...
  • Page 48 All manuals and user guides at all-guides.com Waschmittelschublade Waschmittelschublade:...
  • Page 49 All manuals and user guides at all-guides.com Anmerkung:...
  • Page 50 All manuals and user guides at all-guides.com Max. Max. Waschmittel Schleuder- Max. Tempe- Program- Beschreibung des Programms Geschwin- Trocknen Beladungs- ratur mdauer Bleich- Haupt- Weich- digkeit menge (kg) (°C) mittel wäsche spüler (U/min) Hygiene zyklus: Hygiene zyklus (1): Gute nacht: Baby zyklus: Seide/Gardinen: Wolle:...
  • Page 51 All manuals and user guides at all-guides.com Gewebe- Art der Ladung Max. Schrank Kleider- Bügel Lade- bügel menge (kg) Nur Trocknen N.B: Nur Trocknen 11-12-13...
  • Page 52 All manuals and user guides at all-guides.com...
  • Page 53 All manuals and user guides at all-guides.com...
  • Page 54 All manuals and user guides at all-guides.com...
  • Page 55 All manuals and user guides at all-guides.com...
  • Page 56 All manuals and user guides at all-guides.com 195069191.01 04/2008 - Xerox Business Services...
