Contents

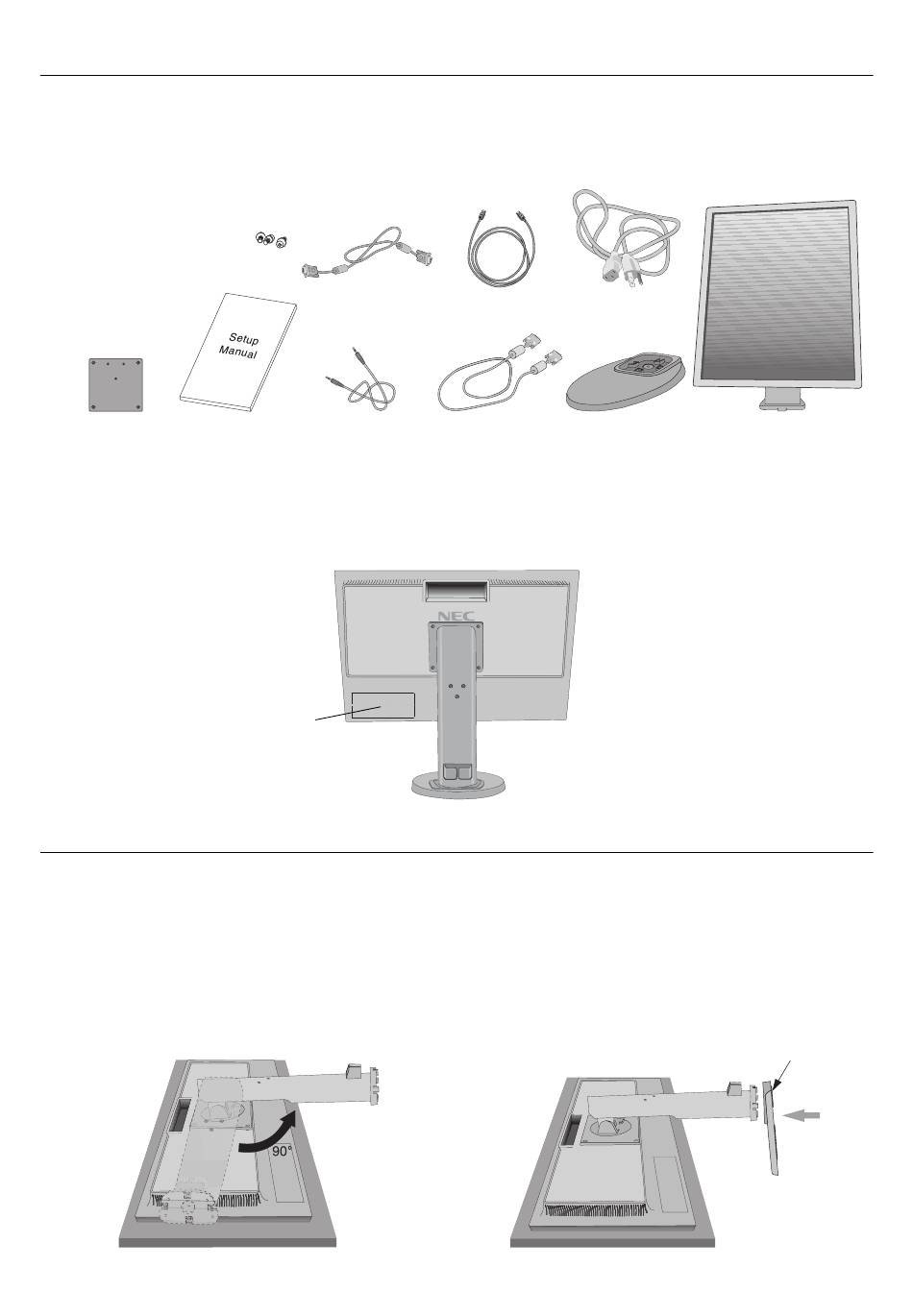

Your new NEC LCD monitor box* should contain the following:
•
LCD monitor with tilt base
•
Power Cord*
1
•
Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male)*
•
Video Signal Cable (DVI-D to DVI-D cable)*
•
Video Signal Cable (DisplayPort cable)*
•
Setup Manual
•
Base Stand
•
Audio cable*
2,
*
4
3
•
VESA plate*
3
•
Screws*
3
VESA plate*
Setup Manual
*
Remember to save your original box and packing material to transport or ship the monitor.
1
*
Type of power cord included will depend on the where the LCD monitor is to be shipped.
*
2
E233WM only.
*
3
For North America version.
4
*
For Europe version.
The model name is on the label.
Rating label on the
back of the display.
Quick Start
To attach the Base to the LCD stand:
1. Place monitor face down on a non-abrasive surface (Figure 1).
NOTE:
Handle with care when monitor facing down, for avoiding damage to the front control keys.
2. Please pivot base 90 degrees as shown in Figure 1.
NOTE:
Handle with care when pulling the stand.
3. Attach the base stand to LCD monitor and properly lock screw of base stand bottom (Figure 2).
NOTE:
Reverse this procedure if you need to re-pack the monitor.
4
3
Screws*
3
Mini D-SUB 15 pin to
Mini D-SUB 15 pin*
Audio Cable*
Figure 1
4
DisplayPort cable*
3
4
2,
4
*
DVI-D to DVI-D
4
cable*
English-6
Power Cord*
1
Base Stand
LCD monitor
(Base Stand not connected)
Figure 2
Screw
