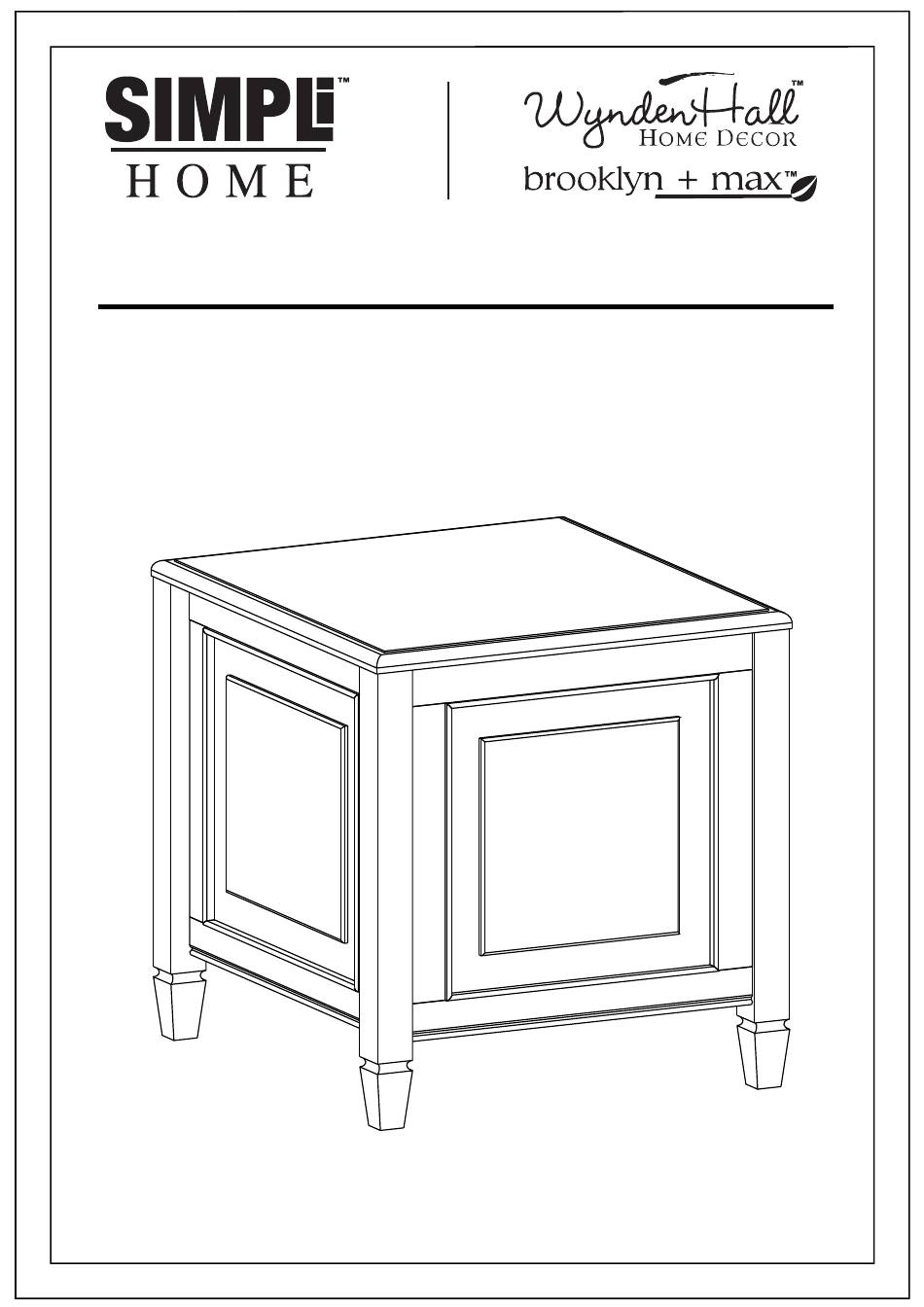

- Page 1 CONNAUGHT HAMPSHIRE SOMERSET END/SIDE TABLE WITH TRAY MODEL # 3AXCCON-03 1/16...
- Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/16...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Pre-Assembly Information
MODEL # 3AXCCON-03 PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION SIDE QTY 1 QTY 2 FRONT BACK QTY 1 QTY 1 TRAY BOTTOM PANEL QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 5 pm EST) 4/16... -
Page 5: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # 3AXCCON-03 HARDWARE DESCRIPTION ALLEN KEY SCREW WOOD DOWEL CAM LOCK PIN M6 X 30 mm 8 X 30 mm CAM LOCK QTY 8 QTY 8 QTY 8 SETS PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW M4 X 15 mm M3.5 X 15 mm ALLEN KEY QTY 8... - Page 6 COMPONENTS – KEY DIAGRAM MODEL # 3AXCCON-03 6/16...
- Page 7 ASSEMBLY MODEL # 3AXCCON-03 STEP 1 1. Insert 4 Dowels 3 into pre-drilled holes on each Side 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed 3. Attach 4 Cam Lock Pins 2 to Side B into guide holes. 4.
- Page 8 ASSEMBLY MODEL # 3AXCCON-03 STEP 2 1. Attach Bottom Panel E to Front C & Back D by sliding on the gap on the long rail on Front C & Back D . 8/16...
- Page 9 ASSEMBLY MODEL # 3AXCCON-03 STEP 3 1. Repeat Step-1 for the second Side B . 9/16...
- Page 10 ASSEMBLY MODEL # 3AXCCON-03 STEP 5 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Top A to 2 hinges on Back D using Phillips Screws 6 ( using guide holes underneath of top ). 2. Use phillips screwdriver to tighten Screws. Do not over-tighten. 10/16...
- Page 11 ASSEMBLY MODEL # 3AXCCON-03 STEP 6 Lid Support-Left NOTE: The screwdriver is not included in the hardware pack. Lid Support-Right 1. Attach ( left and right ) Lid Supports 9 into pre-drilled holes on Sides B and Top A using Phillips Screws Round Heads 5 2.
- Page 12 ASSEMBLY MODEL # 3AXCCON-03 STEP 7 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnet Plates 8 to bottom corner of Top A using Phillips Screws 7 into guide holes on Top A . 2. Attach Magnet 8 to Sides B using Phillips Screws 7 into guide holes on Sides B . 3.
- Page 13 ASSEMBLY MODEL # 3AXCCON-03 STEP 7 1. Insert Tray F into slots on the bar of Front C & Back D . 13/16...
-
Page 14: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 15 Question, problems, missing parts? Before returning please email Customer Support at simpli-home.com/customer-support or call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings 15/16...
- Page 16 Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included)
