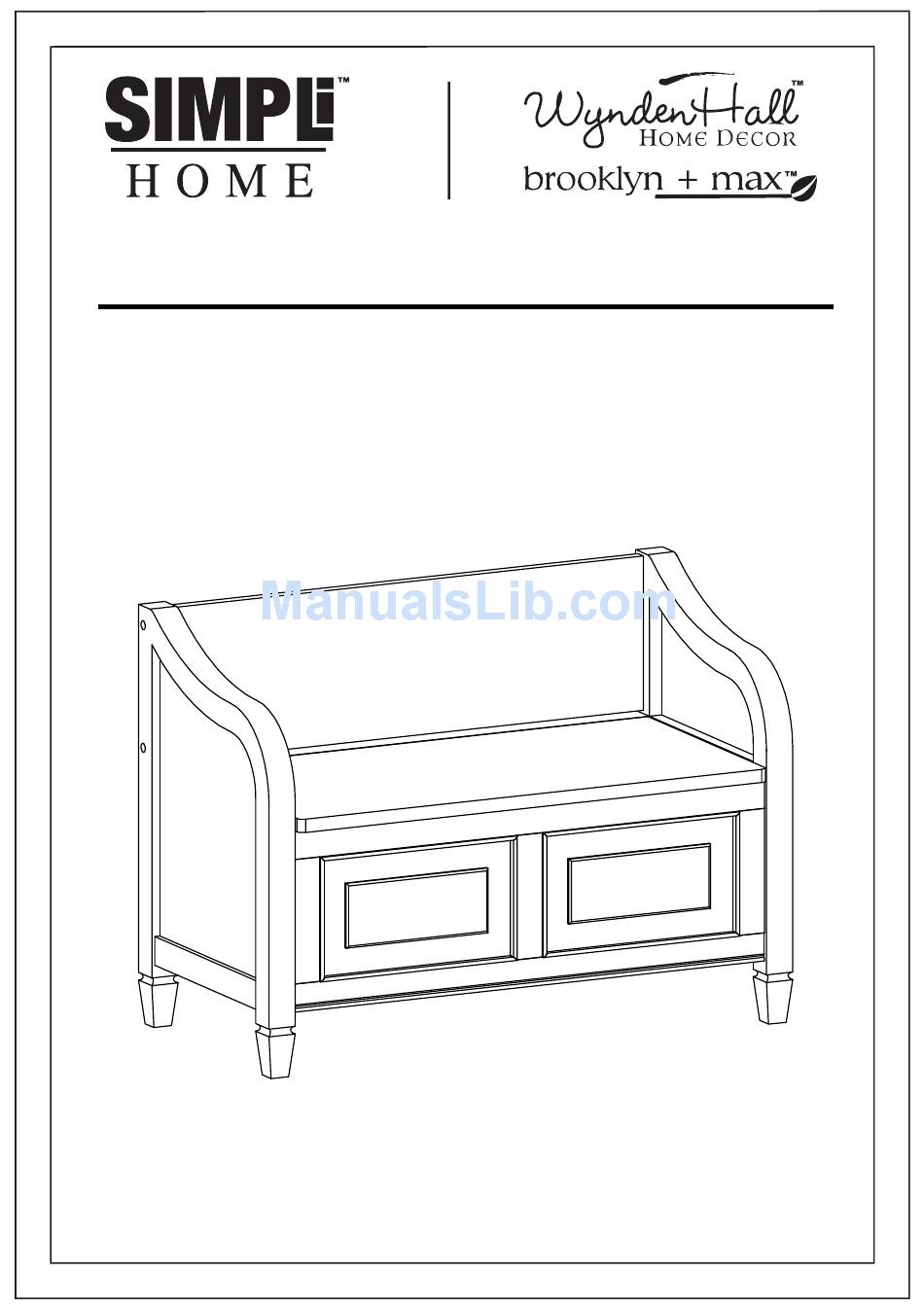

- Page 1 CONNAUGHT / HAMPSHIRE / SOMERSET ENTRYWAY STORAGE BENCH MODEL # 3AXCCON-09 1/15...
- Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/15...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Pre-Assembly Information
MODEL # 3AXCCON-09 PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION SIDE SEAT QTY 1 PAIR QTY 1 BACK FRONT QTY 1 QTY 1 DIVIDER BACKREST QTY 1 QTY 1 BOTTOM PANEL BOTTOM SUPPORT LEG QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. -
Page 5: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # 3AXCCON-09 HARDWARE DESCRIPTION CAM LOCK PIN ALLEN KEY SCREW WOOD DOWEL M6 x 30 mm CAM LOCK 8 X 30 mm QTY 4 SET QTY 12 QTY 8 PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW M4 X 15 mm... -
Page 6: Model # 3Axccon
COMPONENTS – KEY DIAGRAM MODEL # 3AXCCON-09 6/15... - Page 7 ASSEMBLY MODEL # 3AXCCON-09 STEP 1 1. Attach 2 Cam Lock Pins 2 to Back D into guide holes. 2. Align and insert Cam Lock Pins on Back D into pre-drilled holes on Dividers E . Note: please pay close attention to the location of the 2 small guide holes which accommodate the lid support.
- Page 8 ASSEMBLY MODEL # 3AXCCON-09 STEP 2 1. Attach Bottom Panel G to Divider E & Back D by sliding on the gap between Divider E & the long rail on Back D . 8/15...
- Page 9 ASSEMBLY MODEL # 3AXCCON-09 STEP 3 1. Attach 2 Cam Lock Pins 2 to Front C into guide holes. 2. Align and insert Cam Lock Pins on Front C into pre-drilled holes on Dividers E . 3. Place 2 Cam Locks 2 into pre-drilled holes on Dividers E .
- Page 10 ASSEMBLY MODEL # 3AXCCON-09 STEP 4 1. Insert 4 Dowels 3 into each Side B at specified location. 2. Align pre-drilled holes on side bars of Front C & Back D with Dowel 3 on Sides B . 3. Attach Front C & Back D to Sides B using 12 Allen Key Screws 1 through pre- drilled holes ( 6 Screws / each Side B ).
- Page 11 ASSEMBLY MODEL # 3AXCCON-09 STEP 5 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Bottom Support Leg H into pre-drilled holes of Bottom Panel G using 4 Phillips Screws 7 . 2. Use Phillips screwdriver to tighten Screws. Do not over-tighten.
- Page 12 ASSEMBLY MODEL # 3AXCCON-09 STEP 7 1. Attach Lid Supports 9 into pre-drilled holes of Seat B and Divider E using Phillips Screws Round Head 5 . 2. Use phillips screwdriver to tighten Screws . Do not over-tighten. STEP 8 1.
-
Page 13: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 14 Question, problems, missing parts? Before returning please email Customer Support at simpli-home.com/customer-support or call Customer Service at 1-866-0518-0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings 14/15...
- Page 15 Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included)
