ASSEMBLY INSTRUCTIONS
ITEM NO: DPR500RDT/ DPR300RCDB

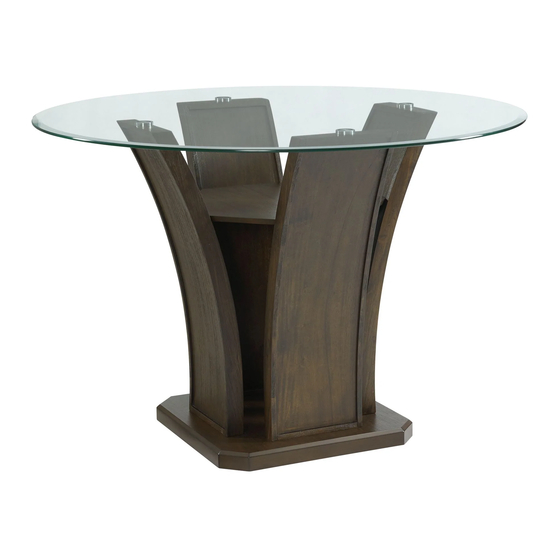

DESCRIPTION: ROUND COUNTER HEIGHT TABLE - GEMINI GRAY
Description
Quantity
Table Top
1 Pc
Leg
4 Pcs
Bottom Shelf
1 Pc
1 Pc
Upper Shelf
E
G
F
PAGE 1 0F 2
Sketch
No.
E
F
G
H
I
H
C
Description
Size
Washer
5/16"
Spring washer
5/16"
Bolt
5/16"x45mm
M4
Allen key
M4x75mm
Allen key
H
G
F
E
A
Leveler
MADE IN VIET NAM
Quantity
12 Pcs
12 Pcs
12 Pcs
1 Pc
1 Pc
