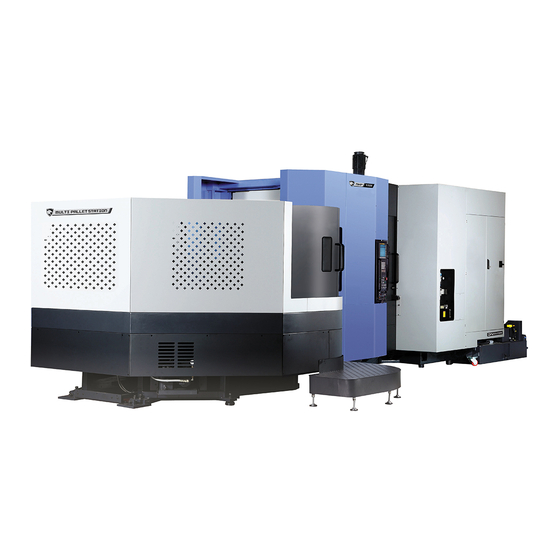

Doosan NHM Series Manual
  1. Manuals
  2. Brands
  3. Doosan Manuals
  4. Power Tool
  5. NHM Series
  6. Manual

Doosan NHM Series Manual

Hide thumbs Also See for NHM Series:

Advertisement

Quick Links

Machine Tools
APC Recovery
(NHM/NHP Series)

Advertisement

loading
Need help?

Need help?

Do you have a question about the NHM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Doosan NHM Series

Summary of Contents for Doosan NHM Series

  • Page 1 Machine Tools APC Recovery (NHM/NHP Series)

  • Page 3: Table Of Contents

    NHM/NHP Series NHM/NHPAPCE2C Table Of Contents 1. APC Manual Operating Recovery Method ............3 2. Pallet Change (M60) Sequence Table ..............5 3. Conditions of each sequence during Manual Step Operation ........ 7 4. APC SERVO AMP(A81) Machine Home Setting ........... 9 5.
  • Page 4 NHM/NHP Series NHM/NHPAPCE2C ◈ APC Recovery (NHM / NHP) NHP/NHM Series APC Set-Up Station APC Arm Servo Motor...

  • Page 5: Apc Manual Operating Recovery Method

    NHM/NHP Series NHM/NHPAPCE2C 1. APC Manual Operating Recovery Method ※ If APC is stopped by any problems(Interference by WORK PEICE or FIXTURE or TOOL , PEMERGENCY STOP, POWER OFF) while changing pallet(M60, M61, M62), you have to manually operate to return APC to correct Position. 1) Remove the error cause of STOP and “Power On”...
  • Page 6 NHM/NHP Series NHM/NHPAPCE2C 4) Press “CUSTOM1” Key on NC FUNCTION Key. ⇒“CUSTOM1 WINDOW” Screen will be Displayed. 5) Press Soft Key “PMC-SW”. ⇒ ATC, APC Manual Screen will be displayed. 6) In ATC, APC Manual Screen, Press “APC-ON” to select APC. ⇒...

  • Page 7: Pallet Change (M60) Sequence Table

    NHM/NHP Series NHM/NHPAPCE2C 2. Pallet Change (M60) Sequence Table Start (M60 Command) ▶ Y,Z Axis return to 2nd Ref. Position Y,Z-Axis 2nd Ref. Position Command Program : G00 G91 G30 Y0.Z0. ; ▪ Y,Z-Axis 2 Ref. Y,Z Axis return to 2nd Ref. Position Position ? Program : G00 G91 G30 Y0.Z0.
  • Page 8 NHM/NHP Series NHM/NHPAPCE2C “A” Go To “1” Pallet 1 Position ? ▪ OUTPUT : Y10.0(POSI0.R.) APC SERVO POS0 APC 180 CW Rotation ▪ COMPLETE : X16.1(PPSO2.M) PS01 ★ AL 2337 APC Changer 180 CW/CCW Alarm” ON APC 180 CW Check : X16.0(PPSO1.M) APC SERVO POS0 INPUT Rotation End O.K ? X16.1(PPSO2.M) APC SERVO POS1 INPUT “2”...

  • Page 9: Conditions Of Each Sequence During Manual Step Operation

    NHM/NHP Series NHM/NHPAPCE2C 3. Conditions of each sequence during Manual Step Operation ① Pallet Unclamp (K33.2) ▪ OUTPUT SIGNAL : Y5.5(PAUC.R) = 1 ▪ COMPLETE SIGNAL : X11.4(RPTCL.M) = 0 1) Select Manual Mode by the mode selector switch on Main O.P PANEL (“Jog” or “Handle”...
  • Page 10 NHM/NHP Series NHM/NHPAPCE2C 3) APC 180CW Position (X16.1 = 0, X16.2 = 1 or K32.4 = 1) 4) APC ARM Up (X12.0 = 1) 5) Select Manual Mode by the mode selector switch on Main O.P PANEL (“Jog” or “Handle” Mode) 6) APC Manual Mode (X7.2 = 1) 7) Select “APC ARM Rotation”...

  • Page 11: Apc Servo Amp(A81) Machine Home Setting

    NHM/NHP Series NHM/NHPAPCE2C 4. APC SERVO AMP(A81) Machine Home Setting ※ When you want to change the Hmoe position of APC CHANGER to solve problemes come from operating errors or mechanical faults, please control ATC/APC SERVO AMP(A81) on PDP. ※ If APC CHANGER is on correct position after Manual Operation Recovery, it’s not necessary to set home position at ATC/APC SERVO AMP(81).
  • Page 12 NHM/NHP Series NHM/NHPAPCE2C ② Press DOWN key and change the display to home position setting mode. ③ Press SET key for more than 5 seconds and the display will set the parameter automatically and the turn back the display to home position setting mode. Press the SET Key for more than 5 sec ※...

  • Page 13: Manual Opertation In The Jog Mode

    NHM/NHP Series NHM/NHPAPCE2C 5. Manual opertation in the jog mode ※ This operation is useful, When APC is need fine tuning to solve mechanical faults ※ Refer to as blew for select of APC 1AXIS : APC (NOT BLINKING) 2 AXIS : ATC (BLINKING) 1 AXIS Status display 2 AXIS Status display ①...
  • Page 14 NHM/NHP Series NHM/NHPAPCE2C ⑤ From the [Jr.0000 ] screen, use the up/down arrow keys to rotate the APC in a desired direction. In such a way, adjust the pot position.  Fine-tune the APC position ※ If you want to fine-tune the APC position, set parameter #27 to a lower value.
  • Page 15 NHM/NHP Series NHM/NHPAPCE2C Revision History APC Recovery NHM/NHP Series Version Year/Month Revision history Created by Donghyung.Kang 2012. 11 Created a draft(NHM/NHPAPCE2B) Gwangho.Lee Donghyung.Kang 2012. 12 Add chapter 4,5(NHM/NHPAPCE2C) Gwangho.Lee...
