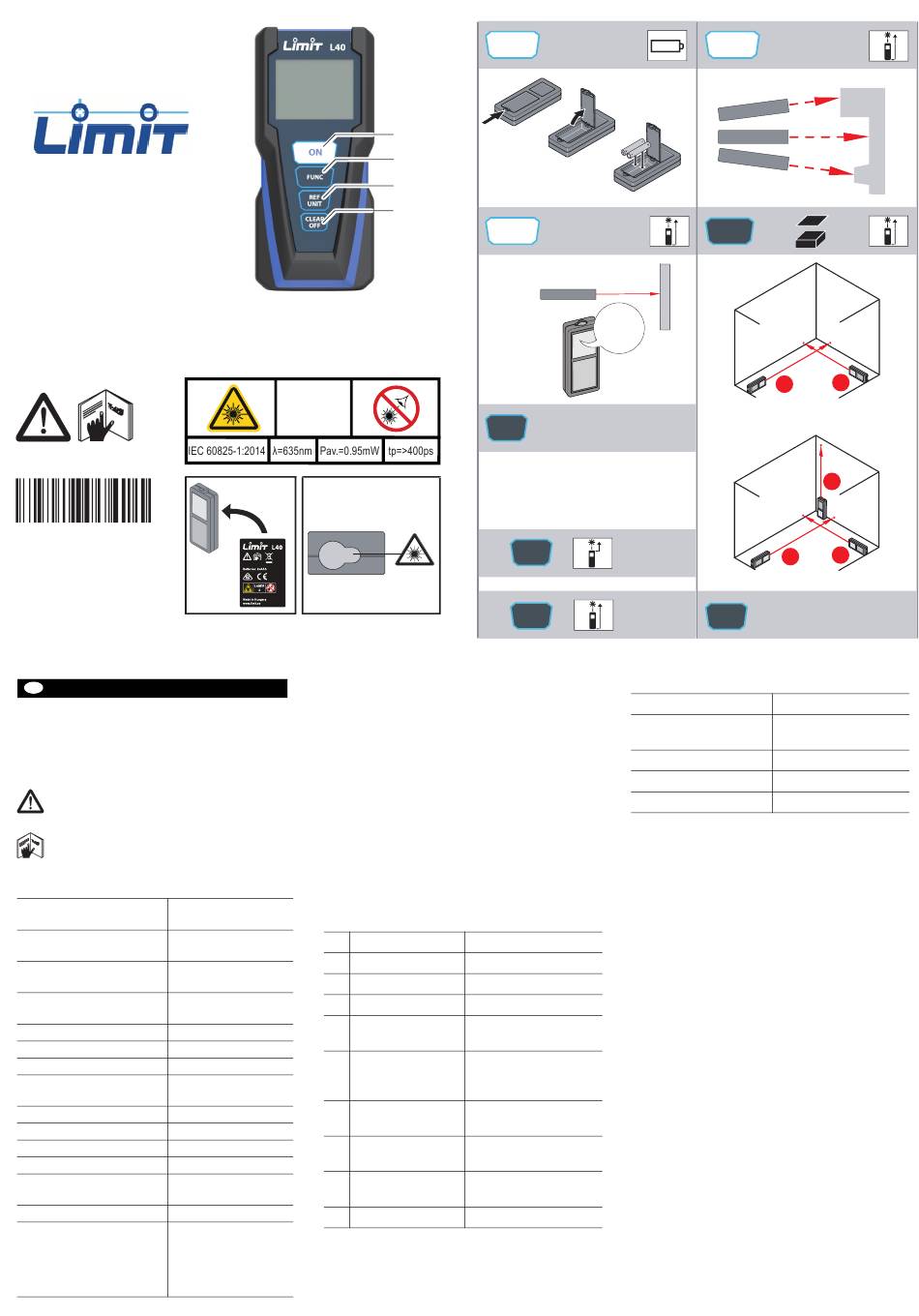

LIMIT L40 User Manual

L40
LCA837092
www.limit.se
User Manual
en

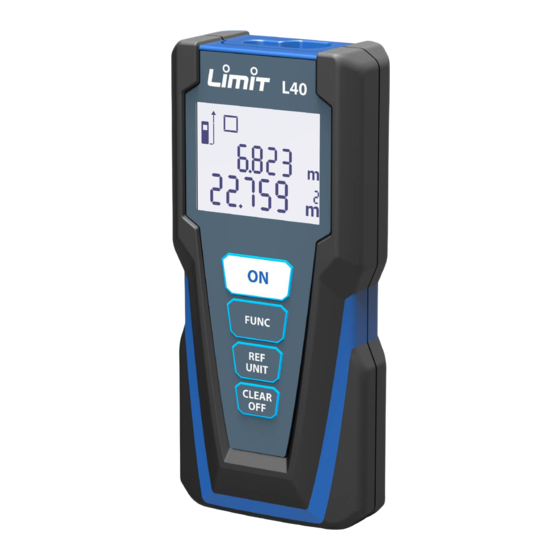

Overview

1) On / Measure 3) Measurement Reference / UNIT
2) Area / Volume 4) Clear / Off

Instrument Set-up

Introduction

The safety instructions and the user manual
should be read through carefully before the
product is used for the first time.
The person responsible for the product must
ensure that all users understand these directions
and adhere to them.

Technical data

Accuracy with favourable ± 2.0 mm / ± 0.08 in ***
conditions *
Accuracy with unfavourable ± 3.0 mm / ± 0.12 in ***
conditions **
Range with favourable 0.2-40 m / 0.6-131 ft
conditions *
Range with unfavourable 0.2-30 m / 0.6-98 ft
conditions **
Smallest unit displayed 1 mm / 0.04 in
Laser class 2
Laser type 635 nm, < 1 mW
Ø laser point 6 / 18 mm
at distances 10 / 30 m
Protection class IP54
Autom. laser switch off after 90 s
Autom. power switch-off after 180 s
Battery durability (2 x AAA) up to 5000 measurements
Dimension (H x D x W) 115 x 53 x 25 mm
4.5 x 2.14 x 1 in
Weight (with batteries) 95 g / 3.4 oz
Temperature range:
- Storage -25 to 70 °C
-13 to 158 °F
- Operation
0 to 40 °C
32 to 104 °F
1
2
3
4
LASER
2
* favourable conditions are: white and diffuse reflecting target
(white painted wall), low background illumination and
moderate temperatures.
** unfavourable conditions are: targets with lower or higher
reflectivity or high background illumination or temperatures at
the upper or lower end of the specified temperature range.
*** Tolerances apply from 0.2 m to 5 m with a confidence
level of 95%.
With favourable conditions the tolerance may deteriorate by
0.1 mm/m for distances above 5 m.
With unfavourable conditions the tolerance may deteriorate
by 0.15 mm/m for distances above 5 m.

Message Codes

If the message Error does not disappear after switching on
the device repeatedly, contact the dealer.
If the message InFo appears with a number, press the Clear
button and observe the following instructions:
No. Cause
204 Calculation error
252 Temperature too high
253 Temperature too low
254 Battery voltage too low
for measurements
255 Received signal too
weak, measuring time
too long
256 Received signal too high Change target surface (e.g.
257 Too much background
light
258 Measurement outside of
measuring range
260 Laser beam interrupted Repeat measurement.
ON
2 x AAA
-
+
-
ON
8.532 m
2 sec = UNIT
REF
UNIT
0.000 m
0'00"1/16, 0 in 1/16
REF
1 x =
UNIT
2 x =
REF
UNIT
Laser classification
Wavelength
Maximum radiant output
power used for classification
Pulse repetition frequency
Pulse duration
Beam divergence
Care
• Clean the device with a damp, soft cloth.
• Never immerse the device in water.
• Never use aggressive cleaning agents or solvents.
Areas of responsibility
Responsibilities of the person in charge of the
instrument:
Correction
• To understand the safety instructions on the product and the
instructions in the User Manual.
Perform measurement again.
• To be familiar with local safety regulations relating to acci-
Let device cool down.
dent prevention.
• Always prevent access to the product by unauthorised
Warm device up.
personnel.
Change batteries.
Responsibilities of the manufacturer of the original
equipment:
Change target surface (e.g.
The company below is responsible for supplying the product,
white paper). including the User Manual in a completely safe condition.
www.limit.se
Manuals on following languages are available on
www.limit.se: Norwegian, Danish, Polish, Estonian,
white paper).
Lithuanian, Latvian, French, Greek, Italian, Dutch, German,
Shadow target area. Portuguese and Spanis
Correct range.
2 sec
ON
+
1 x
FUNC
2 x
1.
1.
2 sec = OFF
CLEAR
OFF
635 nm
0.95 mW
320 MHz
>400ps
0.16 mrad x 0.6 mrad
2.
3.
2.
