Lennox 16ACX Series Unit Information

Hide thumbs
Table of Contents

Advertisement

Quick Links

Service Literature
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional HVAC installer or
equivalent, service agency, or the gas supplier.
IMPORTANT
The Clean Air Act of 1990 bans the intentional venting of
refrigerant (CFCs, HCFCs and HFCs) as of July 1, 1992.
Approved methods of recovery, recycling or reclaiming
must be followed. Fines and/or incarceration may be
levied for noncompliance.
IMPORTANT
This unit must be matched with an indoor coil as
specified in Lennox Product Specification bulletin. Coils
previously charged with HCFC-22 must be flushed.
CAUTION
As with any mechanical equipment, contact with sharp
sheet metal edges can result in personal injury. Take
care while handling this equipment and wear gloves and
protective clothing.
WARNING
Electric Shock Hazard. Can cause injury or
death. Unit must be properly grounded in
accordance with national and local codes.
Line voltage is present at all components
when unit is not in operation on units with
single-pole contactors. Disconnect all remote
electric power supplies before opening
access panel. Unit may have multiple power
supplies.

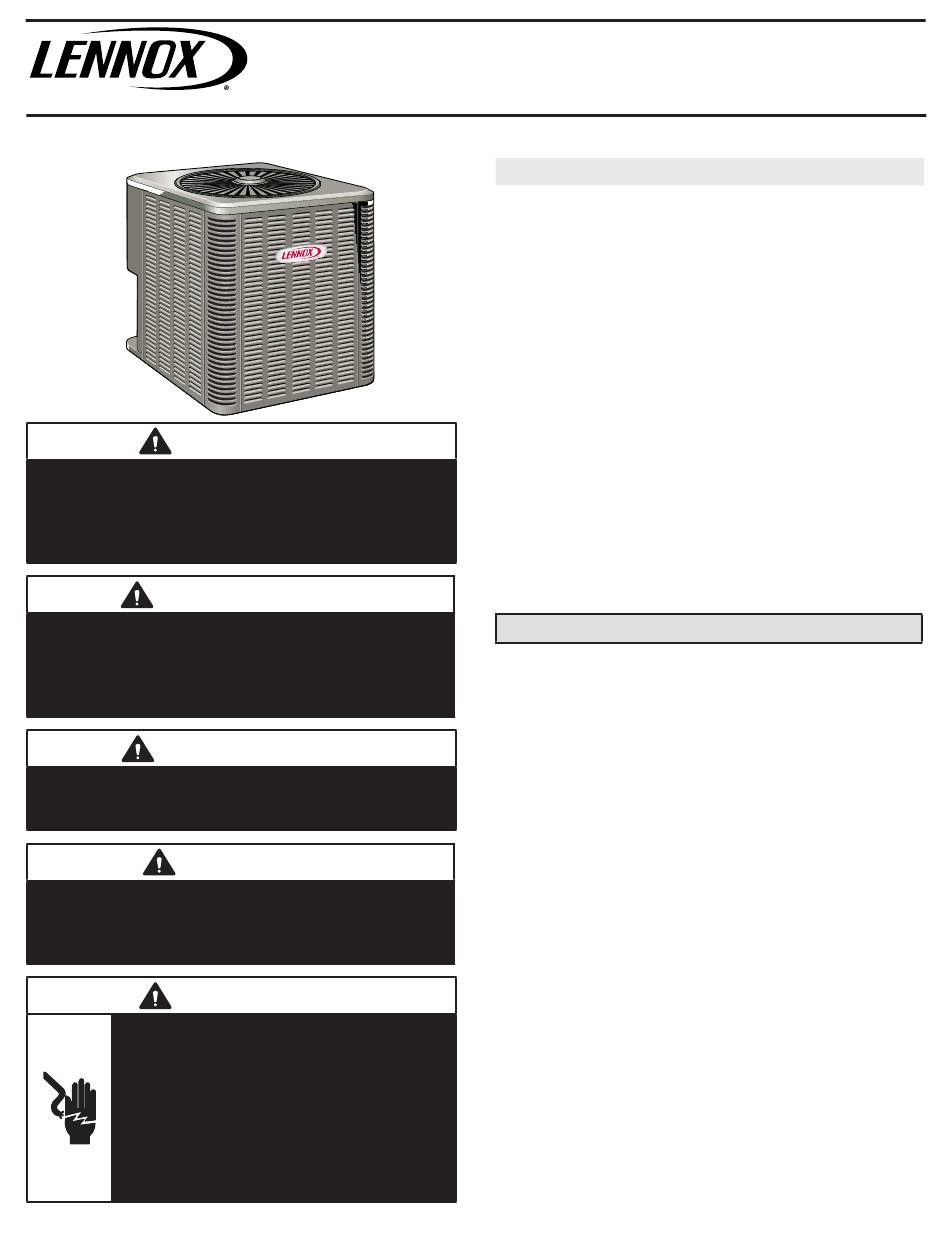

UNIT INFORMATION
16ACX (HFC- 410A) SERIES OUTDOOR UNITS
Corp. 1916-L9
October 3, 2019

Table of Contents

Installation Clearances ...................................................2
Model Number Identification ...........................................2
Dimensions .....................................................................3
Specifications .................................................................4
Typical Unit Parts Arrangement ......................................5
Unit Placement ..............................................................7
New or Replacement Line Set ........................................9
Brazing Connections ................................................... 11
Flushing Line Set and Indoor Coil ................................14
Installing Indoor Metering Device .................................15
Leak Test Line Set and Indoor Coil ..............................16
Evacuating Line Set and Indoor Coil ...........................17
Electrical .......................................................................18
System Operation .......................................................20
Maintenance ...............................................................20
Servicing Units Void of Charge ...................................21
Start-Up ......................................................................22
General Information
These instructions are intended as a general guide and do
not supersede national or local codes in any way. Consult
authorities having jurisdiction before installation.

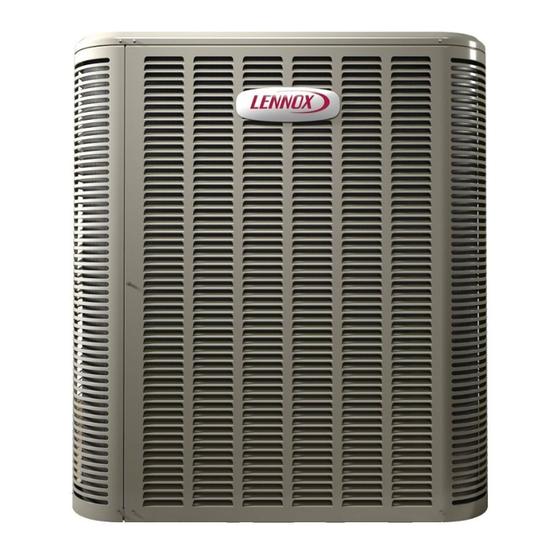

The Merit® 16ACX model is designed for use with HFC-
410A refrigerant only. This unit must be installed with
an approved indoor air handler or coil. See the Lennox
16ACX Product Specification bulletin (EHB) for approved
indoor component matchups.
This outdoor unit is designed for use in systems that use
the following refrigerant metering device:
• Check / thermal expansion valve (CTXV)
Page 1
16ACX
