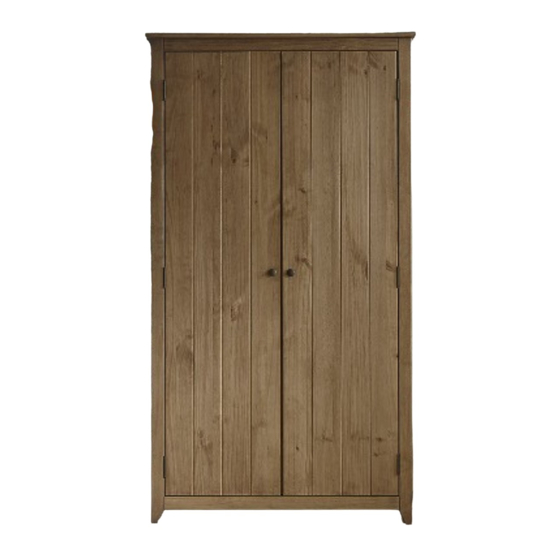

GFW AZTEC Assembly Instructions Manual

2 door robe
Hide thumbs Also See for AZTEC:

Advertisement

Quick Links

Download this manual

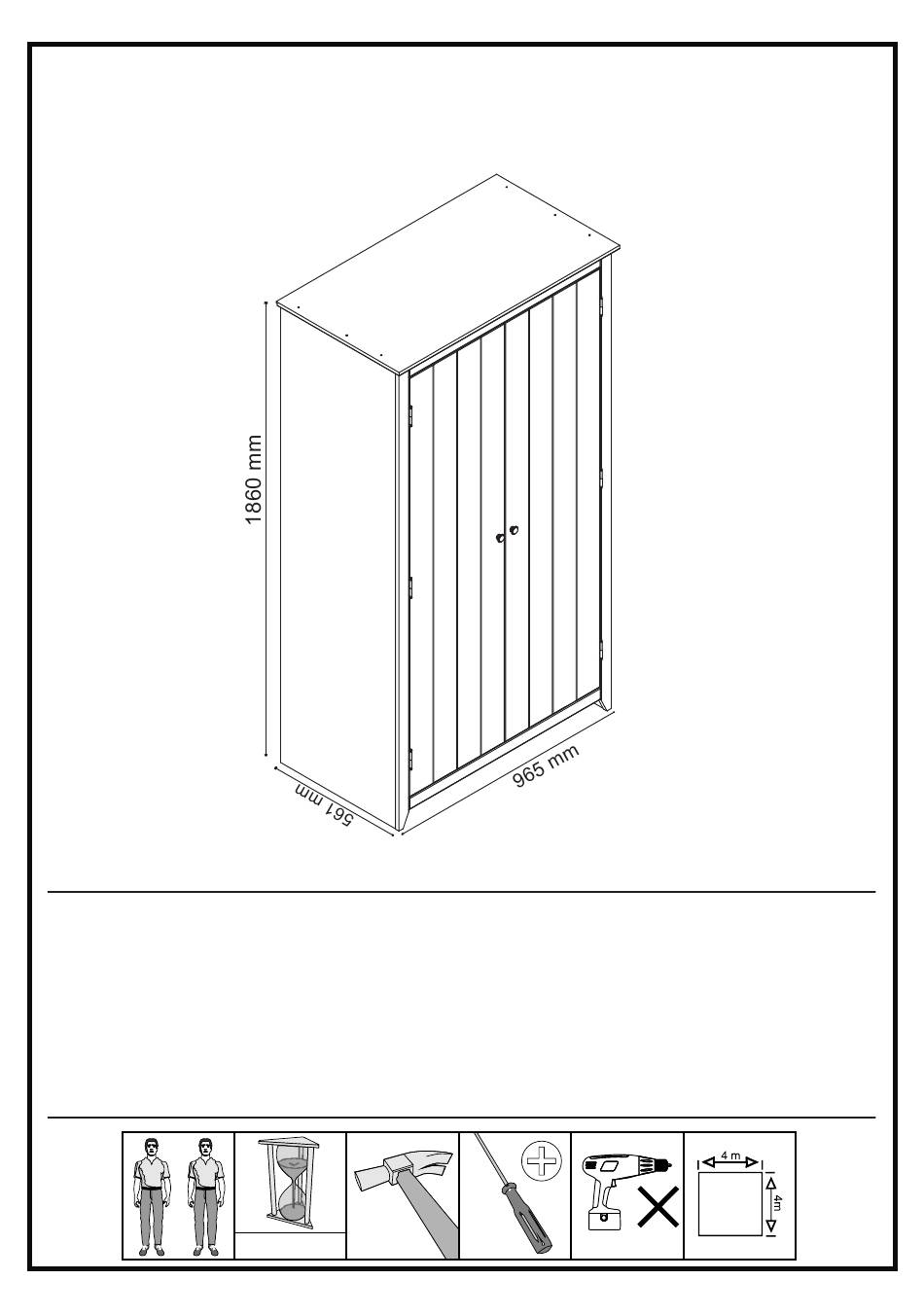

ASSEMBLY INSTRUCTIONS
AZTEC 2 DOOR ROBE
Colour:WAXED PINE
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not
destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small compoments used in the construction of this unit. These loose items should be
kept away from young children whilst assembling your unit to avoid the danger of chocking hazards.
1:00 h
Version 1 11/17
Page 1 of 13

Advertisement

loading
Need help?

Need help?

Do you have a question about the AZTEC and is the answer not in the manual?

Questions and answers

Related Manuals for GFW AZTEC

Summary of Contents for GFW AZTEC

  • Page 1 ASSEMBLY INSTRUCTIONS AZTEC 2 DOOR ROBE Colour:WAXED PINE PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction. Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.

  • Page 2: Care Information

    AZTEC 2 DOOR ROBE ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION · This product is intended for a maximum weight of 48 kg distributed evenly thoughout the cabinet. Do not exceed this weight.
  • Page 3 AZTEC 2 DOOR ROBE ASSEMBLY INSTRUCTIONS Please check the pack contents before assembling the product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from small children. Version 1 11/17...
  • Page 4 AZTEC 2 DOOR ROBE ASSEMBLY INSTRUCTIONS Parts: Description: 01 -Top Panel Description: 10- Back crossbeam Qty: 01 Qty: 02 Carton No: 1/1 Carton No: 1/2 Size:1000x561x18 mm Size:932x53x16 Description: 02 -Right Side Panel Description: 11 - Rail Qty: 01 Carton No: 1/2...
  • Page 5 AZTEC 2 DOOR ROBE ASSEMBLY INSTRUCTIONS Fixings (to scale) D4,0X45mm D8X25mm D3,5x30mm CSK Screw CSK Screw Wood Dowel L-23mm D M4x20mm D3,5X22mm D3,5 X 16mm Truss Head Screw CSK Screw Nail Pin CSK Screw D15mm Fixings (not to scale) D30x35mm...
  • Page 6 04 H Ø3,0 x 16mm 8 x 25mm 8 x 25mm Ø3,0 x 16mm Version 1 11/17 Page 06 of 13...
  • Page 7 Ø3,0 x 16mm Ø3,5 x 30mm Version 1 11/17 Ø3,5 x 30mm Page 07 of 13...
  • Page 8 Ø3,5 x 30mm Ø3,0 x 16mm Ø4,0 x 45mm Version 1 11/17 Page 08 of 13...
  • Page 9 Ø3,0 x 16mm Important: The cabinet Must be ‘square’ when the back is attached 3,5x16 8 x 8mm Version 1 11/17 Page 09 of 13...
  • Page 10 Ø4,0 x 30mm Ø3,0 x 16mm Ø3,5 x 30mm Ø3,0 x 16mm Version 1 11/17 Page 10 of 13...
  • Page 11 M4 x 12mm ADJUSTING HINGE 1ª 2ª 3ª 1ª 2ª 3ª Version 1 11/17 Page 11 of 13...
  • Page 12 AZTEC 2 DOOR ROBE ASSEMBLY INSTRUCTIONS The product should be fixed to the wall using the wall strap. The screw to fix to the wall is not supplied with this product. Please use screw and fixing appropriate for the wall type. (If in doubt you should seek...

  • Page 13: Complete Assembly

    AZTEC 2 DOOR ROBE ASSEMBLY INSTRUCTIONS COMPLETE ASSEMBLY Your AZTEC 2 DOOR ROBE is now completely assembled. Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the connectors are tight and secure.
