ASSEMBLY INSTRUCTIONS

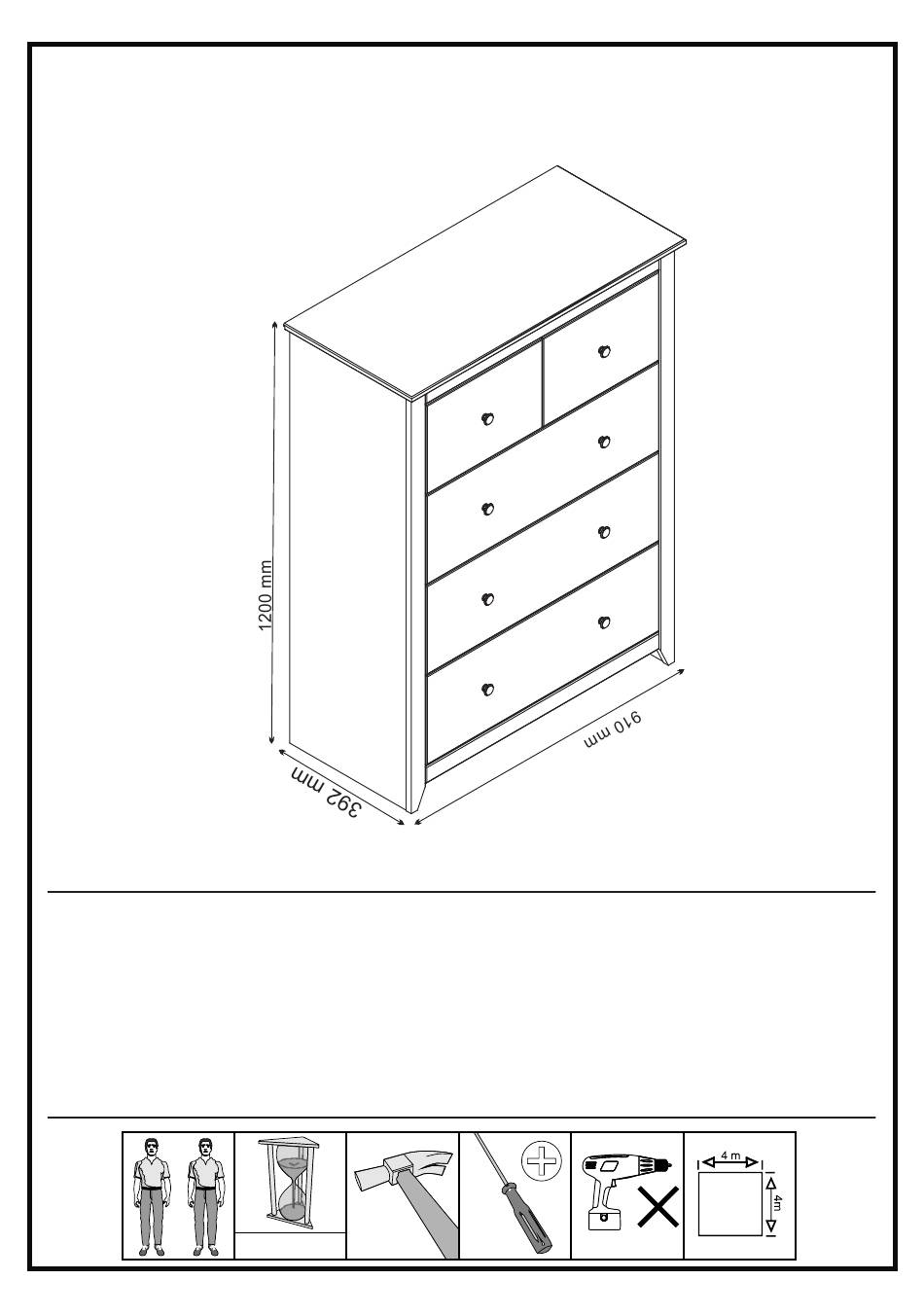

AZTEC 2 OVER 3 CHEST
Colour: WAXED PINE
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not
destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small compoments used in the construction of this unit. These loose items should be
kept away from young children whilst assembling your unit to avoid the danger of chocking hazards.
1:00 h
Version 1 11/17
Page 1 of 13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GFW AZTEC
Summary of Contents for GFW AZTEC
- Page 1 ASSEMBLY INSTRUCTIONS AZTEC 2 OVER 3 CHEST Colour: WAXED PINE PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction. Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
-
Page 2: Care Information
AZTEC 2 OVER 3 CHEST ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION This product is intended for a maximum weight of 60 kg. Do not exceed this weight. · Due to the size of this product we recommend that it is assembled in the room intended for use. - Page 3 AZTEC 2 OVER 3 CHEST ASSEMBLY INSTRUCTIONS Please check the pack contents before assembling the product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from small children. Version 1 11/17...
- Page 4 AZTEC 2 OVER 3 CHEST ASSEMBLY INSTRUCTIONS Parts: Description: 01 -Top Panel Description: 10-Small Drawer Back Description:19-Small Drawer Bottom Qty: 01 Qty: 02 Qty:02 Carton No: 1/1 Carton No: 1/1 Carton No:1/1 Size: 910X392X18mm Size:343x192x15 mm Size:356x297x3 mm Description: 02 -Left Side Panel...
- Page 5 AZTEC 2 OVER 3 CHEST ASSEMBLY INSTRUCTIONS Fixings (to scale) D3,5 X30mm D8x25mm D4,0X40mm D3,0x30mm D8x40mm CSK Screw CSK Screw Wood Dowel CSK Screw CSK Screw CSK Screw Wood Dowel D3,5X22mm L-23mm D3,5x16mm D M-4X22mm CSK Screw Nail Pin Truss Head Screw...
- Page 6 AZTEC 2 OVER 3 CHEST ASSEMBLY INSTRUCTIONS 8 x 25mm Ø 3,5 x 16mm 8 x 25mm Version 1 11/17 Page 6 of 13...
- Page 7 AZTEC 2 OVER 3 CHEST ASSEMBLY INSTRUCTIONS Ø3,5 x 30mm Ø3,5 x 30mm Version 1 11/17 Page 7 of 13...
- Page 8 AZTEC 2 OVER 3 CHEST ASSEMBLY INSTRUCTIONS Ø3,5 x 30mm Ø3,5 x 30mm Version 1 11/17 Page 8 of 13...
- Page 9 AZTEC 2 OVER 3 CHEST ASSEMBLY INSTRUCTIONS Ø3,5 x 30mm Ø3,5 x 30mm 4,0 x 40mm Ø Version 1 11/17 Page 9 of 13...
- Page 10 AZTEC 2 OVER 3 CHEST ASSEMBLY INSTRUCTIONS 8 x 8mm Ø3,5 x 30mm Ø3,0 x 30mm M4 x 20 mm Version 1 11/17 Page 10 of 13...
- Page 11 AZTEC 2 OVER 3 CHEST ASSEMBLY INSTRUCTIONS Ø3,5 x 30mm Ø3,0 x 30mm M4 x 12mm 8 x 40mm Version 1 11/17 Page 11 of 13...
- Page 12 AZTEC 2 OVER 3 CHEST ASSEMBLY INSTRUCTIONS The product should be fixed to the wall using the wall strap. The screw to fix to the wall is not supplied with this product. Please use screw and fixing appropriate for the wall type. (If in doubt you should seek...
-
Page 13: Complete Assembly
AZTEC 2 OVER 3 CHEST ASSEMBLY INSTRUCTIONS COMPLETE ASSEMBLY Your AZTEC 2 OVER 3 CHEST is now completely assembled. Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the connectors are tight and secure.
