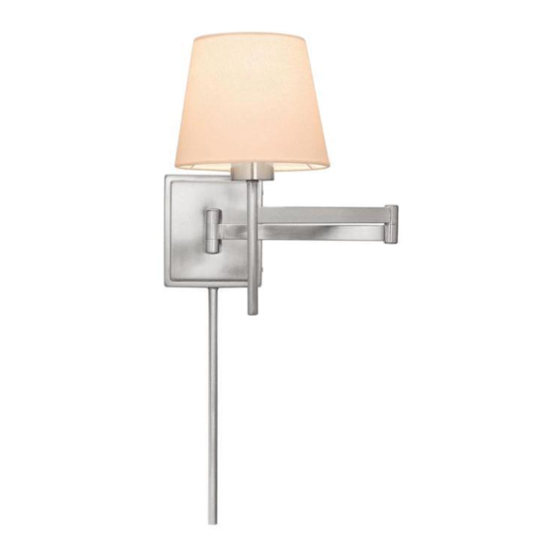

HAMPTON BAY 18020 Installation Instruction

A
B
C
D
E
In the event that you should have any installation question or
are missing parts, please contact Customer Service. Customer
service may be reached weekdays a 1-800-527-0998 between
the hours of 8:00am and 5:00pm PST (Pacific Standard Time).
Installation Instruction
WARNING:
•Risk of shock, do not plug unit before assembly is completed.
H
•Do not exceed the maximum wattage rating.
•Before you begin assembly of your new fixture, please follow the instruction manual
step by step.

INSTALLATION

G
1. Drill the holes in the proper position on the wall according to the "Keyholes" (C)
location on the mounting plate of
2. Install Plastic Anchor (A) into the wall and then Install Wood Screws (B) into Plastic
F
Anchors (A) accordingly.
3. Hang the lamp Body
set into the slots of "Keyholes" (C).
4. Secure Cord Cover (E) to
5. Place Shade (G) over the Socket (F) and secure with Screw Shell (H).
6. Install the Light Bulb in accordance with the lamp's specifications. (DO NOT
EXCEED THE MAXIMUM WATTAGE RATING!!)

IMPORTANT SAFETY INSTRUCTIONS

1. This portable lamp has a polarized plug (one blade is wider than the other) as a
safety feature to reduce the risk of electric shock. This plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician. Never use with an extension cord
unless plug can be fully inserted. Do not alter the plug.
2. This lamp uses a Hi-Low switch on socket, please use a medium base, standard
light bulb (Max. 60W).
For Item#18020
the lamp.
onto Wood Screws (A) and adjust it
the Hole (D) on the bottom of Backplate
LA-1461E/S (Date: Feb. 28 .09)
until the wood screws are
until tightly.
MADE IN CHINA
