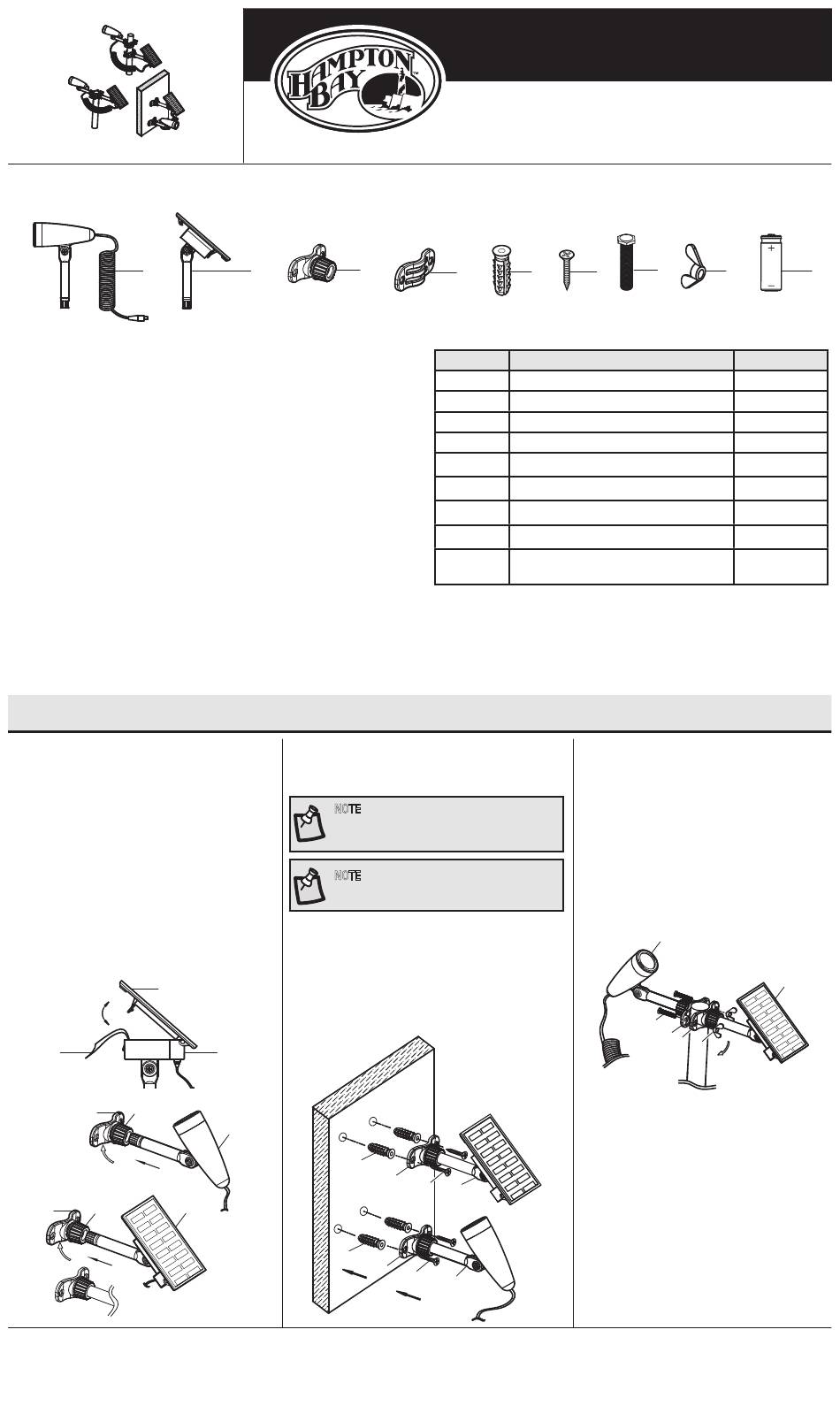

Package contents
A
PLannIng FoR a sUccessFUL asseMBLY
Read all instructions before assembly and installation.
Inspect each part for defects that may have occurred during shipping.
Keep your receipt and these instructions for proof of purchase.
cHoosIng tHe RIgHt LocatIon
Install your solar light in a location with full, direct sunlight. Do not install the
solar panel in shaded areas as these areas will not allow the batteries to fully
charge and reduce the nighttime operating hours for your light. Ensure that the
installation location is away from other nighttime light sources such as street or
porch lamps. These light sources may prevent your solar light from automatically
turning on.
HoW soLaR WoRks
The solar light has a solar panel that converts sunlight into electricity. During the day, the converted electricity is stored in the rechargeable batteries.
At night, the solar light is powered by the batteries using the electricity stored during the day. The operating time depends on geographical location,
daily weather conditions, and season. For optimal performance during the evening, allow the batteries to charge for 6 to 7 hours in direct sunlight.
assembly and Installation
1
Preparing for installation
□
Open the battery cover (1) of the solar panel
to remove the pull tab (II) (first time use
only). This will allow the battery to make a
connection and become active.
□
Loosen, but do not remove, the connector (2)
on the fixing bracket (C).
□
Put the connecting post of the flag light
(A) into the fixing bracket (C) and twist the
connector (2) clockwise until it is tight.
□
Repeat the previous step to connect the
solar panel (B) to the fixing bracket (C).
1
II
2
C
2
C
B
2
Installing the flag light on
a wall (option 1)
NOTE: Different mounting options allow for
various lighting angles. Choose the best
option for your application.
NOTE: For wood installation, use the screws
(F) only, the wall anchors are not necessary.
□
Drill a 1/2 in. hole into the mounting area for the
wall anchor (E).
□
Align the fixing bracket (C) with wall anchor (E),
and use the screws (F) to mount the solar panel
(B).
□
Repeat the previous steps to mount the flag
light (A).
B
A
B
E
C
D
Part
A
B
C
D
E
F
G
H
I
E
C
F
B
C
F
A
1
Please contact 1-855-HD-HAMPTON for further assistance.
Item #1000 021 214
Model #79132
Use and care guide
solar LeD Flag Light
E G
F
Description
Flag light head with post
Solar panel with post
Fixing bracket with connector
Bracket
Wall anchor
Screw
Bolt
Wing nut
900mAh LiFePO4, 18500 rechargeable
battery (pre-installed)
2
Installing the flag light on a
post (inline option)
□
Place the fixing bracket (C) of the flag light
(A) and the fixing bracket (C) of the solar
panel (B) against the post.
□
Install the bolts (G) through the fixing
brackets (C) and fasten the wing nuts (H)
onto the bolts (G), twisting them clockwise
until tight.
A
G
C C
H I
Quantity
1
1
2
2
4
4
4
4
1
B
H
