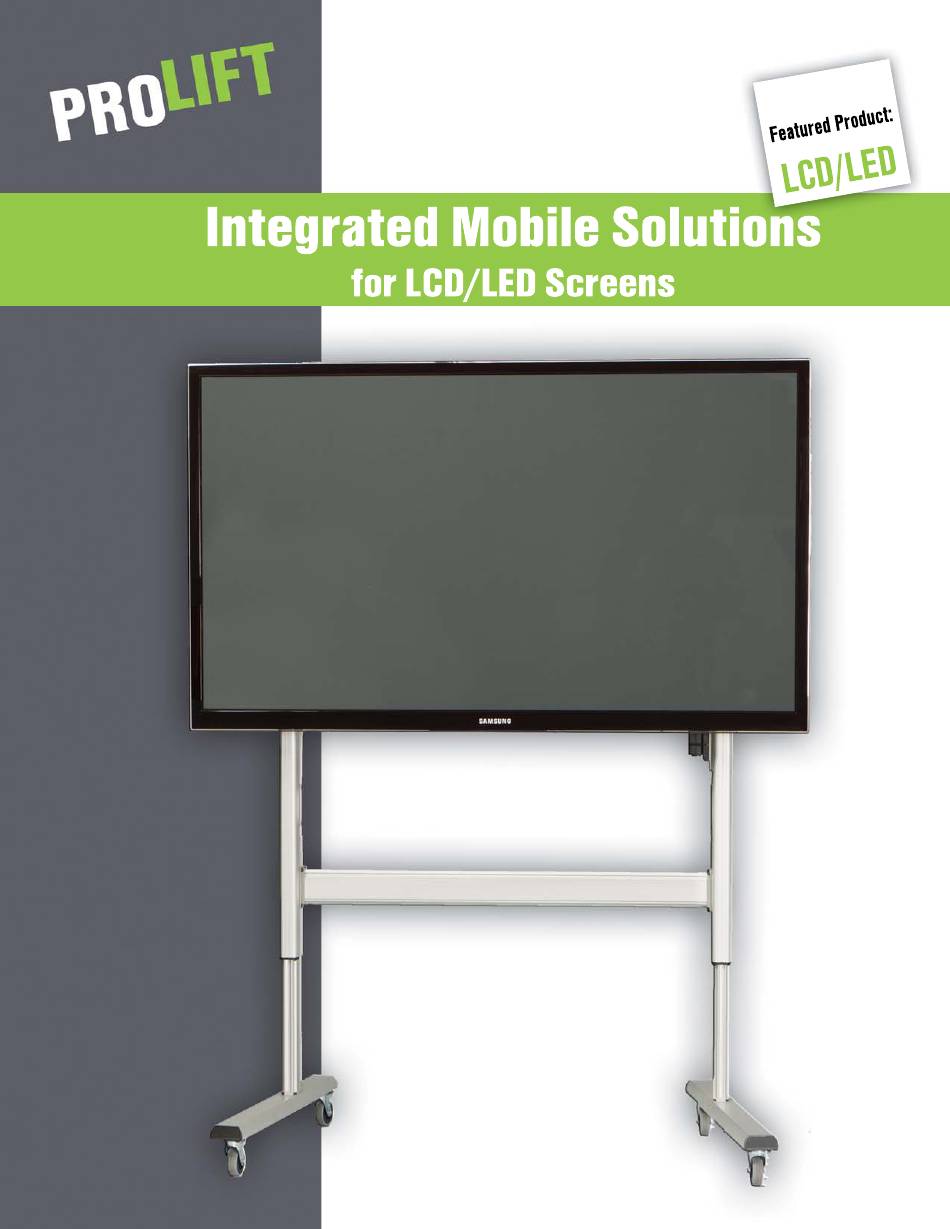

- Page 2 Thank you for purchasing a Pro‐LIFT G4U‐LCD or G4U‐LED. The mobile Pro‐LIFT product line is designed to enhance your LED/LCD screen. Please follow all assembly instructions correctly to provide optimal use. Only a qualified contractor should install the Pro‐LIFT G4U‐LCD. If you do not understand any of the assembly instructions, please contact your local re‐seller or visit www.proliftstand.com. IMPROPER INSTALLATION CAN CAUSE DAMAGE TO YOUR Pro‐LIFT AND LEAD TO SERIOUS PHYSICAL INJURY. JORO Manufacturing cannot take any responsibility for damage or injury resulting from improper installation. The supplied mounting hardware is for use on the Pro‐LIFT stands only. If you encounter any problems or insufficient hardware during installation, please contact your local re‐seller. ...
- Page 3 Pro-LIFT G4U-LCD Assembly Sheet SL‐VESA Brackets G4U‐LCD Modesty FRONT FACE CONTROL PANEL ACCESSORY SHELF MODESTY LONG EXTENSION FACING FRONT FOOT CASTER OPEN BOX and IDENTIFY ALL KITS!! ...
- Page 4 Pro-LIFT G4U-LCD Assembly Sheet Left F C Right Foot **Indicator** STEP 1 STEP 2 Install Casters Install Foot (Requires 4 bolts per caster) (Requires 2 bolts per foot) Lock caster once completed! Ensure long extension facing forward and outward. Repeat above for 4 casters BE SURE TO NOT OVER TIGHTEN! BE SURE TO NOT OVER TIGHTEN! D ATTENTION!! Be sure to use M6x12mm Socket Cap SILVER.
- Page 5 Pro-LIFT G4U-LCD Assembly Sheet STEP 5 Accessory Shelf Adjustment (2 bolts and dowel nut‐serts already fastened) If required, loosen bolts and slide accessory shelf to correct position. BE SURE TO NOT OVER TIGHTEN! Plastic Spacer Tooth Washer Machine Screw Machine Screw Plastic Spacer Washer Washer Tooth Washer Washer For most 50” to 80” LCD Screens For most 23” to 50” LCD Screens STEP 6 Mounting LCD Screen to SL-VESA Brackets (Requires Machine Screws/Tooth Washers/Washers/Spacers) ...
- Page 6 Pro-LIFT G4U-LCD Assembly Sheet SL-VESA Bracket Clamping Bolt -2.5° 5° G4U-LCD Modesty STEP 7 STEP 8 Tilting LCD Screen Mounting SL-VESA Brackets to Pro-LIFT G4U-LCD For ease of tilting, it is recommended to tilt the SL‐VESA Brackets prior to mounting Maneuver SL‐VESA Brackets over the Pro‐LIFT G4U‐LCD modesty‘s and lower the SL‐ on the Pro‐LIFT G4U‐LCD. To tilt the SL‐VESA Brackets pull the plunger out and either VESA brackets so they are resting on top of both modesty’s. Once ensuring both push or pull until you here the plunger click into position at the desired angle. brackets are engaged with the modesty’s and after centring the LCD screen, tighten The LCD rotates in 2.5° increments – 5 positive and 2.5 negative the four clamping bolts. ENSURE THE BOLTS ARE TIGHT BUT DO NOT OVER TIGHTEN! ...
