Item #1004 773 036
Model #59203
UL Model #52-CANF

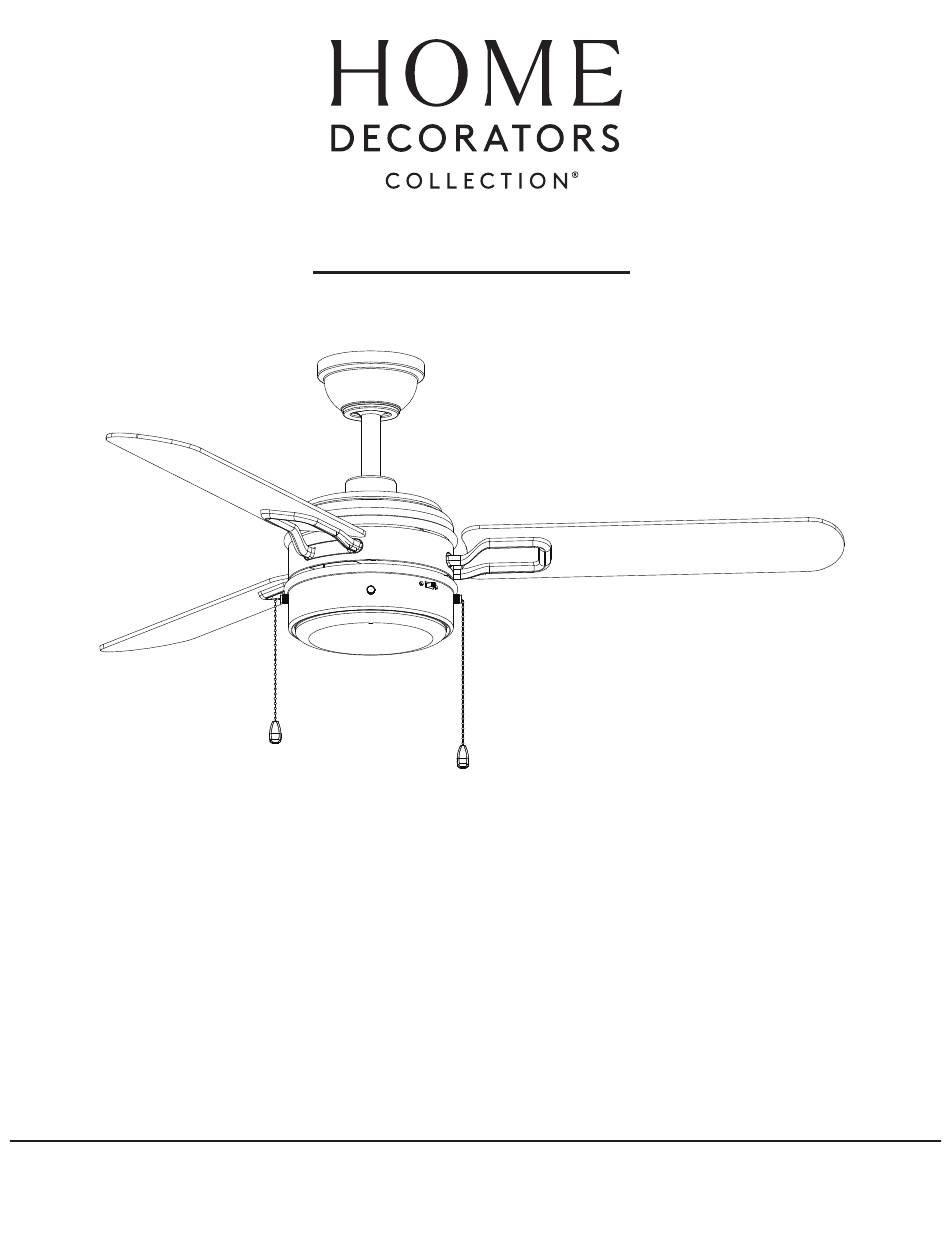

USE AND CARE GUIDE
STILLMORE 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturdayt
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Related Manuals for Home Decorators Collection STILLMORE 59203
Summary of Contents for Home Decorators Collection STILLMORE 59203
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................12 Warranty ................3 Care and Cleaning ............. 13 Pre-Installation ..............3 Troubleshooting ..............13 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as To reduce the risk of electric shock, ensure the electricity has... -
Page 3: Warranty
“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Wire connecting nut Blade arm screws Blade screws Pull chain...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Blade arms (inside canopy) Blade Ball/downrod assembly Light kit pan Canopy with canopy ring attached Light kit fitter assembly Decorative motor collar Glass bowl Fan motor assembly IMPORTANT: This product and/or components are governed by one or more of the following U.S.
-
Page 6: Installation
Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain WARNING: To reduce the risk of fire, electric shock or proper blade clearance when installing on a steep, sloped personal injury, mount to outlet box marked “acceptable for fan support of 35 lbs. (15.9 Kg) or less” using the ceiling. -
Page 7: Assembly
Assembly - Standard Ceiling Mount Preparing for mounting Routing the wires □ Route the wires exiting the top of the fan motor NOTE: The magnet is pre-attached on the canopy assembly (E) through the decorative motor collar bottom cover for you to remove and install easily. cover (D) and then the center of the canopy bottom cover (FF). - Page 8 Assembly - Hanging the Fan Attaching the fan to the electrical Hanging the fan □ Carefully lift the fan-motor assembly (E) up to the slide-on WARNING: To reduce the risk of fire, electric shock mounting bracket (A). or personal injury, mount to outlet box marked □...
- Page 9 Assembly - Hanging the Fan (continued) Making the electrical connection Wrapping the extra wire WARNING: Each wire nut supplied with this fan is designed to accept up to one 12-gauge house wire and two wires from the NOTE: Follow this step ONLY if you did not cut the extra length off fan.
- Page 10 Assembly - Hanging the Fan (continued) Mounting the fan-motor assembly (standard mount) WARNING: When using the standard ball/downrod mounting, the tab in the ring at the bottom of the mounting bracket must rest in the groove of the hanger ball. Failure to properly seat the tab in the groove could cause damage to the wiring.
- Page 11 Assembly - Installing the Light Kit Attaching the light kit Attaching the light kit pan fitter assembly CAUTION: To reduce the risk of electric shock, disconnect CAUTION: To reduce the risk of electric shock, disconnect the electrical supply circuit to the fan before installing the the electrical supply circuit to the fan before installing the light kit.
-
Page 12: Operation
Assembly - Installing the Light Kit (continued) Installing the glass bowl WARNING: Do not overtighten when installing the glass shade into the light kit assembly. Allow the glass shade to cool completely before removing. □ Place the glass bowl (J) into the light kit pan (H), aligning the three flat areas on the top flange of the glass bowl (J) with the raised dimples in the light kit pan. -
Page 13: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □... - Page 14 Questions, problems, missing parts? Before returning to the store, call Home Depot Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
