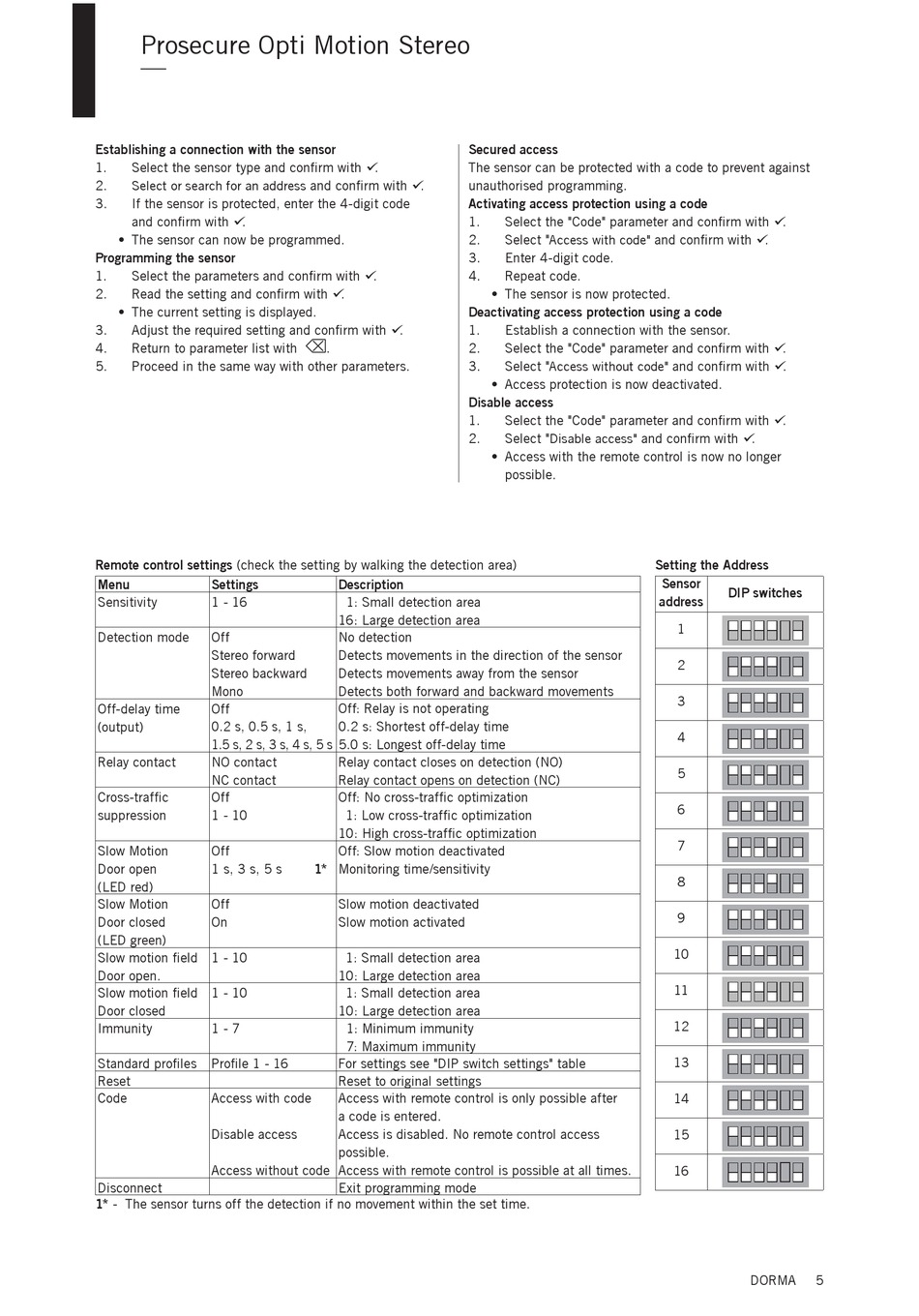

Prosecure Opti Motion Stereo
—

Establishing a connection with the sensor

1. Select the sensor type and confirm with ü .
2. Select or search for an address and confirm with ü .
3. If the sensor is protected, enter the 4-digit code
and confirm with ü .
• The sensor can now be programmed.

Programming the sensor

1. Select the parameters and confirm with ü .
2. Read the setting and confirm with ü .
• The current setting is displayed.
3. Adjust the required setting and confirm with ü .
4. Return to parameter list with
5. Proceed in the same way with other parameters.
Remote control settings (check the setting by walking the detection area)
Menu Settings
Sensitivity 1 - 16
Detection mode Off
Stereo forward
Stereo backward
Mono
Off-delay time Off
(output) 0.2 s, 0.5 s, 1 s,
1.5 s, 2 s, 3 s, 4 s, 5 s
Relay contact NO contact
NC contact
Cross-traffic Off
suppression 1 - 10
Slow Motion Off
Door open 1 s, 3 s, 5 s
(LED red)
Slow Motion Off
Door closed On
(LED green)
Slow motion field 1 - 10
Door open.
Slow motion field 1 - 10
Door closed
Immunity 1 - 7
Standard profiles Profile 1 - 16
Reset
Code Access with code
Disable access
Access without code
Disconnect
1* - The sensor turns off the detection if no movement within the set time.

Secured access

The sensor can be protected with a code to prevent against
unauthorised programming.
Activating access protection using a code
1.
2.
3.
4.

Deactivating access protection using a code

1.
. 2.
3.
Disable access
1.
2.
Description
1: Small detection area
16: Large detection area
No detection
Detects movements in the direction of the sensor
Detects movements away from the sensor
Detects both forward and backward movements
Off: Relay is not operating
0.2 s: Shortest off-delay time
5.0 s: Longest off-delay time
Relay contact closes on detection (NO)
Relay contact opens on detection (NC)
Off: No cross-traffic optimization
01: Low cross-traffic optimization
10: High cross-traffic optimization
Off: Slow motion deactivated
1* Monitoring time/sensitivity
Slow motion deactivated
Slow motion activated
01: Small detection area
10: Large detection area
01: Small detection area
10: Large detection area
1: Minimum immunity
7: Maximum immunity
For settings see "DIP switch settings" table
Reset to original settings
Access with remote control is only possible after
a code is entered.
Access is disabled. No remote control access
possible.
Access with remote control is possible at all times.
Exit programming mode
Select the "Code" parameter and confirm with ü .
Select " Access with code" and confirm with ü .
Enter 4-digit code.
Repeat code.
• The sensor is now protected.
Establish a connection with the sensor.
Select the "Code" parameter and confirm with ü .
Select " Access without code" and confirm with ü .
• Access protection is now deactivated.
Select the "Code" parameter and confirm with ü .
Select " Disable access" and confirm with ü .
• Access with the remote control is now no longer
possible.
Setting the Address
Sensor
address
DIP switches
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
DORMA 5
