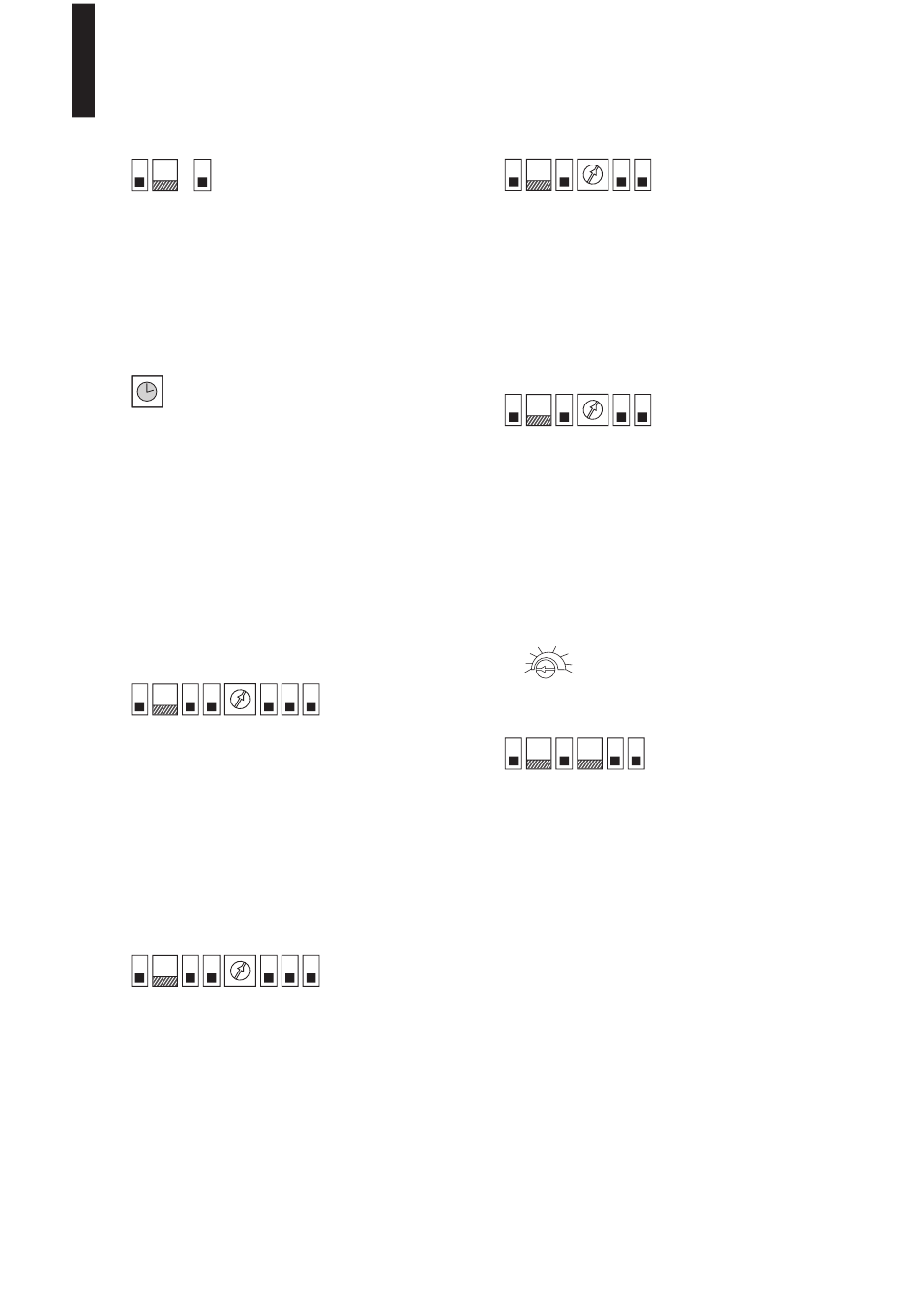

Additional functions

5 5
G
During the initialization period you can switch on the additional
functions mode.
In order to do this, switch DIP switch 5. The green LED will
flash. Set the additional function and reset DIP switch 5.
DIP switch 6 must be up (ON)
Remember the position of the potentiometer so that
you can reset it if required.

Initialisation period

The hardware and software are initialised when the operating
voltage is connected. Initialisation lasts 10 seconds.
The red/green LED will flash. Adjust the sensor.
Check the settings by walking the detection area.
Additional functions can only be set
during initialisation.
During potentiometer adjustment, the LED blinks alternately
red/green. This allows you to count the adjusted setting and
goes for all additional functions!

Slow motion detection area

Door open
5 3 1 1 3 5
G
1. Switch DIP switch 5.
• The green LED will flash.
2. Switch DIP switch 3.
3. Switch DIP switch 1.
4. Change the detection area size using the potentiometer.
5. Reset DIP switch 1.
6. Reset DIP switch 3.
• The settings are saved.
7. Reset DIP switch 5.
Slow motion detection area
Door closed
5 3 2 2 3 5
G
1. Switch DIP switch 5.
• The green LED will flash.
2. Switch DIP switch 3.
3. Switch DIP switch 2.
4. Change the detection area size using the potentiometer.
5. Reset DIP switch 2.
6. Reset DIP switch 3.
• The settings are saved.
7. Reset DIP switch 5.

Immunity

5 2 2 5
G
1. Switch DIP switch 5.
• The green LED will flash.
2. Switch DIP switch 2.
3. Change the sensitivity of immunity using the potentiometer.
• The LED displays the immunity setting.
4. Reset DIP switch 2.
• The settings are saved.
5. Reset DIP switch 5.
Off-delay time (output)
5 1 1 5
G
1. Switch DIP switch 5.
• The green LED will flash.
2. Switch DIP switch 1.
3. Change the relay off-delay time using the potentiometer.
The relay is then continually opened and closed at the
adjusted off-delay time.
• The LED changes from green to red accordingly.
4. Reset DIP switch 1.
• The settings are saved.
5. Reset DIP switch 5.
1,5 s 2,0 s
1,0 s 3,0 s
0,5 s 4,0 s
0,2 s 5,0 s
Restoring original settings
5 4 4 5
R
G
1. Switch DIP switch 5.
• The green LED will flash.
2. Switch DIP switch 4.
• The red LED will flash.
3. Reset DIP switch 4.
• The sensor is reset to the original settings and restarted.
4. Reset DIP switch 5 after the initialisation period has
expired.
