Dorma Prosecure Opti Motion Stereo Manual

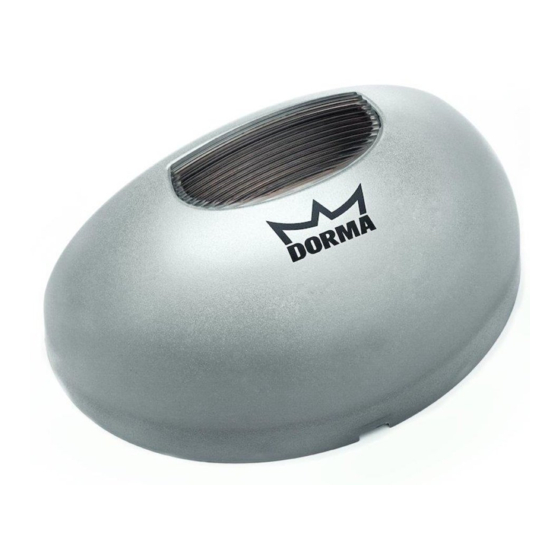

Prosecure Opti Motion Stereo
—
Sensor for approach detection at industrial doors
In order to comply with the safety requirements of
EN 60650-1 and UL508, the sensor must be operated
with safety extra-low voltage (SELV).
The total output power must not exceed 100 W under
any circumstances. Use for example T2, 5A fuse to
ensure compliance.

Delivery package

1 Sensor
1 Connection cable
2 Screws for mounting (in the housing)
1 Self-adhesive mounting template
1 Mounting instructions

Elements

 
LED (red/green)
 
IR receiver
 
IR transmitter

DIP switches
3 1 7 2
1 2 3 4 5 6
OPEN
4 5
Components can be damaged by electrostatic energy!
Do not touch any electronic components.
Do not use metal tools.
Preparation
Insert the screwdriver into
the opening provided from
behind, carefully lift up the
cover, fold upwards and
remove.
Do not open
the housing from the top.
Turning the antenna (to change the antenna characteristics)
Remove the antenna
carefully using two fingers
and insert in the antenna
orientation for the required
detection area.
Do not bend the contacts.
Do not touch the surface of the antenna.

Antenna characteristics

A wide or narrow detection area can be set with the turnable
antenna.
Installation height
Detection area angle
Detection area size
Wide
Narrow

Installation information

• Protect the sensor from
rain*.
• Avoid moving objects
Potentiometer
in the detection area
Connector
(fans, plants, etc.).
Antenna
• Do not cover the sensor.
Mount the sensor only
behind suitable covers.
• Moving drive components
affect the sensor.
• Avoid fluorescent lights in
the detection area.
• The installation conditions
may limit the program-
ming options and the
functions of the sensor.
6
Mounting
Attach the self-adhesive
template and drill according
to the hole pattern.
Guide the cable through the
opening provided.
Fasten the baseplate using
the screws (screws are in
the housing).
Can be mounted on the
ceiling using the rain protec-
tion cover.
Connecting the sensor
Connect the cable
to the terminal as follows:

white

brown

green

yellow
Replacing the cover
Attach the cover on the top
and press down until it snaps
into place.
2.20 m
30°
Max
Width: 4.50 m
Depth: 2.00 m
Width: 2.00 m
Depth: 4.50 m
* DORMA recommends
installing a weather cap
for outdoor applications
Accessories
Remote control
Rain protection cover
= GND
1
= 12 - 36 V DC/
2
12 - 28 V AC
3
= COM
4
= NO/NC
click
