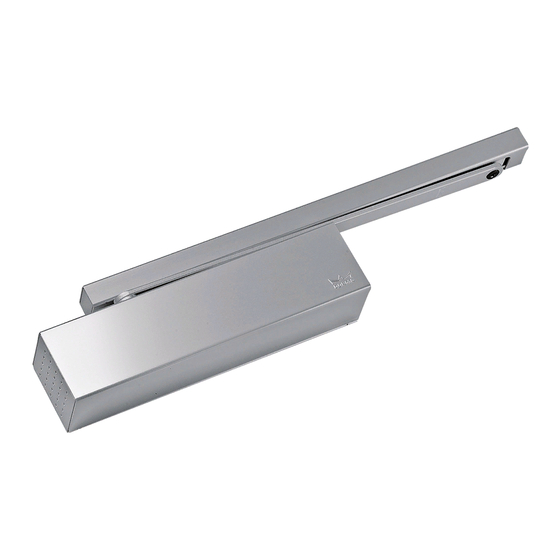

- Page 1 TS93 STH — Surface applied door closer Installation instructions: Pull side door mounted spring track Inverted closer with hold open (STH)
- Page 2 Template is for 4-1/2 x 4-1/2 butt hinges & 3/4" offset pivots Maximum door opening degree is 110°. Minimum door width is 36". DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08280611 06/14 Reamstown, PA 17567...
- Page 3 Right hand door (RH) Hinge Hinge Right hand reverse Left hand reverse door (RHR) door (LHR) Exterior side of door DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08280611 06/14 Reamstown, PA 17567 Fax: 800-274-9724 Subject to change without notice...
- Page 4 M6x20 socket head cap screw (2) using an M5 hex key. Be sure the main arm is parallel to the door during application. Right hand door DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08280611 06/14 Reamstown, PA 17567...
- Page 5 5.1 Align the arm (1) with the hold open slide shoe in the 5.2 Attach with one 3/8-24 x 1/2" shoulder bolt (2) using an track channel. M5 hex key. DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08280611 06/14...
- Page 6 TS9356 3'6" TS9356 NOTE: Supplied with a size 6 spring setting. 4'6" Increase force: turn clockwise 6 times (max) DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08280611 06/14 Reamstown, PA 17567 Fax: 800-274-9724 Subject to change without notice...
- Page 7 1.1 Snap both end covers (1) into place. 1.3 Attach with a 4-40 Phillips pan head screw (4). 1.2 Remove the un-needed tab (2), and snap the closer body cover (3) into place. DORMA USA, Inc. Dorma Drive, Drawer AC Toll-Free: 800-523-8483 E-mail: dormaarchitectural@dorma.com 08280611 06/14...
- Page 8 DORMA USA, INC. DORMA DRIVE, DRAWER AC REAMSTOWN, PA 17567 TOLL-FREE: 800-523-8483 FAX: 800-274-9724 E-MAIL: DORMAARCHITECTURAL@DORMA.COM WWW.DORMA-USA.COM...
