RIVATECH RC3502SV-7311 Quick Start Manual

Quick Start Guide
Before operating the unit, please read this manual thoroughly and
keep this for future reference.
Please access our website and download necessary IPAdminTool first:
http://www.rivatech.de/en/downloads/software
SV3502(73NIR)04-2017-A
About the manual
This manual provides the brief instructions for the installation
and the basic configuration of your IP device. For more
information about the installation and configuration, refer to the
device's installation guide and the web page user's manual.

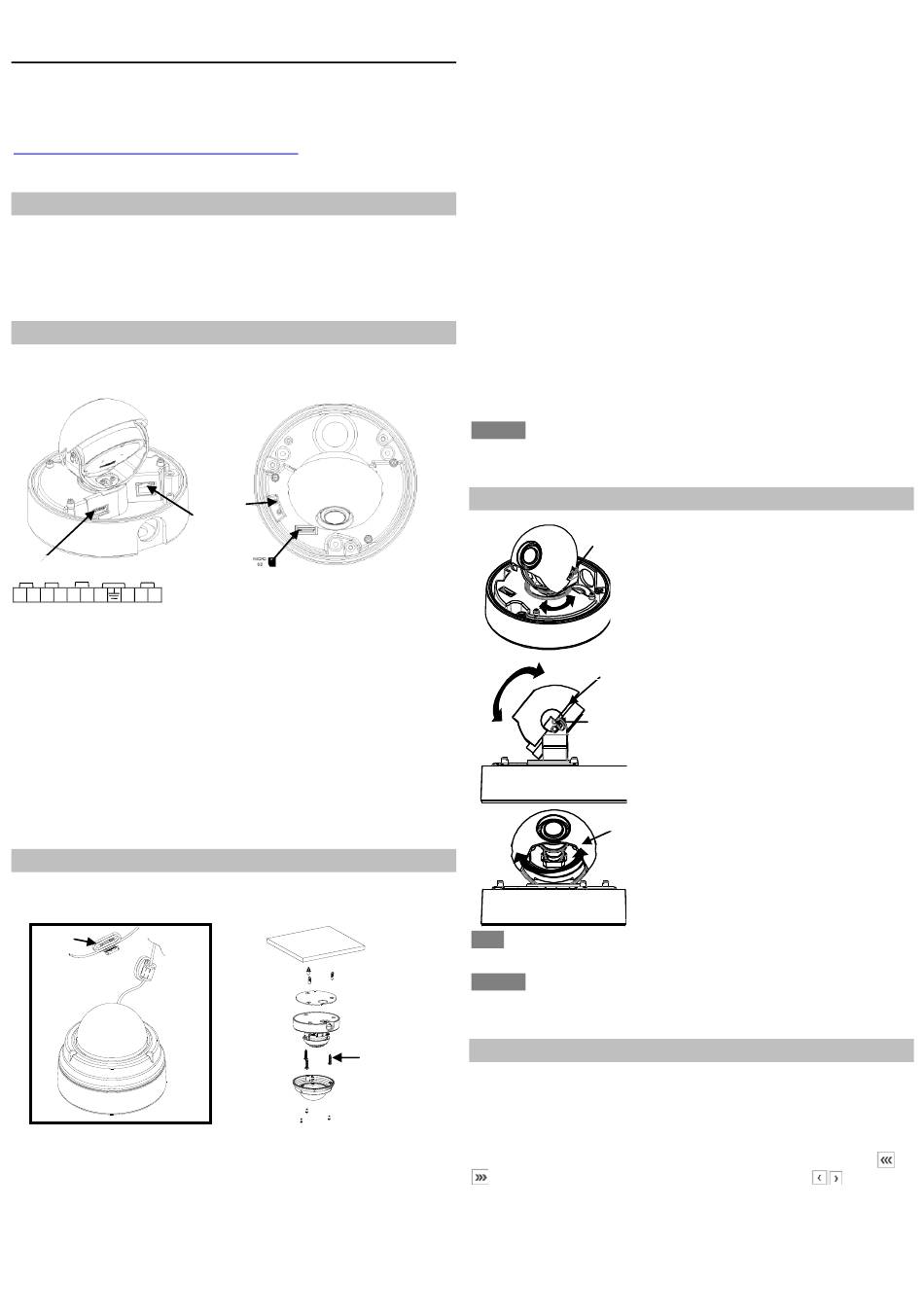

Part names and functions
Please check the name and the position of each part by
referring to the following images.
Ethernet
connector
Terminal connector
Reserved DO DI AUDIO DC 12V
X X C 1 C 1 O I - +
Terminal Connector: Connect the provided terminal block for cable
connection of digital input/output, audio input/output, and DC12V
power.
Ethernet Connector: Connect an RJ-45 LAN cable for 10/100 Base-T
Ethernet (PoE supported).
Reset Button: Press the button either for the restart or the factory
default of the device. For restart,
seconds while the device is powered on.
to reboot. For factory default,
2.
the device is powered on.
mircoSD/SDHC Card Slot: Insert a card up to 32GB.
Class 4 or the above is recommended for HD recording.
Installation
There is only one type of mounting explained in this manual. Refer
to the device's installation guide for more various mounting types.
2 turns
ETHERNET
WIRE
1) Place the installation template included in the package on a
desired installation surface.
2) Drill three holes for the plastic anchors based on the template
paper, and insert the plastic anchors into the holes. (In case you
need to connect the cables through the mounting surface, drill an
additional hole to pass the cables based on the size of the cable
entry hole.)
3) Attach the provided silicon waterproof band to the bottom of
the camera body for the prevention of water permeation.
RESET
MICRO
SD
RESET
MICRO
SD
Reset
button
micro
SD/SDHC card slot
1.
press the button only for 2
2.
Wait for the system
1.
press the button for 10 second while
Wait for the system to reboot.
M4x30 screw
DO DI DC12V
C 1 C 1
DO DI DC12V
C 1 C 1
4) Open the dome cover with the provided L wrench (3mm),
install the provided ferrite core to the LAN cable by referring to
the squared image on the bottom left of this page, and connect
all the necessary cables dropped from the ceiling to the
corresponding connectors on the camera.
5) Prepare the screws (M4x30) with the O-rings inserted. Then,
place the camera body to match the alignment holes with the
corresponding plastic anchors, insert the O-ring inserted screws
into the screw holes on the camera body, and tighten them into
the plastic anchors with a screw driver.
6) Adjust the angle of the camera. Refer to the section,
Adjusting angle of camera for more information.
7) Adjust zoom and focus of the camera. Refer to Adjusting
zoom and focus for more information.
8) Reattach the dome cover to the camera body by aligning the
alignment marks on both the dome cover and the camera body.
9) Once the dome cover and the camera body are properly
DO DI DC12V
C 1 C 1
aligned, tighten the bolts on the dome cover into the camera
ETHERNET
body with the provided L wrench for the firm attachment. Then,
remove the protection film from the dome cover.
DO DI DC12V
C 1 C 1
RESET CAUTION
To prevent from damage, place the camera on a stable and non-
vibrating surface.
MICRO
SD
Adjusting angle of camera
gimbal
bracket
gimbal
tilt
stopper
inner liner
NOTE
Tighten the tilt stopper after the tilt angle is confirmed.
CAUTION
Refrain from continuous rotation of the camera gimbal to a single
direction as it is linked with an internal cable.
Adjusting zoom and focus
RESET
ETHERNET
The zoom and focus can be managed via the camera's web page
MICRO
SD
(path: Setup > Video & Audio > Zoom/Focus). Thus, it is necessary to
RESET
connect the device on a network in advance to the zoom and focus
ETHERNET
adjustment.
MICRO
SD
- Adjust zoom/focus by clicking the arrow buttons: The buttons
move the lens more extensively than the buttons
- If you want to set the focus automatically, click One Click Focus.
- If the focus point is considered misaligned, reset it to a zero point
by clicking Calibrate.
DO DI DC12V
C 1 C 1
ETHERNET
DO DI DC12V
C 1 C 1
A. To pan, rotate the gimbal bracket
clockwise or counter-clockwise.
(The panning range is limited to 358 degrees.)
B. To tilt, tilt the gimbal by referring to
the image on the left.
C. For the horizontal rotation of the
lens, rotate the inner liner clockwise
or counter-clockwise.
(The rotating range is limited to 358 degrees.)
RESET
ETHERNET
MICRO
SD
ETHERNET
.
