RIVATECH RC5502HD-6415 Quick Installation Manual

Quick Installation Guide
Before installing and operating the unit, please read this manual
thoroughly and keep it for future reference.
Please access our website and download necessary IPAdminTool first:
http://www.rivatech.de/en/downloads/software
XC5502641505-2016-A
About the manuals
This manual provides the instructions for the quick installation
and the basic configuration of your IP device. For more detailed
information about the configuration, refer to the camera's
installation guide and the web page user's manual.

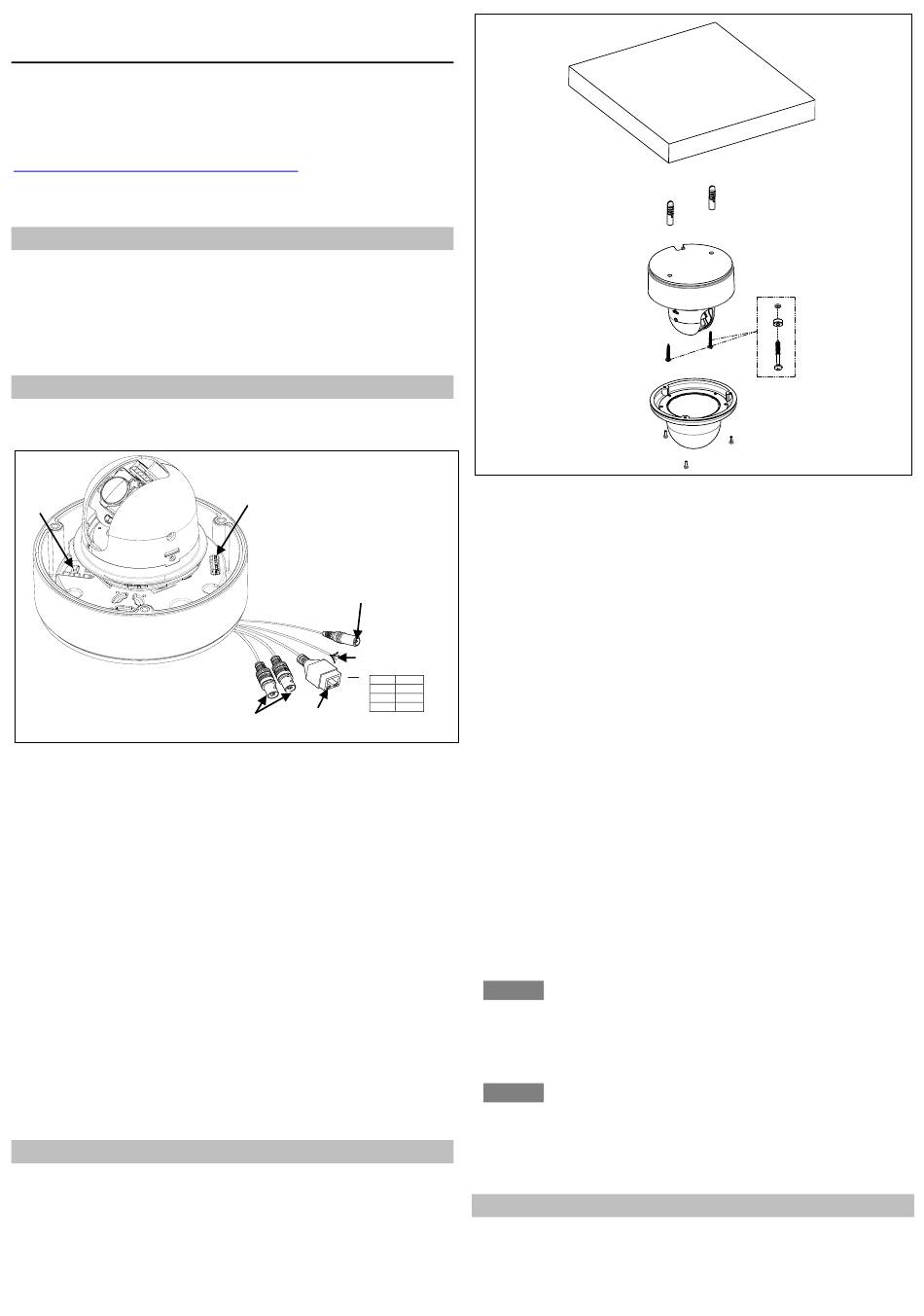

Part names and functions
Please check the name and the position of each part by
referring to the following image.
Reset
RESET
button
Audio input/output
Reset button: Press the button either for the restart or the factory
default of the device. For restart,
seconds while the device is powered on.
to reboot. For factory default,
while the device is powered on.
microSD card slot: Insert a microSD card up to 32GB. Class 4 or the
above is recommended for HD recording.
Audio input/output connectors: Connect a microphone and a
speaker. The audio input connector is in yellow and the audio
output connector is in red. Refer to the camera's installation guide
for more information.
LAN connector: Connect an RJ-45 LAN cable for 10/100 Base-T
Ethernet (PoE supported).
Sensor/Alarm connection cables: Connect a sensor and an alarm
device by referring to the electric characteristics on the table above.
For more information, refer to the camera's installation guide.
DC12V power connector: Connect the provided DC12V adaptor for
power supply. Refer to the camera's installation guide for more
information.
Installation
There are several mounting methods using various types of accessories
for this device. However, only one mounting method (direct mount
to the installation surface) is introduced in this quick start guide,
and refer to each bracket's installation guide for the other
mounting types.
microSD card slot
MICRO SD CARD
DC12V power connector
DC Jack
Sensor/Alarm
Red DO N.O
Black DO COM
connection cables
White
DI
Yellow DI COM
DIN +
Red
Yellow
GND
ETHERNET
Audio in
Red Black
DOUT - PURPLE
Audio out
DOUT + BLUE
White
LAN connector
Yellow
connectors
1.
press the button only for 2
2.
Wait for the system
1.
press the button for 10 second
2.
Wait for the system to reboot.
1) Place the installation template included in the package on the
desired installation surface.
2) Drill two holes based on the template paper, and insert the
plastic anchors into the holes.
2-1) In case of connecting cables directly through the installation
surface: Drill a cable hole on the surface based on the locations
of the two plastic anchors.
3) Take out the screws included in the package, and insert the O-
rings under each screw's head by referring to the squared image
above.
WHITE
DO N.O
ORANGE
4) Open the dome cover by loosening the screws with the Torx
DO COM
DI
wrench included in the package.
DI COM
5) Connect all the necessary cables including a LAN cable and a
power cable to the camera, and neaten the cables.
6) Place the camera bottom to align with the plastic anchors on
the installation surface.
7) Insert the O-ring attached screws through the camera bottom
into the plastic anchors on the installation surface, and tighten
them for the camera's firm attachment.
8) Place the dome cover on the main body by aligning the three
alignment holes with the alignment holes on the camera's main
body.
9) Once the two parts are aligned, tighten the screws into the
camera's main body.
CAUTION
Sealing gaps is recommended as gaps may appear after the
camera installation. Gaps may cause problems such as moisture
formation, water leakage and etc., which negatively affect the
operation of the camera if gaps appear but remain unsealed.
CAUTION
To prevent products from damage, place the camera on a stable
and non-vibrating surface. If the stability is in doubt, consult
safety personnel for reinforcements, and then proceed with the
installation.
Adjusting angle, zoom and focus
The angle, zoom and focus of the camera are fully controlled via the
camera's web user interface. Refer to the provided webpage user's
manual for the instructions.
