Quick Start Guide
This manual provides instructions for quick installation and basic configuration of your IP device.

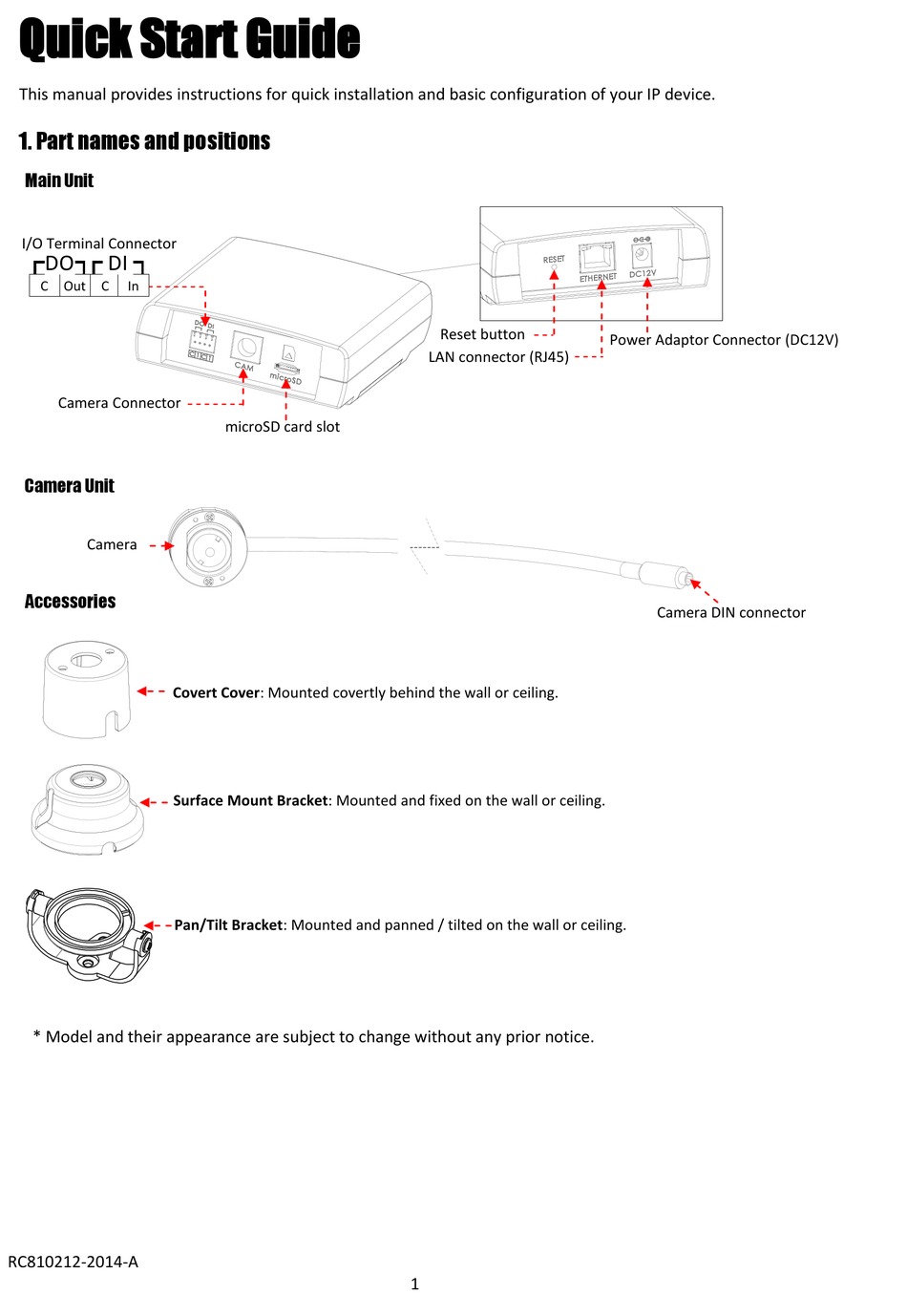

1. Part names and positions
Main Unit
I/O Terminal Connector
DO
DI
C
Out
C
In
DO
DO
Camera Connector
Camera Unit
Camera
Accessories
Covert Cover: Mounted covertly behind the wall or ceiling.
Surface Mount Bracket: Mounted and fixed on the wall or ceiling.
Pan/Tilt Bracket: Mounted and panned / tilted on the wall or ceiling.
* Model and their appearance are subject to change without any prior notice.
RC810212-2014-A
microSD card slot
Reset button
LAN connector (RJ45)
1
Power Adaptor Connector (DC12V)
(DC12V)
Camera DIN connector
Advertisement
Table of Contents
Related Manuals for RIVATECH RC 8102HD
Summary of Contents for RIVATECH RC 8102HD
-
Page 1: Quick Start Guide
Quick Start Guide This manual provides instructions for quick installation and basic configuration of your IP device. 1. Part names and positions Main Unit I/O Terminal Connector Reset button Power Adaptor Connector (DC12V) LAN connector (RJ45) (DC12V) Camera Connector microSD card slot Camera Unit Camera Accessories... - Page 2 2. Install the camera unit with a bracket Covert Installation Top screw (Behind the wall or (Behind the wall or above the ceiling) above the ceiling) Covert Cover Cable clamp M4x20 tapping screw M3x20 tapping screws 1) Drill a hole with 3 mm diameters on a desired spot where the camera will be located. 2) Peel off one side of the double-sided tape (included in the package), attach it to the flat surface of the covert cover, and stick the taped side to the installation surface while aligning the covert cover with the drilled hole on the installation surface and facing the top screw to the upper direction.
- Page 3 3. Install the main unit M4x25 Slide plate tapping screw 1) Pull out both slide plates at the bottom of the main unit. 2) Place the main unit on the installation surface by facing the bottom of the main unit toward the installation surface, and mark the drilling spots based on the alignment holes on the slide plates.
-
Page 4: Set Up Network Environment
IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. IPAdminTool and the manual can download from www.rivatech.de homepage. To modify the device’s default IP address for customized network area;... - Page 5 Give new unique IP address in last two sets and mirror other PC environment Info information in other boxes 3. In the IP Setup’s window, information under Local Network information displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device.
-
Page 6: Factory Default
More Information To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys User Manual (Online Help)”, which is available on www.rivatech.de homepage. 7. Reboot Perform the following procedures to reset your device: 1. - Page 7 The factory default settings can be inferred as follows: IP address: 192.168.xx.yy Network mask: 255.255.0.0 Gateway: 192.168.0.1 Note User ID: root Password: pass 9. Safe Mode Your device will get restarted with safe mode when the device does not completely boot certain times. The errors are mainly caused by these two factors: power source unplugged or damage occurred on firmware file during the system boot.
- Page 8 Hexadecimal-Decimal Conversion Table Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec RC810212-2014-A...
