Summary of Contents for Extech Instruments 433201A

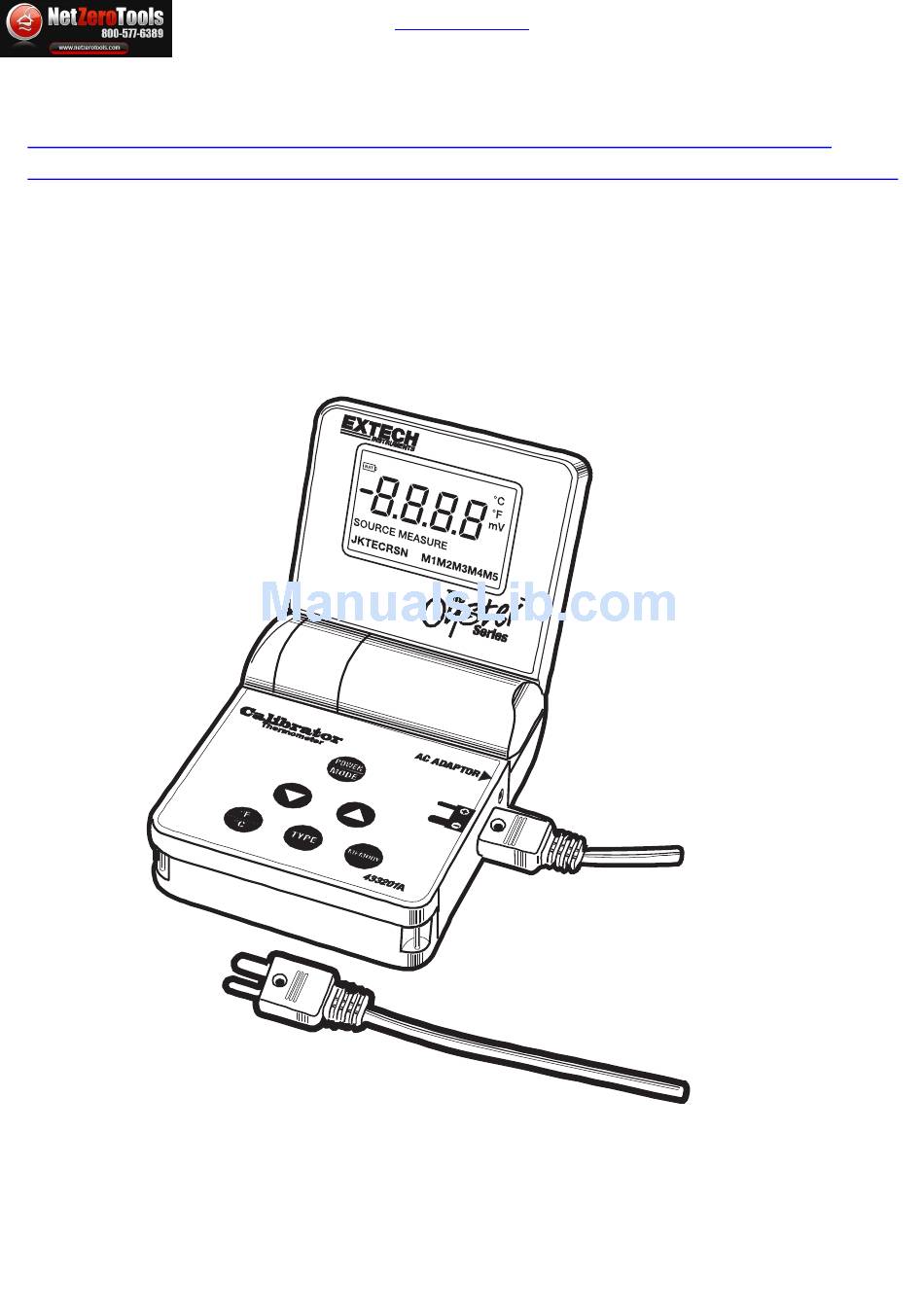

- Page 1 User's Guide Extech 433201 Multi-Type Calibrate Thermometer Thermocouple Type K-J Extech 433201-NIST Multi-Type Calibrate Thermometer Thermocouple Type K-J Microprocessor Calibrator/Thermometer Models 433201A and 433202A netzerotools.com...
- Page 2 Introduction Congratulations on your purchase of the Extech 433201A (115V) or 433202A (220V) Microprocessor Thermocouple Calibrator/Thermometer. In the ‘Measurement’ mode, a millivolt (mV) signal is accepted from a thermocouple and is displayed on the 4-digit LCD display. A built-in temperature offset feature can be used to compensate for variations found in standard thermocouples.
- Page 3 Battery compartment – Houses the supplied 9V Nickel Metal Hydride rechargeable battery. An alkaline battery can also be used. 10. Neck Strap Posts- Attach the neck-strap to the two posts on the front corners of the meter. 433201A-EN v1.6 07/13 netzerotools.com...
-
Page 4: Measurement Mode
Use the ▼/▲ buttons to adjust the offset from -9.0 to 9.0 F (-5.0 to 5.0 Press and hold the ▼/▲buttons together for less than 2 seconds to save the offset and return to Measurement Mode. 433201A-EN v1.6 07/13 netzerotools.com... -
Page 5: Auto Power Off
When the meter is turned on, the auto power off function is enabled. It will automatically shut the meter off 10 minutes after the last button press. To disable Auto Power Off, press and hold the TYPE button for 2 seconds until “nAtP” is displayed. 433201A-EN v1.6 07/13 netzerotools.com... - Page 6 4. Plug the charge/adaptor into an AC outlet source. 5. Charge the battery for 24 to 48 hours before its first use. An overnight charge will enable continuous use for approximately 45 minutes. A full charge will provide one hour of continuous use. 433201A-EN v1.6 07/13 netzerotools.com...
-
Page 7: Specifications
K- type Thermocouple cable (yellow) terminated with sub-miniature connectors, 9V Nickel Metal Hydride rechargeable battery, neck-strap, AC adaptor/charger, carrying case. Dimensions 4.7 x 3.8 x 1.8” (118 x 96 x 45mm) Weight 15 oz. (426g) 433201A-EN v1.6 07/13 netzerotools.com... - Page 8 Warranty FLIR Systems, Inc. warrants this Extech Instruments brand device to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department for authorization. Visit the website for contact information. A Return Authorization (RA) number must be issued before any product is returned. The sender is responsible for shipping charges, freight, insurance and proper packaging to prevent damage in transit. This warranty does not apply to defects resulting from action of the user such as misuse, improper wiring, operation outside of specification, improper maintenance or repair, or unauthorized modification. FLIR Systems, Inc. specifically disclaims any implied warranties or merchantability or fitness for a specific purpose and will not be liable for any direct, indirect, incidental or consequential damages. FLIR’s total liability is limited to repair or replacement of the product. The warranty set forth above is inclusive and no other warranty, whether written or oral, is expressed or implied. Calibration, Repair, and Customer Care Services FLIR Systems, Inc. offers repair and calibration services for the Extech Instruments products we sell. NIST certification for most products is also provided. Call the Customer Service Department for information on calibration services available for this product. Annual calibrations should be performed to verify meter performance and accuracy. Technical support and general customer service is also provided, refer to the contact information provided below. 433201A-EN v1.6 07/13 netzerotools.com...
