Summary of Contents for EL-CELL PAT-Heater-4

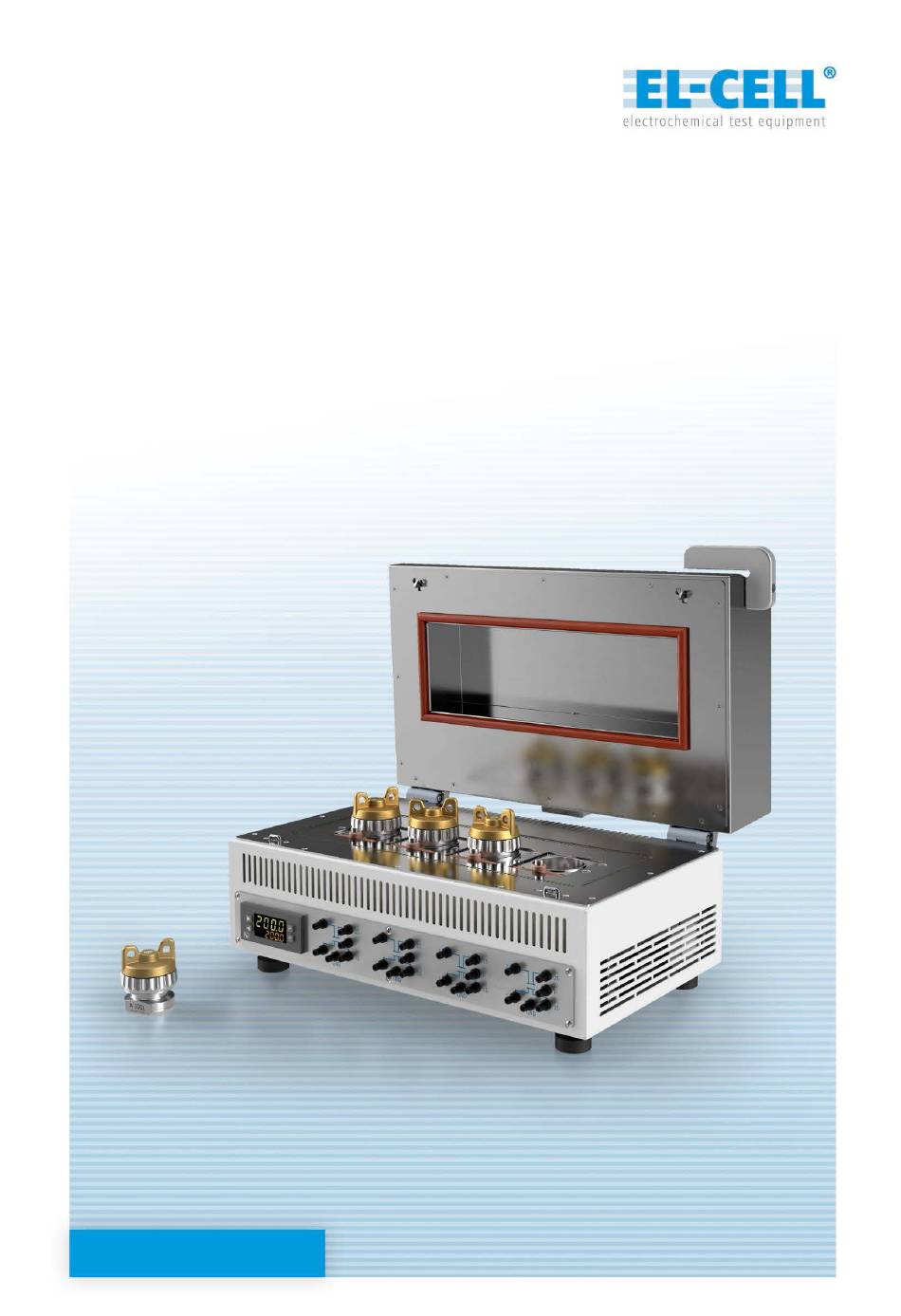

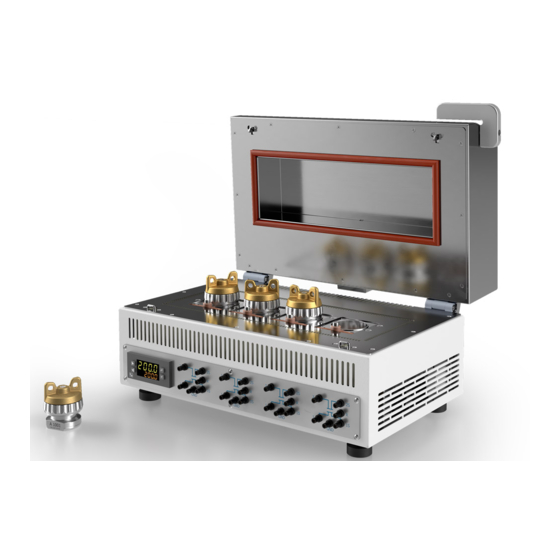

- Page 1 Quick Start Guide Release 1.0 PAT-Heater-4 Docking station for PAT-Cell-HT test cells © 2019 EL-CELL GmbH...
- Page 2 The information in this manual has been carefully checked and believed to be accurate; however, no responsibility is assumed for inaccuracies. EL-Cell GmbH maintains the right to make changes without further notice to products described in this manual to improve reliability, function, or design. EL -Cell GmbH does not assume any liability arising from the use or application of this product.
-
Page 3: Table Of Contents
Quick Start Guide PAT-Heater-4 Content 1 Product Description ............................4 2 Technical Data ..............................5 3 Installation............................... 6 4 Operation ................................ 6 5 Test cell insertion and removal ......................... 9 6 Cleaning ................................9 Unpacking ................................10 Spare Parts ................................. 10 Technical Support ............................ -
Page 4: Product Description
The working temperature is adjustable from 10°C above ambient temperature up to 200°C. The PAT-Heater-4 saves wiring effort, because it is not necessary to renew the connection between cell and potentiostat for every battery test. At the same time, the easy-to-access banana sockets at the side of the docking station allow to choose between full and half cell control. -
Page 5: Technical Data
Quick Start Guide PAT-Heater-4 2 Technical Data Dimensions: 119 mm (width) x 301 mm (depth) x 84/114 mm (height without/ with PAT-Cells) Ambient temperature: 0 to 40°C Humidity: non condensing Weight: 0.67/3.00 kg (without/with PAT-Cells) IP-Protection Class: EN 60529 IP20 ... -
Page 6: Installation
Adapter male 4 mm to female 2 mm 4 Operation 4.1 Temperature control Control display The display at the front of the PAT-Heater-4 shows the actual and the setpoint temperature. Page 6 of 11 Release 1.0... - Page 7 Adjustment (increase) of the setpoint value Adjustment (decrease) of the setpoint value Change of system parameters. Warning: The FNC button allows changes to critical system parameters and limits. EL-CELL is not liable for damages caused by the misuse of these functions! Confirms the setpoint value.
- Page 8 PAT-Heater-4 4.2 Connection to an external potentiostat Connect the cell cable of your potentiostat to the banana sockets at the front of the PAT-Heater-4. For the different operation modes, see the table below. Operation mode 1: Cell voltage control (1 vs 2)
-
Page 9: Test Cell Insertion And Removal
5 Test cell insertion and removal For insertion of a PAT-Cell-HT into a socket of the PAT-Heater-4, align the flat side of the test cell with the flat side of the corresponding socket. Then insert the test cell, and press firmly down. -
Page 10: Unpacking
Check the contents of the packages against the list given below to verify that you have received all of the required components. Contact EL-CELL, if anything is missing or damaged. NOTE: Damaged shipments must remain within the original packaging for freight company inspection. -
Page 11: Technical Support
10 Warranty For a period of one year from the date of shipment, EL-Cell GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labor, or, at the Seller’s option, demand return...
