- Page 1 User Manual Release 1.3 PAT-Stand-4 Docking station © 2017 EL-CELL GmbH...
- Page 2 The information in this manual has been carefully checked and believed to be accurate; however, no responsibility is assumed for inaccuracies. EL-CELL GmbH maintains the right to make changes without further notice to products described in this manual to improve reliability, function, or design. EL -CELL GmbH does not assume any liability arising from the use or application of this p roduct.
-
Page 3: Table Of Contents
User Manual PAT-Stand-4 Content 1 Product Description ............................4 2 Technical Data ..............................5 3 Installation............................... 5 4 Cleaning ................................7 5 Unpacking ............................... 8 6 Spare Parts ..............................8 7 Technical Support ............................9 8 Warranty ................................9 Page 3 of 9... -
Page 4: Product Description

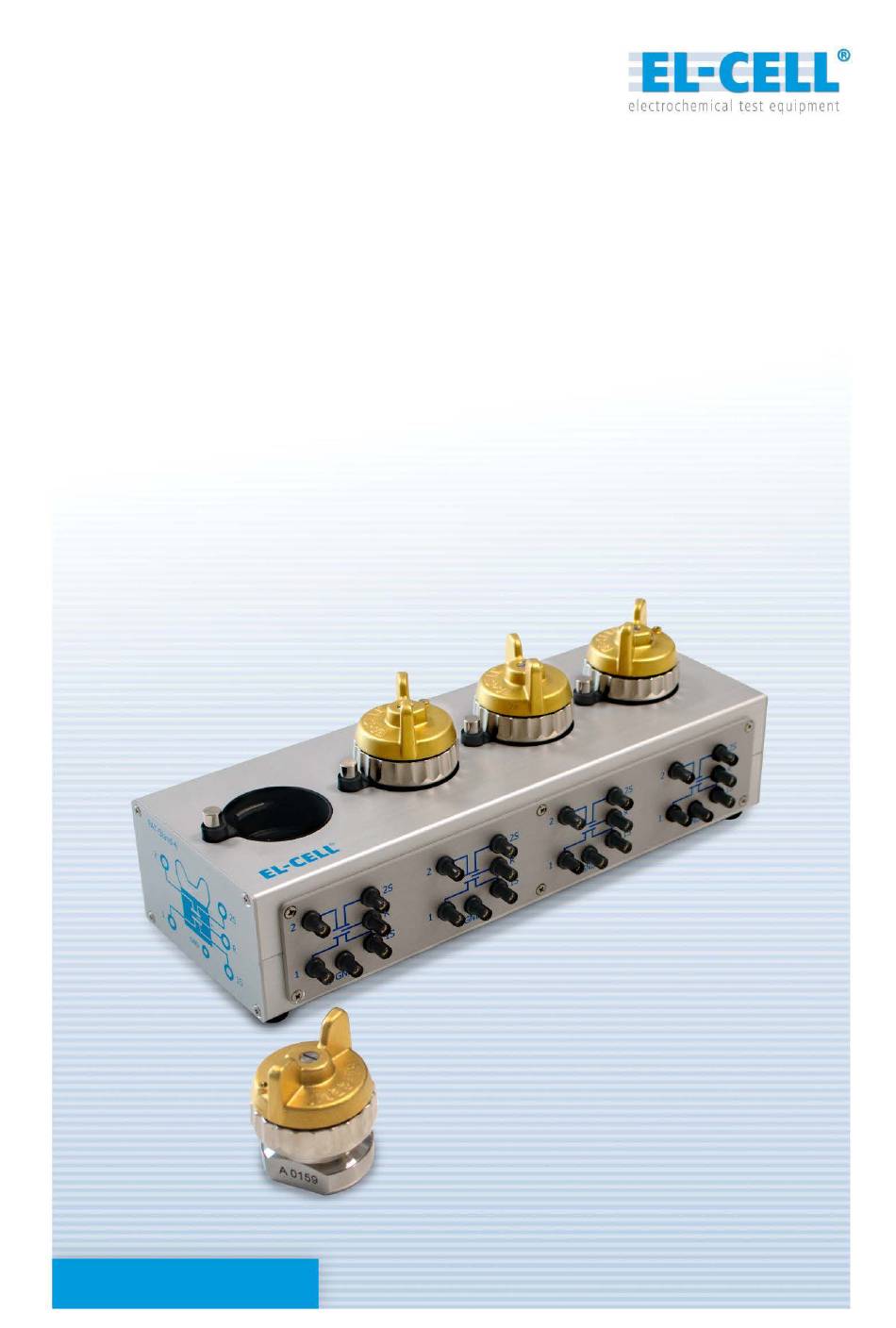

PAT-Stand-4 1 Product Description The PAT-Stand-4 is a docking station for the parallel use of up to four PAT-Cells. When docked into the PAT-Stand-4, the PAT-Cells may be tested by any potentiostat or battery tester. The PAT-Cell and the PAT-Core concept are covered in detail by other manuals (http://el-cell.com/downloads/downloads-manuals). -
Page 5: Technical Data
IP-Protection Class: EN 60529 IP20 3 Installation The PAT-Stand-4 should be placed on a flat, dry and clean surface, for example on a bench top, inside a temperature chamber or a glove box. 4 mm banana socket Adapter... - Page 6 User Manual PAT-Stand-4 Operation modes Connect the cell cable of your potentiostat to the banana sockets at the front of the PAT-Stand-4. For the different operation modes, see the table below. Operation mode 1: Cell voltage control (1 vs 2)
-
Page 7: Cleaning
Green cable Grey cable Red cable White cable (i.e. PARSTAT 2273) 4 Cleaning Wipe the PAT-Stand-4 with a moist tissue. Do not use aggressive chemicals for cleaning. Protect the PAT-Stand-4 from dust and moisture. Page 7 of 9 Release 1.3... -
Page 8: Unpacking
Check the contents of the packages against the list given below to verify that you have received all of the required components. Contact EL-CELL, if anything is missing or damaged. NOTE: Damaged shipments must remain within the original packaging for freight company inspection. -
Page 9: Technical Support
8 Warranty For a period of one year from the date of shipment, EL-CELL GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labor, or, at the Seller’s option,...
