Version: 2021-9-13
INFRARED HEATER
Models
CALORE-BIANCO-1500 C1500B CH15A7R
CALORE-BIANCO-1800 C1800B CH18A7R
CALORE-BIANCO-2400 C2400B CH24A7R
CALORE-BIANCO-3200 C3200B CH32A7R
CALORE-NERO-1500 C1500N CH15A7R BLACK
CALORE-NERO-1800 C1800N CH18A7R BLACK
CALORE-NERO-2400 C2400N CH24A7R BLACK
CALORE-NERO-3200 C3200N CH32A7R BLACK
Advertisement
Table of Contents
Related Manuals for SINED CALORE-BIANCO-1500
Summary of Contents for SINED CALORE-BIANCO-1500

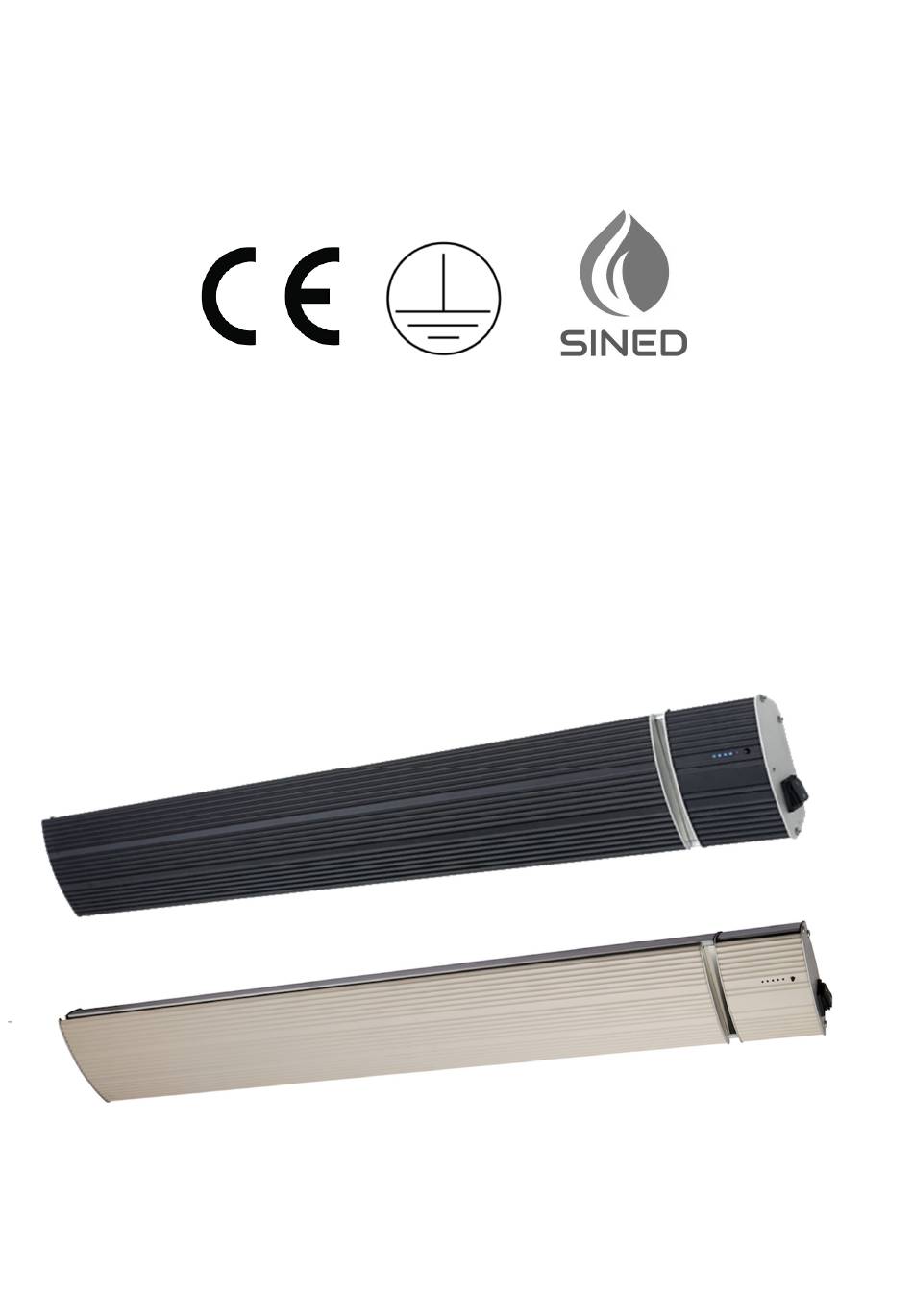

- Page 1 Version: 2021-9-13 INFRARED HEATER Models CALORE-BIANCO-1500 C1500B CH15A7R CALORE-NERO-1500 C1500N CH15A7R BLACK CALORE-BIANCO-1800 C1800B CH18A7R CALORE-NERO-1800 C1800N CH18A7R BLACK CALORE-BIANCO-2400 C2400B CH24A7R CALORE-NERO-2400 C2400N CH24A7R BLACK CALORE-BIANCO-3200 C3200B CH32A7R CALORE-NERO-3200 C3200N CH32A7R BLACK...
- Page 2 The photo is only indicative, the actual may appear slightly different in colour.
-
Page 3: What's In The Box
IMPORTANT INFORMATION Please read the operating instructions carefully before installing and using the infrared heater. This user manual contains important information for your safety as well as recommendations on the correct use and maintenance of the appliance. WHAT'S IN THE BOX ... - Page 4 Do not work with the cable wound in a spiral as this could cause heat accumulation, which could be dangerous. The use of an extension cord with this appliance is not recommended. Do not allow the cable to come into contact with heated surfaces during operation. ...
-
Page 5: How To Operate The Heater
HOW TO OPERATE THE HEATER General Drawing Heater radiant surface Heater operation indicator Brackets for wall or ceiling mounting Power cables and plug. Remote control Technical specifications CALORE- CALORE- CALORE- CALORE- BIANCO/NERO- BIANCO/NERO- BIANCO/NERO- BIANCO/NERO- MODEL NAME 1500 1800 2400 3200 CH15A7R CH18A7R... -
Page 6: Operation
Heating area (M2) The radiator panel heater produces radiant heat that heats objects rather than air. Therefore, it is imperative that the objects to be heated (i.e. people) are inside the surface directly radiated by the heater. The following diagrams show the approximate heating area based on a closed indoor and outdoor environment. The diagram shows that the maximum heat output is directly below the heater and the temperature decreases as the user moves away from the heater. - Page 7 Operations: 1. Insert 2 AAA batteries into the remote control (not included) 2. Plug the power cord of the appliance into the socket and press the Main power switch in position I (figure 1), the appliance emits an acoustic signal, the heating status light turns blue and flashes, the appliance is switched on in standby mode, but does not heat up yet (figure 3.
-
Page 8: Installation
Timer: Press the time zone buttons on the remote control (figure 8) to activate the delay switch-off timer. For example, point the remote control directly at the receiver and press the "1" button, the first bulb on the right will turn white (figure 9), the unit will automatically turn off after 1 hour and return to standby mode. - Page 9 Warning: The heater must never be installed in an upward or inward facing position, the heating surface must always be positioned so that the heat is directed downwards or outwards. Authorizations Minimum distances when mounting the heater on A VERTICAL WALL.
- Page 10 Installation process WARNING! The installation of the infrared heater and its connection to the power supply must only be carried out by qualified specialists in accordance with the electrical installation regulations and the safety regulations of the power supply system. 1.
- Page 11 7. Hang the heater from the brackets and secure it firmly in place with the mounting bracket locking plates by tightening the bolts. NOTE: Depending on the material and design of the structural elements of the ceiling or wall, the heater must be fixed with the correct fasteners.
-
Page 12: Maintenance
heater. MAINTENANCE • Maintenance should only be carried out by a qualified electrician. • During operation it is necessary to periodically (once a year) check the electrical cable contacts and terminal connectors for proper tightening. • If the heater gets dirty, wipe off the dust with a damp cloth, the parts radiants must be cleaned cold with a soft damp cloth. WARNING! ... -
Page 13: Wiring Diagram
RONGGUI, SHUNDE, FOSHAN, GUANGDONG, CHINA Made in China Imported in Italy by M.P.C. srl Via Pulci 15 20126 Milan Italy Tel +39 02 47758004 e-mail info@mpcshop.it website www.sinedtechnology.co m SINED trademark and SINED logo are registered by SINED VENTAS ONLINE S.L.U. EUTM 018196373...
