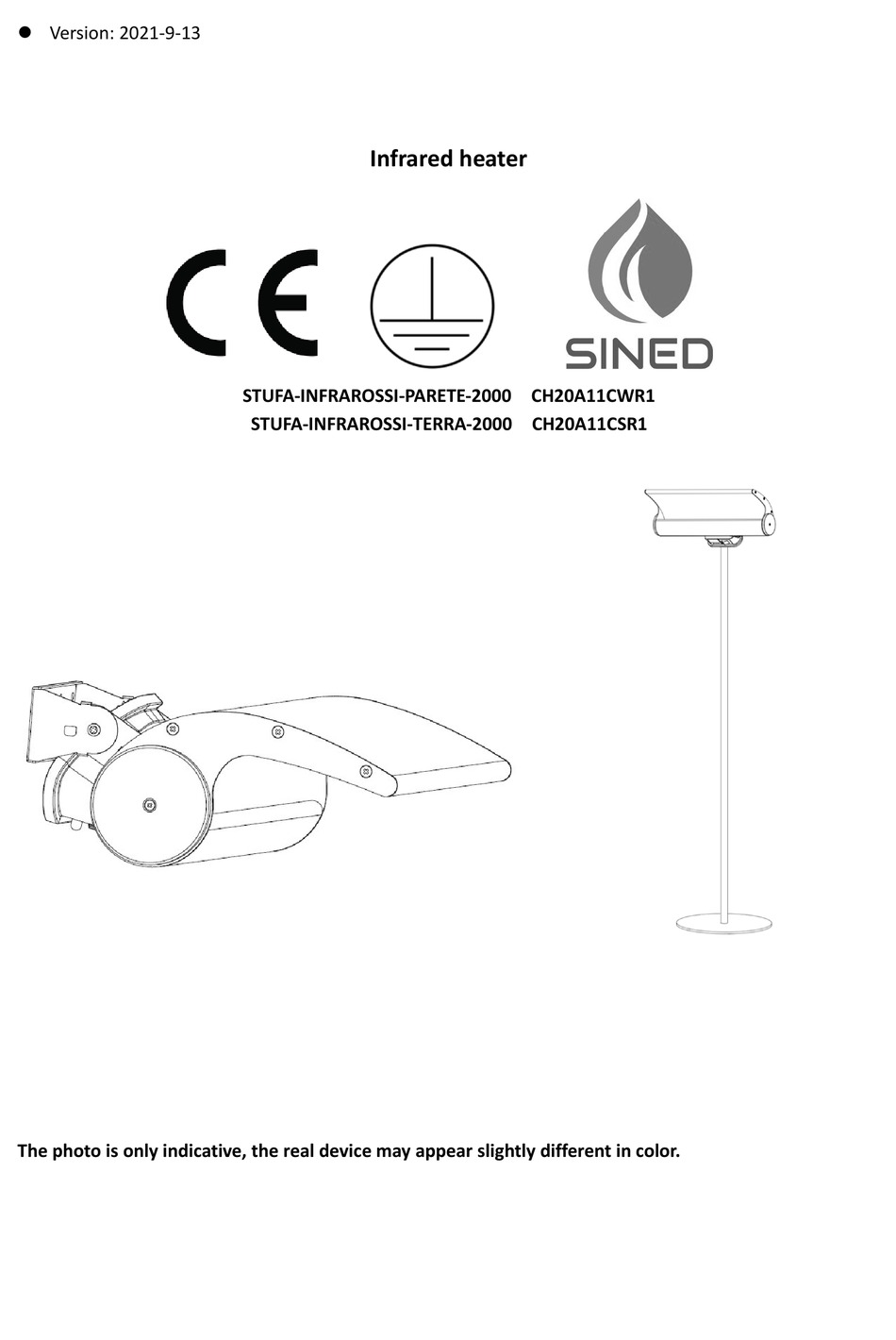

- Page 1 Version: 2021-9-13 Infrared heater STUFA-INFRAROSSI-PARETE-2000 CH20A11CWR1 STUFA-INFRAROSSI-TERRA-2000 CH20A11CSR1 The photo is only indicative, the real device may appear slightly different in color.
-
Page 2: Safety Instructions
Specification STUFA-INFRAROSSI-PARETE-2000 STUFA-INFRAROSSI-TERRA-2000 Model n. CH20A11CWR1 CH20A11CSR1 Installation Wall mounted Standing Voltage 230-240V~, 50Hz 230-240V~, 50Hz Power(W) 2000 2000 Installation Wall Standing Heater size: 596*135*320mm Product size(mm) 596*135*320 Base in dia. 500mm Height of assembled set:2100mm Insulation Class I Class I... - Page 3 qualified persons to avoid danger. • Do not use the device with wet hands. • Use this unit only as described in this manual. Any other use is not recommended by the manufacturer and may cause fire, electric shock, or injury. •...
-
Page 4: Installation
2 INSTALLATION The STUFA-INFRAROSSI-PARETE-2000 heater is specifically designed for installation and use in outdoor environments such as verandas, terraces, patios, courtyards, porches, gazebos and other outdoor areas. 2.1 Safety distances required for installation Wall mounted STUFA-INFRAROSSI-PARETE-2000 (CH20A11CWR1) Caution: The unit should only be operated in a horizontal position with a maximum slope of ±5°. - Page 5 Operation mode with pedestal STUFA-INFRAROSSI-TERRA-2000 (CH20A11CSR1) Use the heater only on a flat, stable surface. Do not use the heater near curtains and other combustible materials. Do not heat the wall directly. The minimum distance between the wall and the heater must be more than 0.5 m;...
- Page 6 2.2 Installation for wall model: CH20A11CWR1 This heater is equipped with an adjustable angle stainless steel mounting bracket. 2.2.1 Install wall mounting bracket with 4 screws ST5 x 35mm (not supplied) and 4 plastic plugs (not supplied) 2.2.2 Insert the groove of the adjustable bracket, on the stop of the fixing bracket; 2.2.3 Lock the fixing bracket and the adjustable bracket with 2 pieces M6x16 Philips Bolt and wing nut;...
- Page 7 Fixing bracket 2.2.4. Attach the bracket to the ceiling or wall using dowels or fasteners suitable for your application (not included). NOTE: Depending on the material and design of the ceiling or wall structural elements, the heater must be fixed with the correct fasteners. The weight of each heater is 4.1 kg. The installation structure and hardware must be able to support 5 times the weight of each heater.

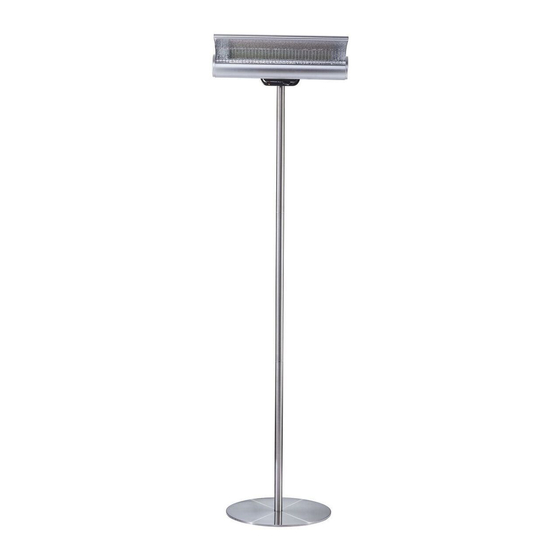

- Page 8 Installation for ceiling or wall suspension 2.3 Pedestal Installation (CH20A11CSR1) The CH20A11CSR1 contains the following components: Heater. Set of bases and poles Series Photo part Part Name Quantity Hexagonal wrench Hexagon head screw M6 x 40 Base Bottom pole...
- Page 9 Central pole Top pole Bracket Secure the Hardwire: M6 x 16 Philips bolt + spring washer + wing...
-
Page 10: How To Operate
3. HOW TO OPERATE STUFA-INFRAROSSI-PARETE-2000 STUFA-INFRAROSSI-TERRA-2000 CH20A11CWR1 CH20A11CSR1 The distance between the heater and the remote control should be less than 3 meters and the remote control should be pointed directly at the receiver. -
Page 11: Maintenance
Insert 2 AAA batteries into the remote control (not included). Connect the heater to a 230-240V~ 50Hz power outlet. Set the rocker switch to position II: the heater will start operating. Warning: The remote control cannot operate the heater at this stage. ... -
Page 12: Wiring Diagram
Address: N. 302 NINETEEN BUILDING, PHASE 3, RONGLI TIANFULAI INDUSTRIAL PARK, RONGGUI,SHUNDE,FOSHAN,GUANGDONG,CHINA Made in China Imported in Italy by M.P.C. srl Via Pulci 15 20126 Milan Italy Tel +39 02 47758004 e-mail info@mpcshop.it website www.sinedtechnology.com SINED trademark and SINED logo are registered by Sined Ventas Online S.L.U. EUTM 018196373...
