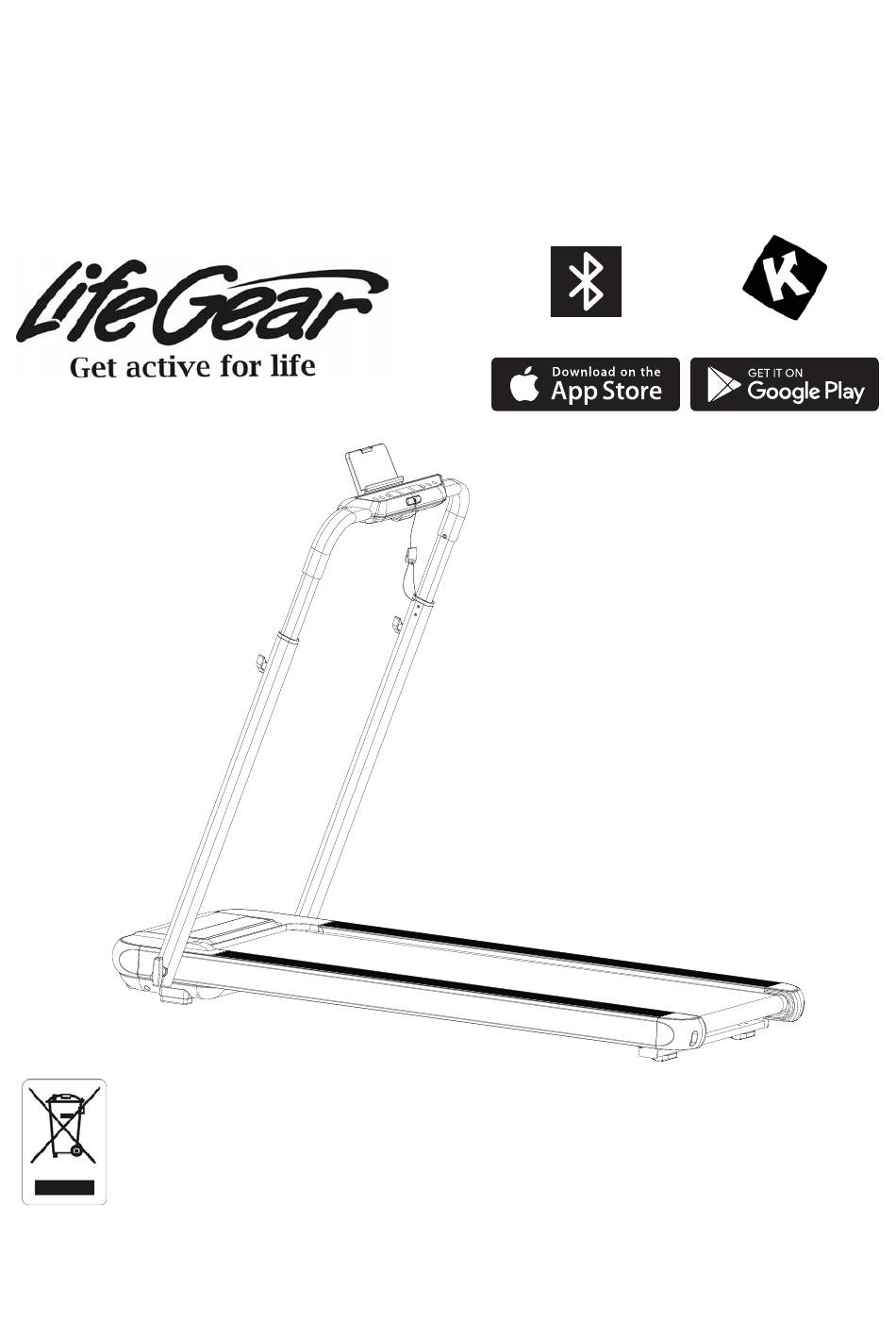

LEADER WALK
SMART PAD TREADMILL
ITEM NO: 97512
Bluetooth
Kinomap App
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo and are subject to change
without prior notice.
2021, Jan.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 97512 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Life Gear 97512

Summary of Contents for Life Gear 97512

  • Page 1 LEADER WALK SMART PAD TREADMILL ITEM NO: 97512 Bluetooth Kinomap App OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change without prior notice.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARRANTY -------------------------------------------------------------------------------- 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 PARTS LIST -------------------------------------------------------------------------------- 5 COMPONENTS --------------------------------------------------------------------------- 7 TOOL ---------------------------------------------------------------------------------------- 7 EXPLODED VIEW ------------------------------------------------------------------------ 8 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 9 STORAGE ---------------------------------------------------------------------------------- 14 ADJUSTMENT ----------------------------------------------------------------------------- 17 MOVING THE TREADMILL ------------------------------------------------------------ 17 OPERATING THE COMPUTER ------------------------------------------------------ 18 ERROR MESSAGES -------------------------------------------------------------------- 20 CARE, MAINTENANCE &...

  • Page 3: Warranty

    ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing free of charge, any parts which may prove to be defective under normal home use.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions, including the following important safety instructions should always be followed when using this treadmill. Read all instructions before using this treadmill. DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet immediately after using and before cleaning, assembling, or servicing the treadmill.
  • Page 5  Always hold on to the handrails while using the treadmill.  Do not leave children who are under 12 years-old unsupervised near or on the treadmill.  To disconnect, turn all controls to the off position, then remove plug from the wall outlet.

  • Page 6: Parts List

    PARTS LIST Description Description Mobile Device Holder 017 Power Socket Main Body of the Mobile 018 PC Plate Device Holder 1 Set 1B Mobile Device Clamp 019 Power Cord (L=1800 mm) 1C Elastic Band 020 Safety Tether Key Upper Computer Console 021 Running Belt (T1.6x460x2512mm) Upper Computer Running Deck...
  • Page 7 PARTS LIST Description Qty No. Description 042 Nylon Nut M6 6 058 Belt 390J6 Hexagon Socket Round Head Cap 2 059 Motor Bolt M6x60 044L Left Rear Roller Support 1 060 Pad 044R Right Rear Roller Support 1 061 Front Tube Frame Hexagon Socket Countersunk Cross Recessed Pan Head Bolt 8 062...

  • Page 8: Components

    COMPONENTS (1) Mobile Device Holder (19) Power Cord (L=1800 mm) (20) Safety Tether Key 1 Set 1 PC 1 PC TOOL Allen Wrench with Phillips Screwdriver 1 PC...

  • Page 9: Exploded View

    EXPLODED VIEW 40 36 37 35 36 37 67 68 35 36...

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Step 1 Remove the treadmill from the carton and place it on a level flat surface. Please always use the aid of a second person when removing the treadmill from the carton. Step 2 Turn both Knobs (30) in a counterclockwise direction until both Left and Right Handlebar Support Tubes (28, 29) can be lifted up.
  • Page 11 Bolt NOTE: Each end of Handlebar Support Tube has one protruding point which shall be placed Knob behind the Bolt. Protrude Point Handlebar Support Tube Step 3 Lift both Left/Right Handlebar Support Tubes (28, 29) up and lock them in place by tightening the Knobs (30) in a clockwise direction.
  • Page 12 Step 4 Remove both Handlebar Knobs (26) from both Left and Right Handlebar Support Tubes (28, 29). Push the Handlebar (10) all the way down and align the knob holes. Lock the Handlebar (10) in place by tightening the Handlebar Knobs (26) in a clockwise direction.
  • Page 13 (1) Mobile Device Holder 1 Set (19) Power Cord (L=1800 mm) 1 PC (20) Safety Tether Key 1 PC Step 5 Slide the Mobile Device Holder (1) into the slot of the Upper Computer Console (2). Install the Power Cord (19) to the power socket of the treadmill. Place the Safety Tether Key (20) onto the Upper Computer Console (2).
  • Page 14 Tool: Allen Wrench with Phillips Screwdriver Step 6 The running belt has been adjusted to the running deck at the factory before it was shipped. At times the running belt may get slippery during shipment. After the treadmill is completely assembled, use the Allen Wrench with Phillips Screwdriver to turn the both left and right rear roller adjustment bolts 1/4 turn clockwise before using the treadmill.

  • Page 15: Storage

    STORAGE Step 1 1-1: Remove both Handlebar Knobs (26) from both Left and Right Handlebar Support Tubes (28, 29). 1-2: Pull the Handlebar (10) all the way up and align the knob holes. Lock the Handlebar (10) in place by tightening the Handlebar Knobs (26) in a clockwise direction.
  • Page 16 Step 2 Pull out the Safety Tether Key (20) from the computer console. Turn both Knobs (30) in a counterclockwise direction until both Left and Right Handlebar Support Tubes (28, 29) can be pushed down.
  • Page 17 Step 3 Push both Left/Right Handlebar Support Tubes (28, 29) down and lock them in place by tightening the Knobs (30) in a clockwise direction. Step 4 The treadmill can fold flat to the floor for storage under a bed.

  • Page 18: Adjustment

    ADJUSTMENT Mobile Device Clamp For a secure and snug fit, pull the Mobile Device Clamp upward while placing your mobile device in open clamps. Make sure the mobile device is securely held. MOVING THE TREADMILL Handlebar Transport Wheel The unit can be carefully tilted onto its Transport Wheels for easy moving and storage. With the treadmill in the folded flat position, firmly grasp the Handlebar with both hands.

  • Page 19: Operating The Computer

    OPERATING THE COMPUTER Flip the Master Power Switch that is located at the front of the treadmill to the ON position. Before beginning a workout session ensure that the Safety Tether Key is properly placed onto the Computer Console and the Safety Clip is securely attached to an article of your clothing.
  • Page 20 DISPLAY FUNCTIONS: (TIME): Displays your elapsed workout time in minutes and seconds. . (SPEED): Displays the current speed from the minimum 1.0 KPH to the maximum 12.0 KPH. You may increase or decrease the speed by pressing the (SPEED UP) or (SPEED DOWN) button on the computer console.

  • Page 21: Error Messages

    ERROR MESSAGES Error Messages Potential Cause Things to Check The computer console did Check whether the communication not receive any feedback wire is loose, fallen off or damaged. within 30 seconds from the Check the power control board. power control board. Overload of the input Please check the input power.

  • Page 22: Care, Maintenance & Troubleshooting Guide

    CARE, MAINTENANCE & TROUBLESHOOTING GUIDE WARNING: To prevent electrical shock, please turn off and unplug the treadmill before cleaning or performing routine maintenance. WARNING: Always check the wear and tear components like running belt to prevent injury. CLEANING After each exercise, ensure that the unit is wiped down and any sweat is removed from the unit.

  • Page 23: Belt Adjustment

    BELT ADJUSTMENT The running belt is pre-adjusted to the running deck at the factory, but after prolonged use it can stretch and require readjustment. To adjust the belt, turn on the main power switch of the treadmill and let the belt run at a speed of 8-10 KPH. Use the Allen Wrench with Phillips Screwdriver provided to turn the rear roller adjustment bolts in order to centre the belt.

  • Page 24: Lubrication

    LUBRICATION Lubricating under the running belt will ensure superior performance and extend its life expectancy. After the first 25 hours of use (or 2-3 months) apply some lubricant, and repeat for every following 50 hours of use (or 5-8 months). How to check running belt for proper lubrication Lift one side of the running belt and feel the top surface of the running deck.

  • Page 25: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 26 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
