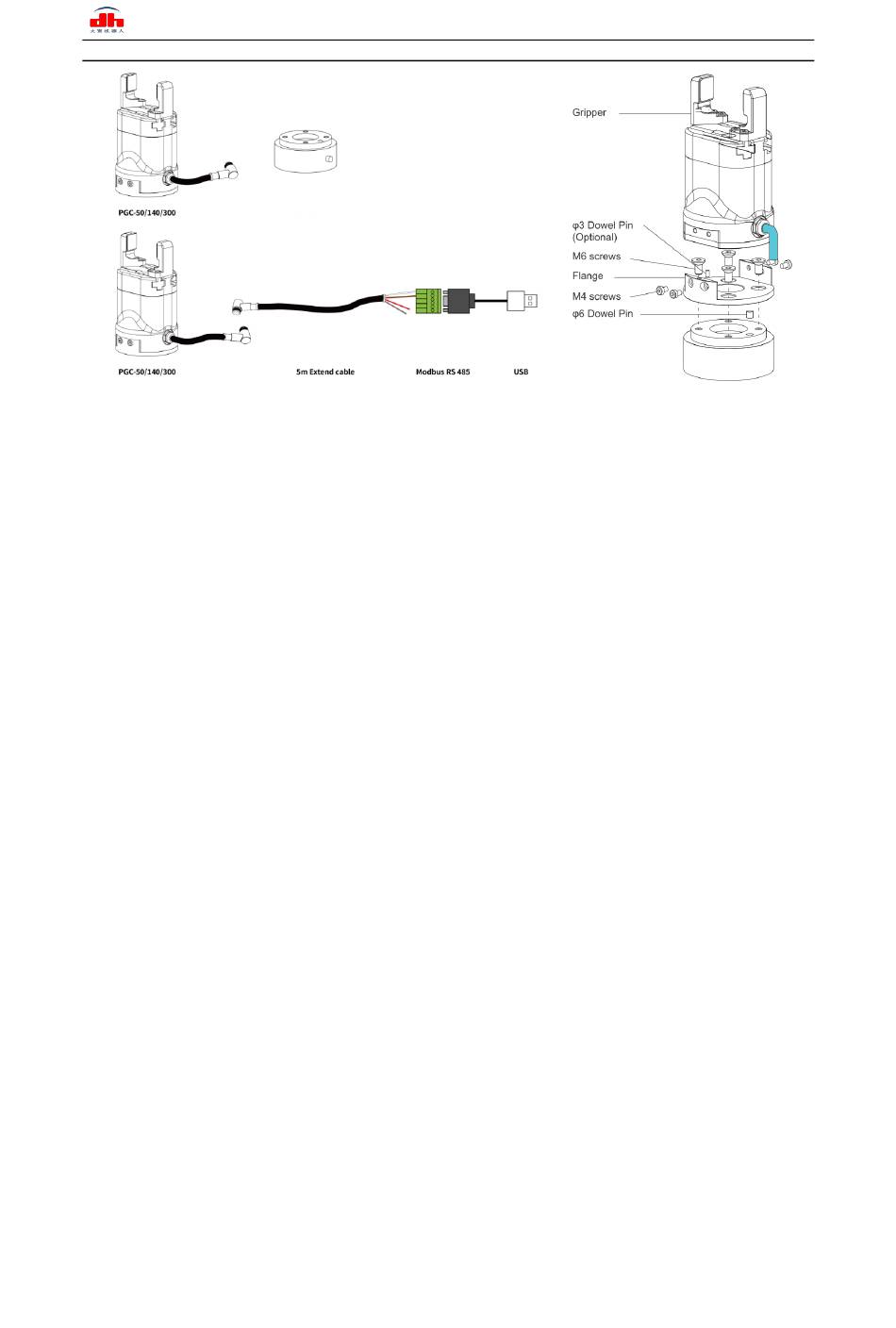

Figure 1.7 Connecting robot terminal with M8 aviation plug-in cable
When adopting this scheme, we need to confirm the pin definition with the robot
manufacturer, and confirm the claw outlet according to the pin definition. If the non-standard plug
and custom outlet mode are adopted, the extra cost needs to be discussed.
7
