DMM DYN3 Installation, Commissioning, And Testing Procedures

DYN3 Servo Drive Testing Procedures
Manual Code DYN3TR_A1_EN
Revision
Date
Valid Hardware Version
Step 1: Un-boxing and Parts Check
Carefully remove the contents of the servo system from its packaging. Check that all components of the servo system are included.
Minimum components needed for testing:
- DYN3 AC Servo Drive [ DYN3-H/T ]
- Encoder Feedback Cable
- RS232 Tuning Cable [CA-MRS232-6]
Step 2: Servo Motor Connection
Terminal Name Pin Number
A
T2
B
Motor Control Power
C
For the 880-DST-AS1 model 0.75kW capacity servo motor, the Motor Power Cable should be connected as:
Motor Phase
A
B
C
Protective Earth ( Motor Body )
Motor Power cable length <= 30m
Step 3: Encoder Feedback Connection
Connect the encoder feedback extension cable into the JP3 Terminal of the DYN3 servo drive.
Encoder Feedback cable length <= 30m
Step 4: Logic and Control Power Connection
Connect the AC input power to the DYN3 servo drive according to the diagram. DO NOT apply power to the input lines until Step 7.
Terminal Name Pin Number
L1
T4
Logic Control Power L2
R
S
T5
T
Main Control Power
R
T
A1.2
July 2013
DYN3-H/T
- DHT Series Servo Motor
- Motor Power Cable
- DMMDRV.exe program
Specification
0 - 400VAC @ 0 - 20A Peak
Wire Colour
Green
Red
Black
Yellow
Specification
Single Phase
110~230VAC +/-5%, 50/60Hz +/-5%
Three Phase 110~230Vac +/-5%, 50/60Hz +/-5%
Voltage between any two terminals ≤ 230VAC
Single Phase 110~230Vac +/-5%, 50/60Hz +/-
5%

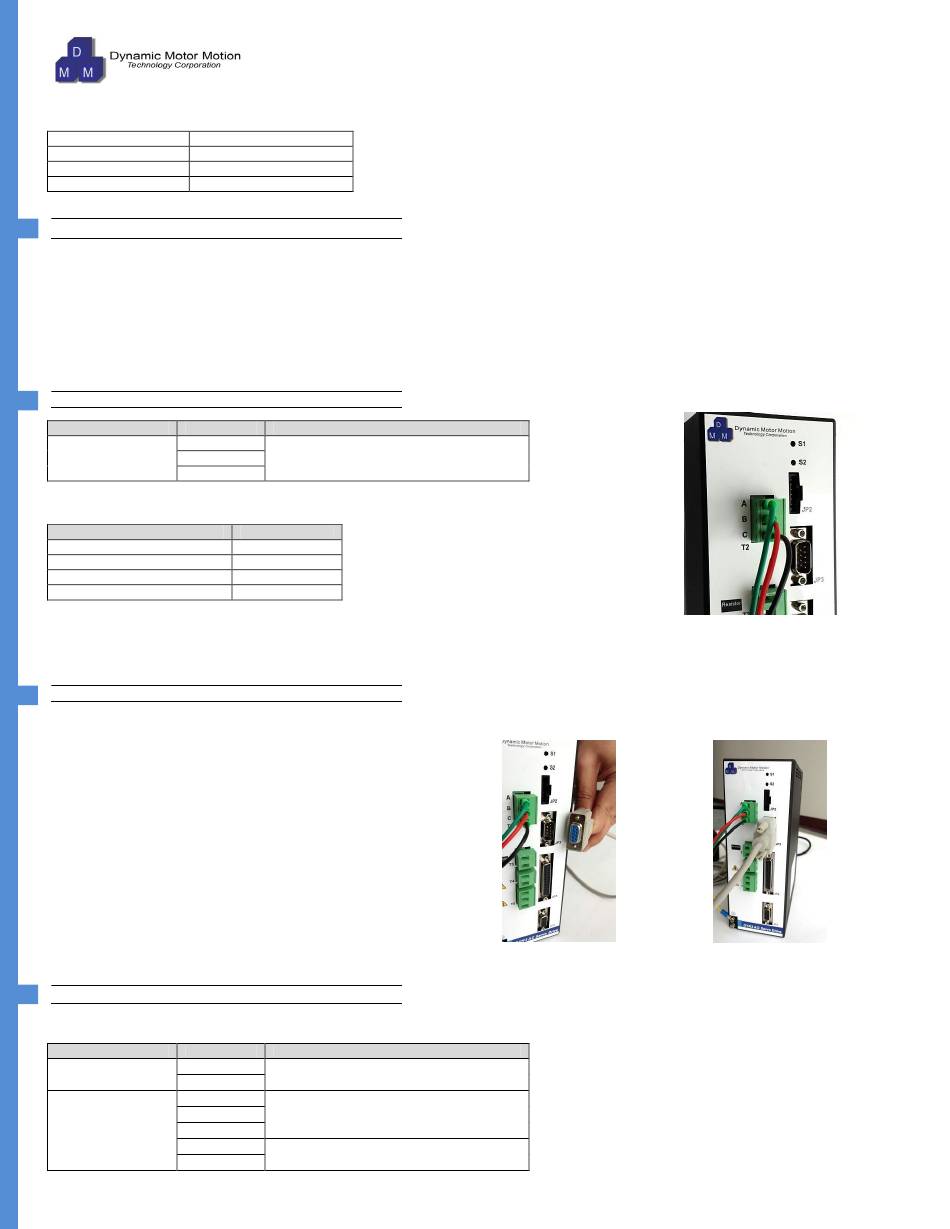

Figure 1. Servo Motor Power Connection
Figure 2. Encoder Feedback Figure 3. Complete Motor Connection
