Page 1

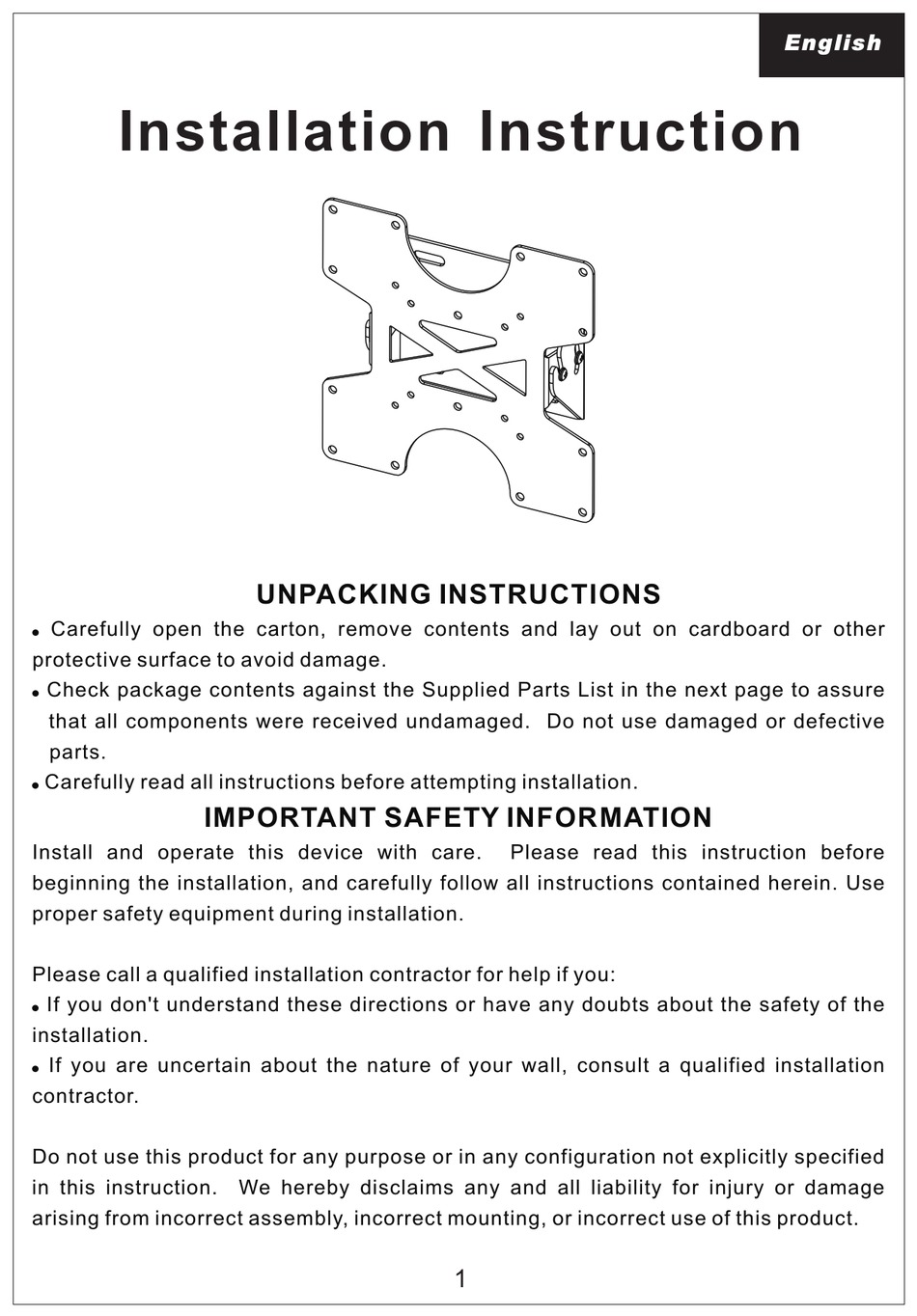

English Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
Page 2
Supplied Par ts List (2)M6x12 Bolt-c (2)M6 Allen Bolt-d (1)Monitor Bracket-a (1)Wall plate-b (4)M4x12 Bolt-e (4)M4x30 Bolt-f (4)M6x12 Bolt-g (4)M6x35 Bolt-h (8)M4 Washer-i (6)M6 Washer-j (4)M4/M6 Space-k (4)Lag Bolt Washer-l (4)Concrete Anchor-m (4)Lag Bolt-n (1)Allen Key-o (2)M6 Lock Washer-p CAUTION! This TV mount must be securely attached to the vertical wall.
Page 3
Mounting the Wall Plate to the Wall Step 1 Brick Mount 50mm 40mm Wood Mount 50mm 3.8mm...
Page 4
Mounting the Monitor Bracket to a TV Step 2 For Curved Back TV For Flat Back TV Attaching TV to Wall Plate Step 3 Thanks for choosing our products, enjoy the using.
