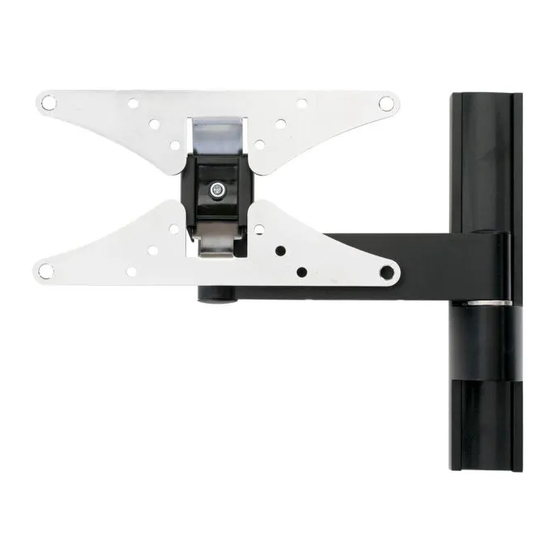

Selby LCD2401 Installation Instruction

Table of Contents

Download this manual

Installation Instruction

Carefully open the carton, remove contents and lay out on cardboard or other

protective surface to avoid damage.

Check package contents against the Supplied Parts List in the next page to assure

that all components were received undamaged. Do not use damaged or defective

parts.

Carefully read all instructions before attempting installation.

Install and operate this device with care.

beginning the installation, and carefully follow all instructions contained herein. Use

proper safety equipment during installation.

Please call a qualified installation contractor for help if you:

If you don't understand these directions or have any doubts about the safety of the

installation.

If you are uncertain about the nature of your wall, consult a qualified installation

contractor.

Do not use this product for any purpose or in any configuration not explicitly specified

in this instruction. We hereby disclaims any and all liability for injury or damage

arising from incorrect assembly, incorrect mounting, or incorrect use of this product.

UNPACKING INSTRUCTIONS

Please read this instruction before

English

Table of Contents

Do you have a question about the LCD2401 and is the answer not in the manual?

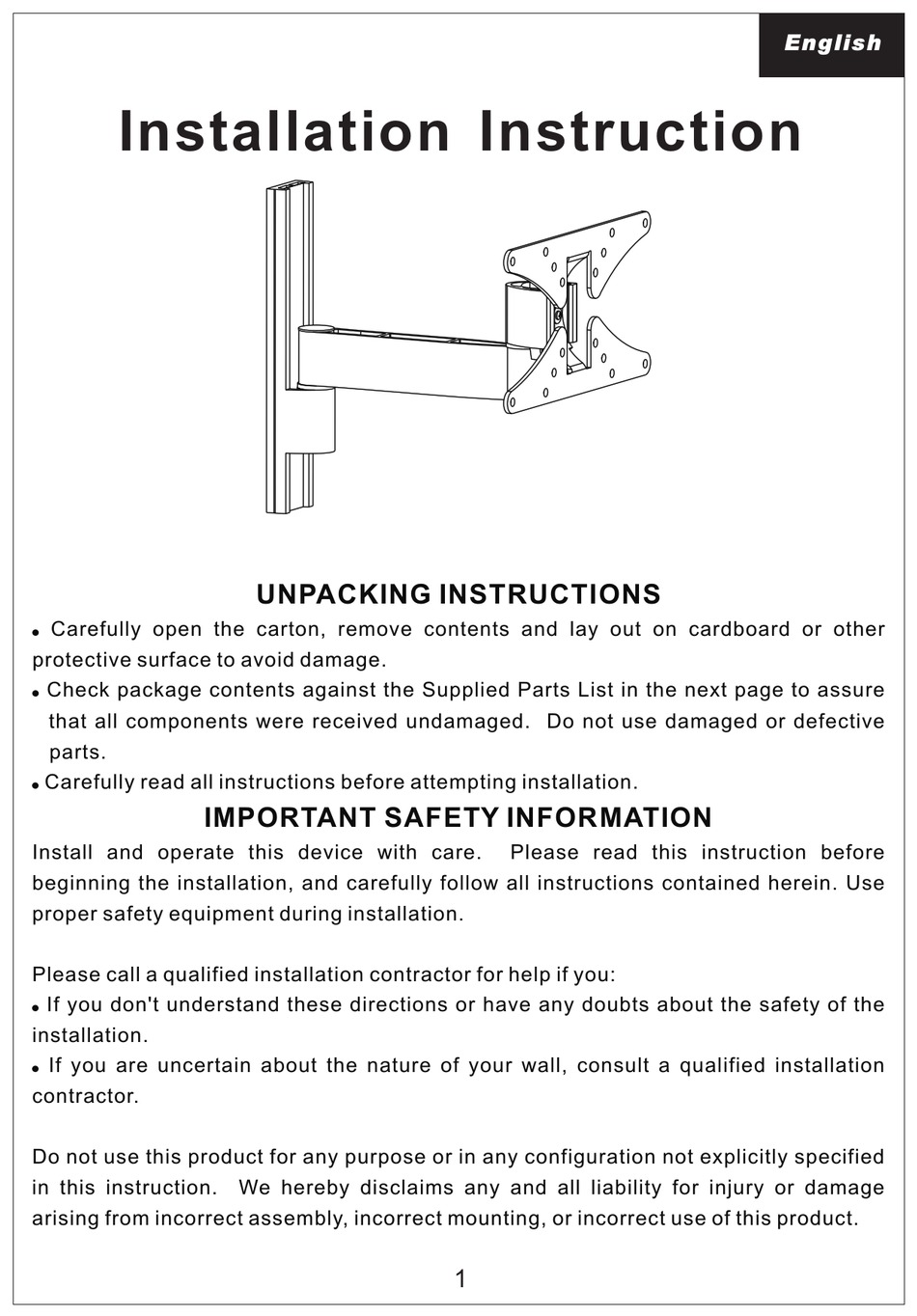

Page 1 English Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
Page 2 Supplied Par ts List (1)Wall Plate-a (1)Mornitor Bracket-b (1)Screw Cover-c (4)M4x12 Bolt-d (4)M4x30 Bolt-e (4)M6x12 Bolt-f (4)M6x35 Bolt-g (8)M4 Washer-h (4)M6 Washer-i (4)M4/M6 Space-j (3)Concrete Anchor-k (3)Lag Bolt-l (1)Cable Ring(m) CAUTION! This TV mount must be securely attached to the vertical wall.
Page 3 Mounting the Wall Plate to the Wall Step 1 Brick Mount 50mm 40mm Wood Mount 50mm 3.8mm Insert Screw cover(c) to Wall Plate Step 2 1. Before do this step, make sure the Wall Plate(a) had been fixed on the wall. 2.
Page 4 Mounting the Monitor Bracket to a TV Step 3 This way up! This way up! For Flat Back TV For Curved Back TV Attaching TV to Wall Plate Step 4 First, push the plastic tap down. Then, lock in tap(press to unlock) Install the Cable Management Ring on the Arm Step 5 Thanks for choosing our products, enjoy the using.
