Installation Instruction
Carefully open the carton, remove contents and lay out on cardboard or other
!
protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure
!
that all components were received undamaged. Do not use damaged or defective
parts.
Carefully read all instructions before attempting installation.
!
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction before
!
installation, and carefully follow all instructions contained herein. Use proper safety
equipment during installation.
Please call a qualified installation contractor for help if you don't understand these
!
directions or have any doubts about the safety of the installation.
Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaims any and all liability for injury or damage
arising from incorrect assembly, incorrect mounting, or incorrect use of this product.
UNPACKING INSTRUCTIONS
1
English
Advertisement
Table of Contents
Related Manuals for Selby LCD482-T
Summary of Contents for Selby LCD482-T

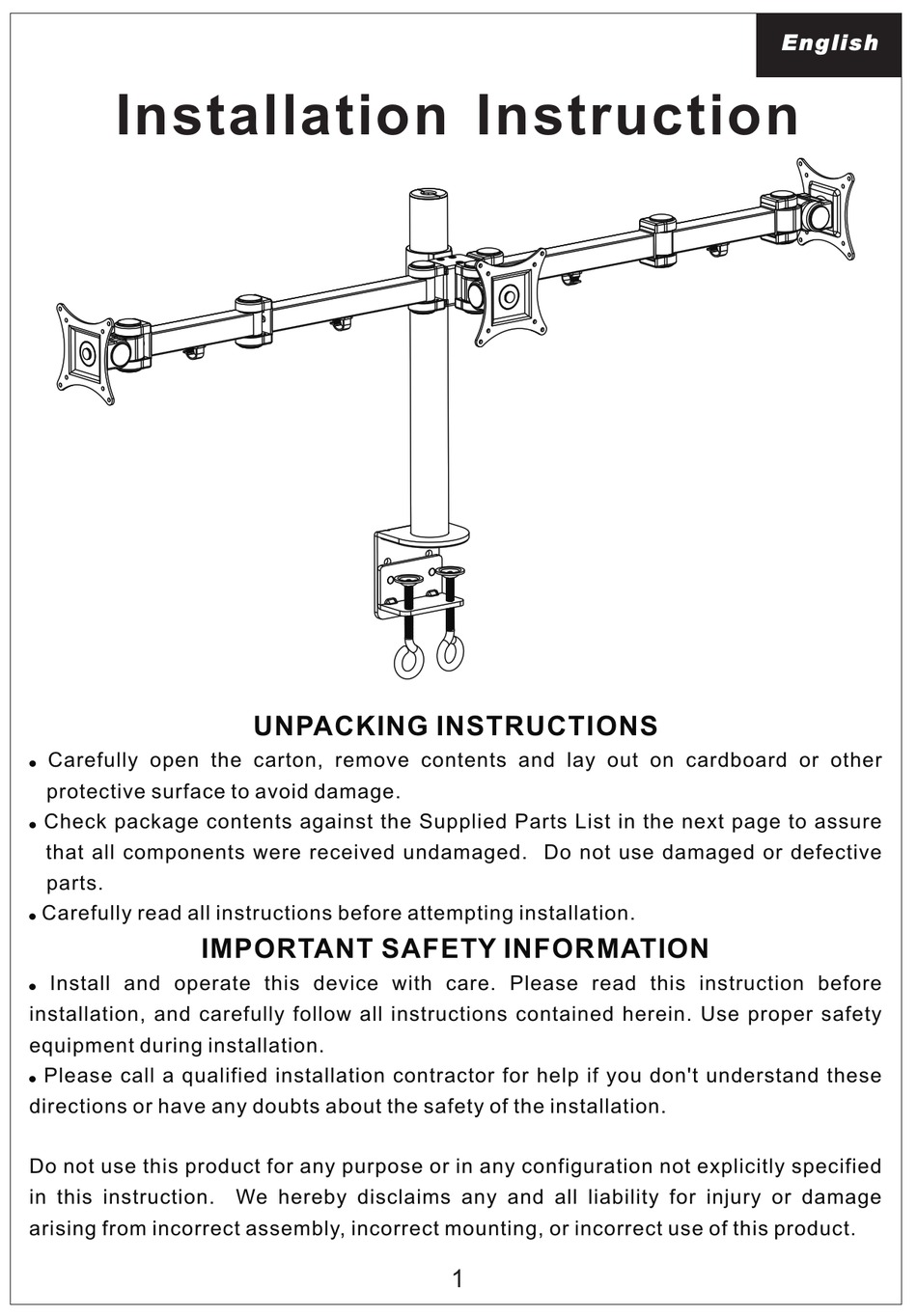

- Page 1 English Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
- Page 2 Supplied Par ts List (1) 48mm Tube (1) Disconnected (1) VESA Plate with (1)Wrench-l Support-a “C” Clamp-b Arm Assembled-c (12)M4x12 Bolt-d (12)M4x30 Bolt-e (24)M4 Washer-f (12)M4 Space-g (2)Spare Plastic (2)M8x10 Bolt-h (2)M10x15 Bolt-i (1)Allen Key-j Cover-k Tools Required Phillips Screwdriver CAUTION! This monitor desktop mount must be securely attached to the horizontal desk.
- Page 3 Install the “C” Clamp According to the Desktop Thickness Step 1 The depth of “C” clamp can be changed in three positions. Choose the proper depth a c c o r d i n g t o t h e t h i c k n e s s o f y o u r desktop.
- Page 4 Step 3 Mount the Monitor to VESA Plate For Flat Back Monitor For Curved Back Monitor Manager the Wires and Adjust the Turning Tension Step 4 Manager the wires by the wire Remove the plastic cover, use clips, some wires can be the Allen Key(j) to adjust the hidden inside the pipe.
