Selby PLB161 Installation Instruction

Installation Instruction

Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage.

Check package contents against the Supplied Parts List in the next page to assure that all components were received

undamaged. Do not use damaged or defective parts.

Carefully read all instructions before attempting installation.

Install and operate this device with care. Please read this instruction before beginning the installation, and carefully

follow all instructions contained herein. Use proper safety equipment during installation.

Please call a qualified installation contractor for help if you:

If you don't understand these directions or have any doubts about the safety of the installation.

If you are uncertain about the nature of your wall, consult a qualified installation contractor.

Do not use this product for any purpose or in any configuration not explicitly specified in this instruction. We hereby

disclaim any and all liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use of

this product.

This TV mount must be securely attached to the vertical wall. If the mount

is not properly installed it may fall, resulting in possible injury and/or

damage.

WARNING

Note:

The mounting components and hardware supplied in this package are not designed for installations to

walls with steel studs or to cinder block walls. If the hardware you need for your installation is not included,

please consult your local hardware store for proper mounting hardware for the application.

UNPACKING INSTRUCTIONS

5/32"(4mm) Drill Bit

Phillips Screwdriver

CAUTION!

3/8"(10mm) Masonry Bit

Stud Finder

English

Wrench or Socket Set

Carpenter's Level

Table of Contents

Do you have a question about the PLB161 and is the answer not in the manual?

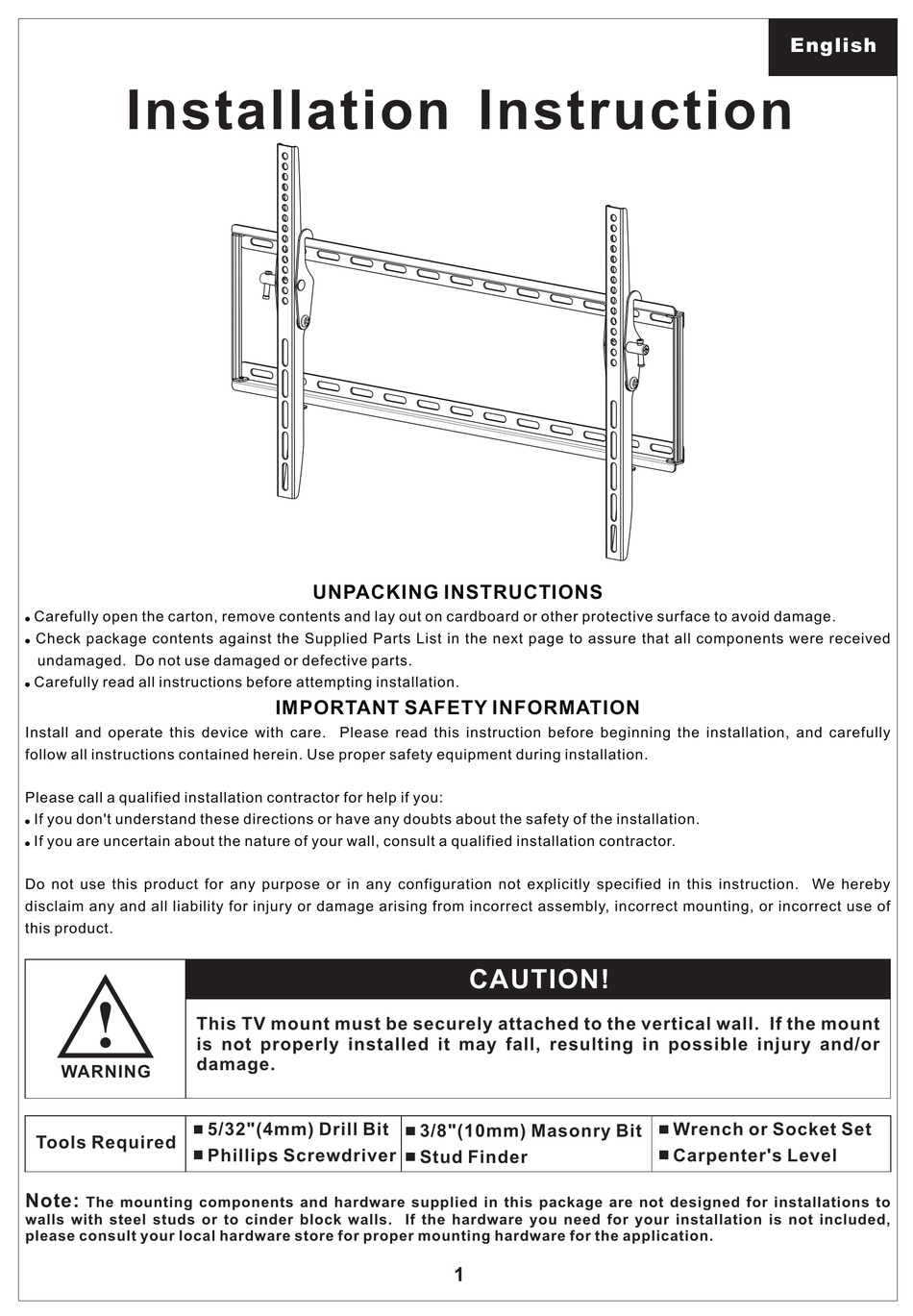

Page 1 English Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged.
Page 2 Supplied Par ts List (2)Wall Plate-a1 (2)Wall Plate-a2 (1)Left Monitor Bracket-b (1)Right Monitor Bracket-c (4)M4x20 Bolt-d (4)M5x20 Bolt-e (4)M6x20 Bolt-f (4)M8x20 Bolt-g (4)M4 Lock Washer-h (4)M5 Lock Washer-i (4)M6 Lock Washer-j (4)M8 Lock Washer-k (4)M4/M5 Washer-l (4)M6/M8 Washer-m (4)5mm Plastic Space-n (4)Lag Bolt-o (4)Lag Bolt Washer-p (4)Concrete Anchor-q...
Page 3 Assemble the Wall plate Step 1 Assemble the Wall Plate by 4pcs M5x6 bolt(r) as below diagram. Mounting the Monitor Brackets to the TV Step 2 First of all, make sure the diameter of the Bolt(d,e,f,g) your TV requires. Once you have determined the correct diameter, please see the relative diagram as below.
Page 4 Mounting the Wall Plate to the Wall Step 3 Brick, Solid Concrete and Concrete Block mounting: Use the Wall Plate(a) as a template to mark 4 hole locations on the wall. Two in the top row of slots and two more in the bottom row.
