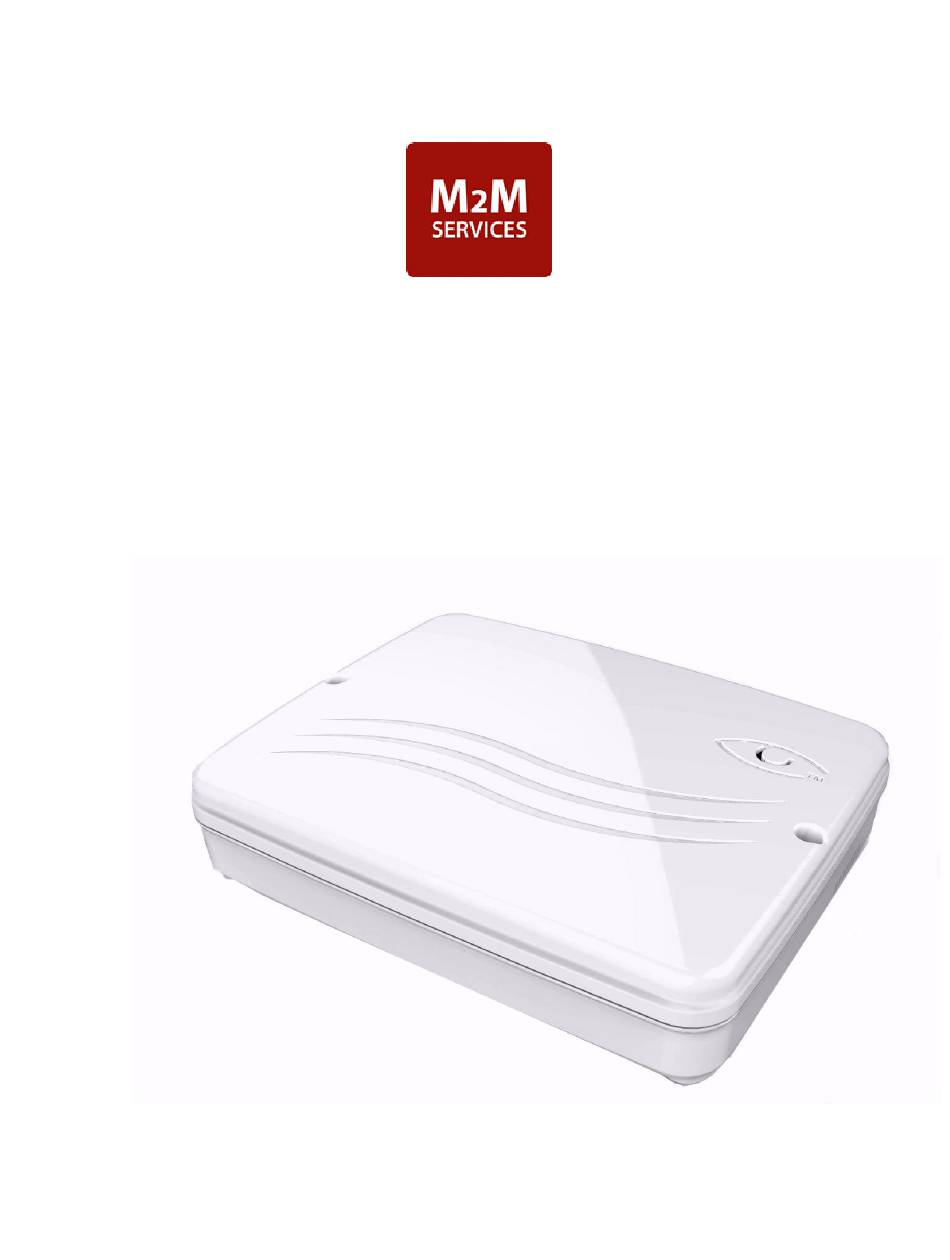

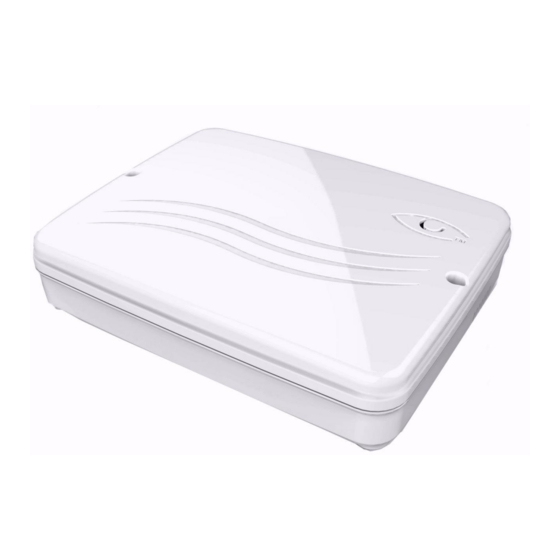

- Page 1 M2M Services Ltd, 1 Kukush Str, building M8, Sofia 1309, Bulgaria, Web Site: www.m2mservices.com M2M Services Ltd. RControl Alarm MQ03SD-RCALARM-RF Installer’s Manual V 1.6 M2M Services Ltd, 1 Kukush Str, building M8, Sofia 1309, Bulgaria, Web Site: www.m2mservices.com...
-
Page 2: Table Of Contents
Content Content ..............................2 General Specifications ..........................3 Wiring the RControl Alarm panel ......................3 Wiring the power supply module ....................... 3 Wiring a siren ............................3 SMARTEnroll – self-learning zones ......................3 Wireless keyfobs ............................4 Supported functions ..........................4 Pairing a wireless keyfob ........................ -
Page 3: General Specifications
General Specifications • Built-in GPRS communicator • Remote control via Smartphone • 2 Partitions • 8 Wired zones • 32 Wireless zones • Supports up to 16 keyfobs with rolling code • 1 bell output and 1 programmable output (open collector 500mA) •... -
Page 4: Wireless Keyfobs
Wireless keyfobs Supported functions The wireless keyfobs have 4 buttons - Full Arm, Home Arm, Disarm and Panic. By default, only the Full Arm and Disarm buttons are active. To enable the Home Arm button, you need to have at least one STAY zone. Please refer to the “Configuring the zones”... -
Page 5: Disabling A Wireless Keyfob
Disabling a wireless keyfob If a paired keyfob is lost, you can disable it from the RControl Admin Portal. To do that you have to navigate to RControl Alarm menu, section Keyfobs and set “Enable” property to NO for the keyfob that you want to disable. -
Page 6: Pairing Wireless Panic Button
Do not use the tamper button of the magnetic detector to pair it. 2. Pairing an M2M wireless PIR detector To pair the M2M wireless PIR detector, you have to activate it twice. Note that the PIR detector should be in TEST mode. -
Page 7: Disabling A Wireless Sensor
Disabling a wireless sensor You can disable single wireless sensor from the RControl Admin portal. Go to the RControl Alarm menu, RF Zones tab, and choose Enabled=No for that particular sensor. Deleting all keyfobs and wireless detectors Press and hold the white button of the RF receiver 3 times for around 10 seconds, until the LED indicator goes OFF each time. -
Page 8: Remote Arming/Disarming Via The Rcontrol Application
Remote Arming/Disarming via the RControl Application To enable the remote control via the mobile application, go to Menu > Settings > Remote Arming/Disarming and enable the Arming/Disarming feature. Ask the end user to enter a Remote PIN code of their choice and Disarm (or Arm) from a keyfob or the keypad within 2 minutes to complete the initial pairing procedure. -
Page 9: Configuring The Zones
• Exit time (in seconds) – the time interval from the physical arming from a user and the arming of the alarm panel. You can choose when the Exit time will be applied – when arming from a wireless keyfob, in case of remote arming from the mobile application or both. •... -
Page 10: Configuring The Panic Button Of The Keyfob
If the Follow zone was violated before any Entry/Exit zone was violated, then an alarm event will be generated immediately. NOTE! If the entry/exit time is 0sec, the Follow zone will work as an Instant zone. • Instant zone - If this type of zone has been violated when the panel is armed, the panel will immediately generate an alarm event.
