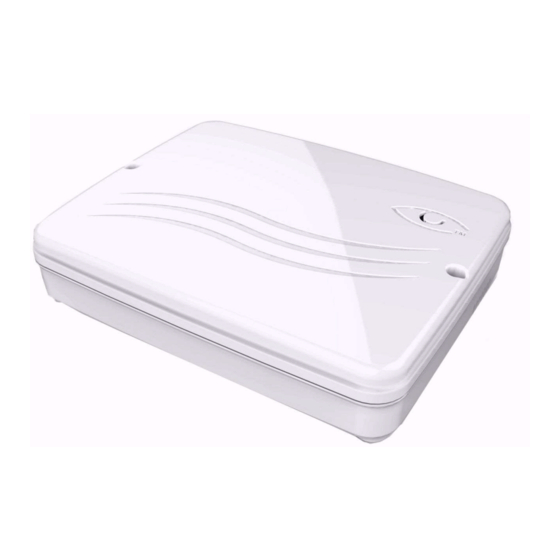

- Page 1 RControl-LA Smart Hybrid Alarm System Installation and Programming Guide Doc. No. 04003 V1.0 10/2018 M2M Services Ltd, 1 Kukush Str, building M8, Sofia 1309, Bulgaria, www.m2mservices.com...
-
Page 2: Table Of Contents
Table of Contents About this document ............................. 3 Safety Instructions for Service Personal ....................... 4 Product Description ............................5 Features ..............................5 Speci cations ............................6 Installation ..............................7 Mounting Instructions ..........................7 Wiring Instructions ............................. 9 Wireless keyfobs ............................. 10 Supported functions .......................... -
Page 3: About This Document
Device. M2M Services LTD responsibility according to local laws does not exceed the value of the purchased system. M2M Services LTD is not a liated with GSM operators providing cellular services, therefore is not responsible for network services, coverage or its operation. -
Page 4: Safety Instructions For Service Personal
Safety Instructions for Service Personal • This unit must be checked by a quali ed technician once a year. • Do not use the Device with medical devices, or where it can interfere with other devices and cause any potential danger. •... -
Page 5: Product Description
Product Description Features The RControl-LA Alarm system is a 2-partition, control panel with the following features: • Built-in GPRS communicator • Remote control via Smartphone • 2 Partitions • 8 Wired zones (16 with zone doubling) • 32 Wireless zones •... -
Page 6: Speci Cations
Speci cations Flexible Zone Con guration • 8 hardwired zones (up to 16 if zone doubling is used) • Up to 32 wireless zones • One master code: 0000 • 19 zone types • Normally Closed, single EOL, double EOL zone wiring •... -
Page 7: Installation
Installation • It is advised that an experience alarm installer install and program the panel. It is required to ensure proper performance and use of the full functionality. • The wiring should be done only when the panel is power down. •... - Page 8 In the event of an AC power loss, the system is supplied with backup battery that is supervised for connection and low voltage conditions. This information is available to the monitoring station and the M2M platform. NOTE: On a typical installation the battery will last for at least 24 hours.
-
Page 9: Wiring Instructions
Wiring Instructions Power Supply Module • The L and N terminals should be connected to the powerline (220V) • The -V output should be connected to the (-) of the alarm panel • The +V output should be connected to the (+) of the alarm panel Battery Plug the battery connector into the connector on the control panel’s circuit board. -
Page 10: Wireless Keyfobs
Wireless keyfobs Supported functions The wireless keyfob has 4 buttons - Full Arm, Home Arm, Disarm and Panic. By default, only the Full Arm and Disarm buttons are active. To enable the STAY Arm button, you need to have at least one STAY zone. Please refer to the “Con guring the zones”... -
Page 11: Disabling A Wireless Keyfob
Disabling a wireless keyfob If a paired keyfob is lost, you can disable it from the RControl Admin Portal. To do that you have to navigate to RControl Alarm menu, section Keyfobs and set “Enable” property to NO for the keyfob that you want to disable. -
Page 12: Wireless Detectors
Retransmission devices (repeaters and/or transceivers) are not allowed to be used. Pairing a wireless detector The RControl-LA Alarm panel supports up to 32 wireless detectors. You need to perform the pairing procedure for each wireless detector. NOTE: You cannot pair detectors while the system is armed. Before entering learning mode rst make sure that the panel is DISARMED! •... -
Page 13: Disabling A Wireless Detector
Disabling a wireless detector You can disable single wireless sensor from the RControl Admin portal. Go to the RControl Alarm menu, Zones tab, and choose Zone type = Disable for that sensor. Deleting a wireless detector You can permanently delete single wireless sensor from the RControl Admin portal. Go to the RControl Alarm menu, RF Zones, and select the zone for that sensor and press Delete (bottom left corner of the window). -
Page 14: Wired Detectors
Wired detectors SMARTEnroll wired detector The RControl-LA Alarm panel supports up to 16 wired detectors. You need to perform the pairing procedure for each wired detector. You can con gure each zone manually as describe in section “Con guring Zones”. However, you can also automatically enroll wired sensors as instant zones using the SMARTEnroll feature. -
Page 15: Programming
Programming In general, the alarm panels are precon gured with a template according to the needs of each customer. If any changes to the basic con gurations are needed you can apply them from the RControl Admin Portal https://www.m2mservices.com/admin by logging with your administrative credentials. You can nd the alarm panel by its serial number or by account number, IMEI, etc. -
Page 16: Con Guring The Zones
Con guring the zones If you need to change the default self-learning behavior, you can con gure the zones from the “RControl Alarm” menu, section “Zones” for the wired zones or “RF Zones” for the wireless zones. With a double click on the selected zone you can: •... - Page 17 • Entry/Exit zone – The Entry/Exit zones can be violated during the entry/exit time delay without causing an alarm event. If an Entry/Exit zone is violated while the system is armed, the alarm panel will start counting the entry time. If the system is not disarmed during the entry time, an alarm event is generated. NOTE: If the entry/exit time is 0 sec, the Entry/Exit zone works as an Instant zone.
- Page 18 • 24 Hours Gas – When this zone is violated, the panel will immediately latch the alarm output and communicate to the central station. The siren will follow the Gas alarm pattern and zone number will be lit. • 24 Hours Freeze - When this zone is violated, the panel will immediately latch the alarm output and communicate to the central station.
-
Page 19: Rcontrol Mobile Application
RControl Mobile Application The RControl mobile application is available for Android, iOS and Windows Phones. With the RControl mobile application the end user can: • Monitor the status of the alarm panel • View events log up to one year back in time •... -
Page 20: Troubleshooting
Troubleshooting System Test Once the wiring is done you can initiate a system test. NOTE: Make sure the panel is disarmed and indicating a ready status. To initiate a system test, hold the “0” button of the keypad. A sound indication from the system will appear, indicating that you must enter a valid code in the next 20 seconds. - Page 21 Zone problems • Wiring • Con guration • Faulty detectors Siren not working • Check wiring • Programming • AUX overcurrent ©...
