SP-SW5200-VUHBT (SW-5200)
SP-SW5200-VUHBT (SW-5200)

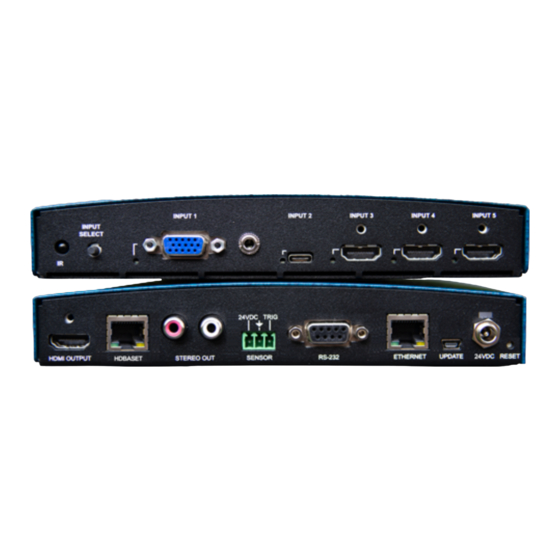

The graphic below points out key attributes of the SW-5200.
Connect Sources Devices Here
IR (Infra-Red) Sensor
Source Selector
Front View
Front View
Active Source Indicators
Power & Indicator
Stereo Audio Output
RS-232 Port
24VDC / 1.5A
Back View
Back View
Proximity Sensor Port
Ethernet Port
USB Firmware Update
Display Outputs
Connections
Connections
Inputs and Outputs. Using the graphic above, connect the source devices to the ports labeled
above as, "Connect Source Devices Here", and the displays at location, "Display Outputs", port.
Connect audio, if applicable.
Power. Connect the DC power supply to the location, "24VDC", and the other end to your
110V/VAC power socket. The system LED will illuminate above "24VDC" location.
SP-SW5200-VUHBT Quick Start Guide
Page 1
Advertisement
Table of Contents
Related Manuals for SP Controls SP-SW5200-VUHBT
Summary of Contents for SP Controls SP-SW5200-VUHBT
- Page 1 “Connect Source Devices Here”, and the displays at location, “Display Outputs”, port. Connect audio, if applicable. Power. Connect the DC power supply to the location, “24VDC”, and the other end to your 110V/VAC power socket. The system LED will illuminate above “24VDC” location. SP-SW5200-VUHBT Quick Start Guide Page 1...
- Page 2 From the IR Remote controller, shown below, select the Right or Left buttons until the desired Source is selected. If the front panel is viewable, you will see the Active Source Indicator change when each button is pressed. Page 2 SP Controls, Inc.
