Quick Start
Getting to Know the SP-SW5100-VUHD
Getting to Know the SP-SW5100-VUHD

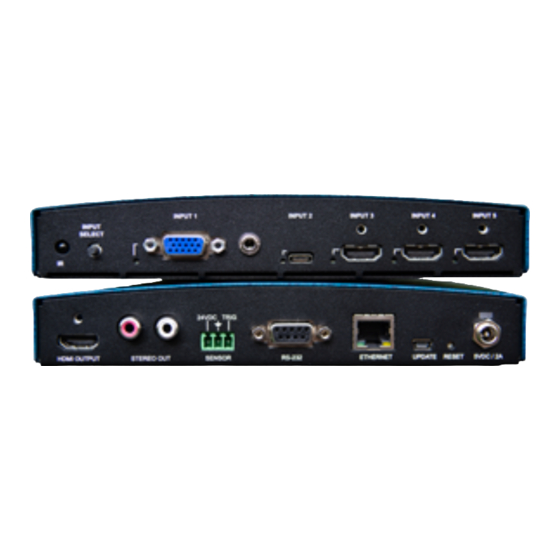

The graphic below points out key attributes of the SP-SW5100-VUHD.
Connect Sources Devices Here
IR (Infra-Red) Sensor
Source Selector
Front View
Front View
Active Source Indicators
Power & Indicator
Stereo Audio Output
RS-232 Port
24VDC / 1.5A
Back View
Back View
Proximity Sensor Port
Ethernet Port
USB Firmware Update
Display Output
Connections
Connections
Inputs and Outputs. Using the graphic above, connect the source devices to the ports labeled
above as, "Connect Source Devices Here", and the display at location, "Display Output", port.
Connect audio, if applicable.
Power. Connect the DC power supply to the location, "24VDC", and the other end to your
110V/VAC power socket. The system LED will illuminate above "24VDC" location.
SP-SW5100-VUHD Quick Start Guide
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SP Controls SP-SW5100-VUHD
Summary of Contents for SP Controls SP-SW5100-VUHD
- Page 1 Quick Start Getting to Know the SP-SW5100-VUHD Getting to Know the SP-SW5100-VUHD The graphic below points out key attributes of the SP-SW5100-VUHD. Connect Sources Devices Here IR (Infra-Red) Sensor Source Selector Front View Front View Active Source Indicators Power & Indicator...
- Page 2 Selecting a New Source Device to Display Selecting a New Source Device to Display To display a new source, press the Source Selector button on the Front of the SP-SW5100-VUHD repeatedly until the LED on the Active Source Indicator corresponds to the desired Source Port Selection.
