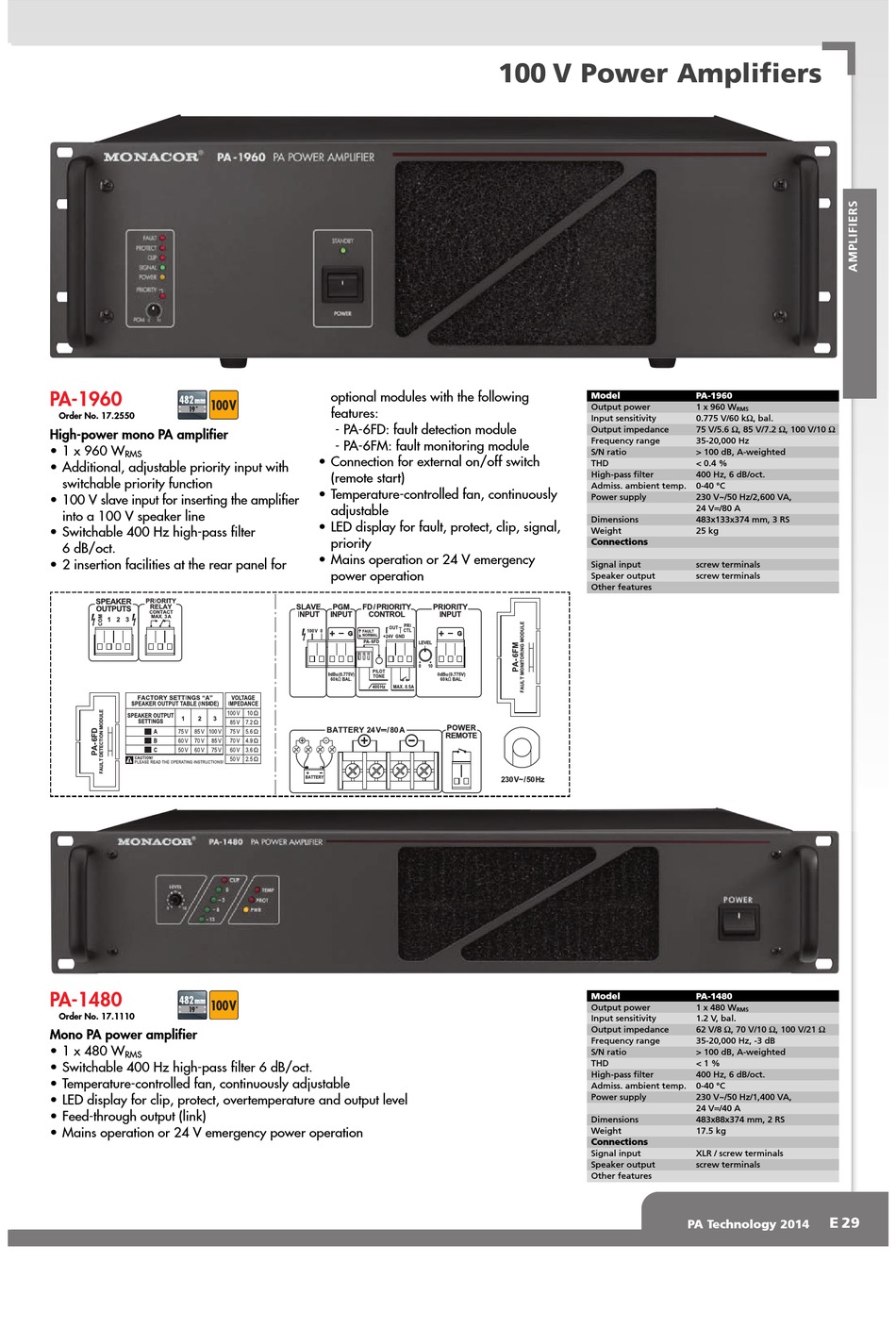

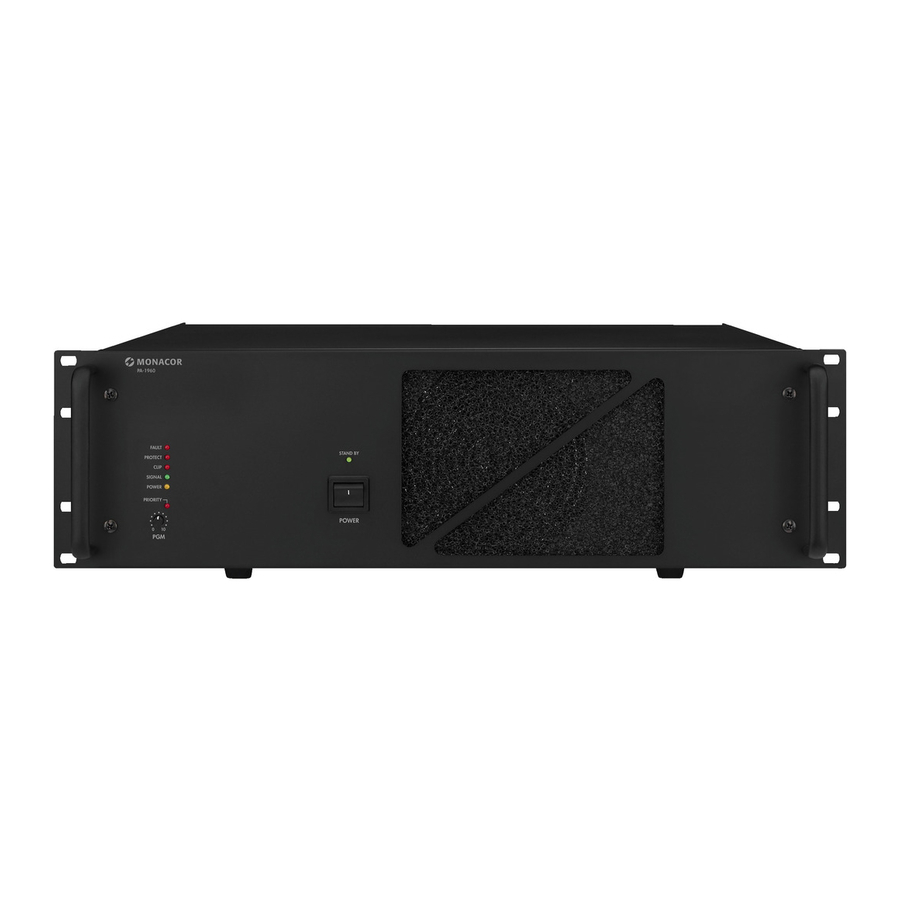

High-power mono PA amplifier
• 1 x 960 W
RMS
• Additional, adjustable priority input with
switchable priority function
• 100 V slave input for inserting the amplifier
into a 100 V speaker line
• Switchable 400 Hz high-pass filter
6 dB/oct.
• 2 insertion facilities at the rear panel for
PA-1480
Order No. 17.1110
Mono PA power amplifier
• 1 x 480 W
RMS
• Switchable 400 Hz high-pass filter 6 dB/oct.
• Temperature-controlled fan, continuously adjustable
• LED display for clip, protect, overtemperature and output level
• Feed-through output (link)
• Mains operation or 24 V emergency power operation
12:56 Uhr 14:42 Uhr Seite 29 Seite 29
optional modules with the following
features:
- PA-6FD: fault detection module
- PA-6FM: fault monitoring module
• Connection for external on/off switch
(remote start)
• Temperature-controlled fan, continuously
adjustable
• LED display for fault, protect, clip, signal,
priority
• Mains operation or 24 V emergency
power operation
100 V Power Amplifiers
Model
Output power
Input sensitivity
Output impedance
Frequency range
S/N ratio
THD
High-pass filter
Admiss. ambient temp.
Power supply
Dimensions
Weight
Connections
Signal input
Speaker output
Other features
Model
Output power
Input sensitivity
Output impedance
Frequency range
S/N ratio
THD
High-pass filter
Admiss. ambient temp.
Power supply
Dimensions
Weight
Connections
Signal input
Speaker output
Other features
PA-1960
1 x 960 W
RMS
0.775 V/60 kΩ, bal.
75 V/5.6 Ω, 85 V/7.2 Ω, 100 V/10 Ω
35-20,000 Hz
> 100 dB, A-weighted
< 0.4 %
400 Hz, 6 dB/oct.
0-40 °C
230 V~/50 Hz/2,600 VA,
24 V‡/80 A
483x133x374 mm, 3 RS
25 kg
screw terminals
screw terminals
PA-1480
1 x 480 W
RMS
1.2 V, bal.
62 V/8 Ω, 70 V/10 Ω, 100 V/21 Ω
35-20,000 Hz, -3 dB
> 100 dB, A-weighted
< 1 %
400 Hz, 6 dB/oct.
0-40 °C
230 V~/50 Hz/1,400 VA,
24 V‡/40 A
483x88x374 mm, 2 RS
17.5 kg
XLR / screw terminals
screw terminals
