U-Line H-8127 Manual

WHITE WIRE

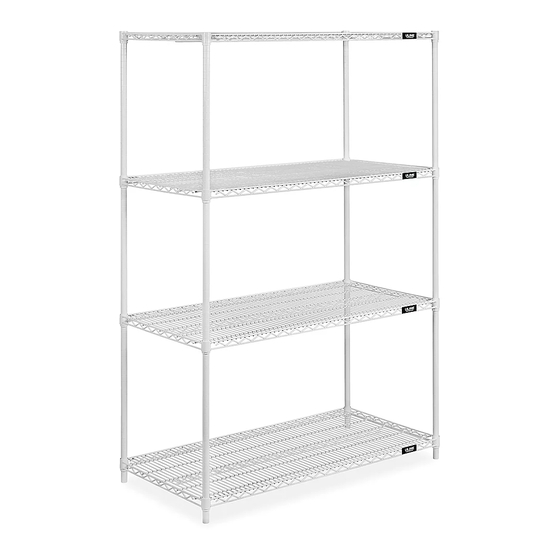

SHELVING
Post x 4
INSTALLATION OF SELF-LEVELERS AND OPTIONAL CASTERS
Figure 1
Figure 2
Figure 3
PAGE 1 OF 6
1-800-295-5510
uline.com
Shelf x 4
TO INSTALL SELF-LEVELERS
NOTE: If installing casters, do not install self-levelers.
1. Make sure post is positioned as shown. (See Figure 1)
2. Insert self-leveler into open end of post.
3. Tap on ground until self-leveler slides into post.
4. Repeat steps 2 and 3 for other posts.
TO INSTALL OPTIONAL CASTERS
1. Make sure post is positioned as shown. (See Figure 2)
2. Engage the wheel brakes to keep casters from rolling during
assembly. Use a rubber mallet to tap caster stems into posts.
(See Figure 2)
INSTRUCTIONS FOR UNIT ASSEMBLY
1. Start with the lowest shelf. Snap the interlocking pieces of a
Shelf
shelf support (wide end down) around the post at the lowest
Support
groove where shelf is to be located. Slide the support up or
down until it snaps onto the groove. Add a shelf support to
the same place on the remaining posts. (See Figure 3)
PARTS
Shelf Support x 16 Sets
Para en Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Self-Leveler x 4
0421 IH-8126
