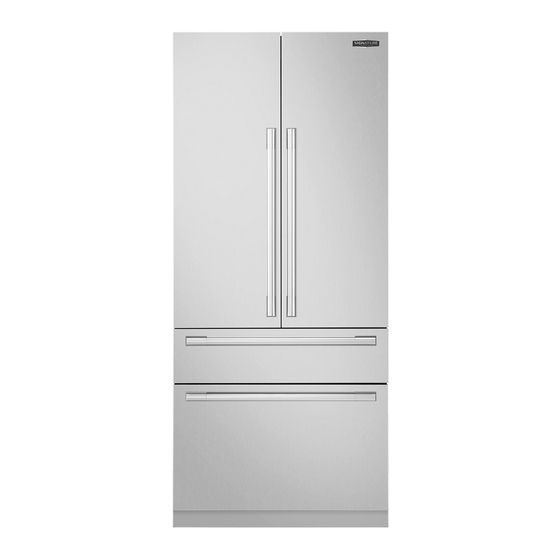

Signature SKSFD3604P Owner's Manual
  1. Manuals
  2. Brands
  3. Signature Manuals
  4. Refrigerator
  5. SKSFD3604P
  6. Owner's manual

Signature SKSFD3604P Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

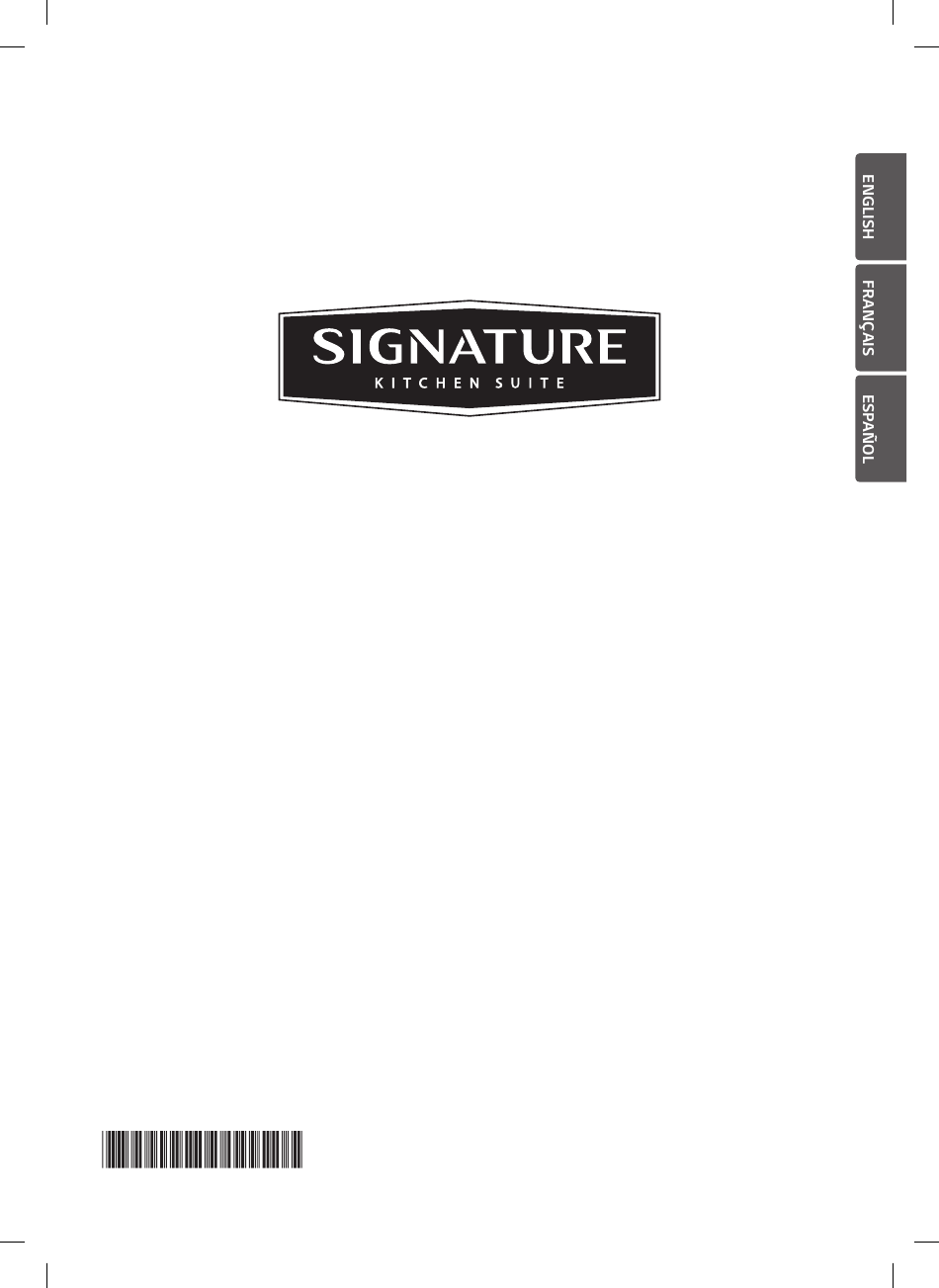

OWNER'S MANUAL
BUILT-IN REFRIGERATOR
Read this owner's manual thoroughly before operating the appliance
and keep it handy for reference at all times.
SKSFD3604P
MFL70339803_Rev.00
www.signaturekitchensuite.com
Copyright © 2018 Signature Kitchen Suite. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKSFD3604P and is the answer not in the manual?

Questions and answers

Related Manuals for Signature SKSFD3604P

Summary of Contents for Signature SKSFD3604P

  • Page 1 OWNER’S MANUAL BUILT-IN REFRIGERATOR Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. SKSFD3604P www.signaturekitchensuite.com Copyright © 2018 Signature Kitchen Suite. All Rights Reserved. MFL70339803_Rev.00...

  • Page 2: Table Of Contents

    Ice Compartment Storing Food Convertible Drawer Freezer Drawer Door Bins Adjusting the Shelves Crisper 22 SMART FUNCTIONS SIGNATURE KITCHEN SUITE Application Smart Grid Function Smart Diagnosis™ Function 28 MAINTENANCE Cleaning Replacing the Water Filter 34 TROUBLESHOOTING FAQs: Frequently Asked Questions...

  • Page 3: Product Features

    PRODUCT FEATURES PRODUCT FEATURES Depending on the model, some of the following functions may not be available. FILTERED WATER The water dispenser dispenses fresh, chilled water. DOOR ALARM The Door Alarm function is designed to prevent refrigerator malfunctioning that could occur if a door remains open.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages. This is the safety alert symbol.
  • Page 5 SAFETY INSTRUCTIONS OPERATION • This product is not to be used for special purposes such as the storage of medicine or test materials or for use on ships, etc. • DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the refrigerator.
  • Page 6 SAFETY INSTRUCTIONS MAINTENANCE • Do not use a hair dryer to dry the inside of the refrigerator. • Do not light a candle to remove odors in the refrigerator. • In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure the area is adequately ventilated and contact an authorized service center.
  • Page 7 SAFETY INSTRUCTIONS CAUTION To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: INSTALLATION • Do not install the refrigerator where there may be a danger of the unit falling. •...

  • Page 8: Product Specifications

    The appearance and specifications listed in this manual may vary due to constant product improvements. Electrical requirements: 115 V, 60 Hz Min. / Max. water pressure: 20 - 120 psi (138 - 827 kPa) Model SKSFD3604P Description Built-in, Refrigerator Net weight...

  • Page 9: Product Overview

    PRODUCT OVERVIEW PRODUCT OVERVIEW The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes. Interior Water filter Adjustable Refrigerator Shelf Purifies water. The refrigerator shelves are adjustable to meet individual storage needs.

  • Page 10: Operation

    10 OPERATION OPERATION Before Use Clean the refrigerator. Clean the refrigerator thoroughly and wipe off all dust that accumulated during shipping. CAUTION • Do not scratch the refrigerator with a sharp object or use a detergent that contains alcohol, a flammable liquid or an abrasive when removing any tape or adhesive from the refrigerator.

  • Page 11: Control Panel

    OPERATION Control Panel Depending on the model, some of the following functions may not be available. Control Panel Features NOTE • When the refrigerator is in the Power Saving Mode, the display remains off until a door is opened or a button is pressed.
  • Page 12 Freezer and Power buttons for 3 The Wi-Fi button, when used with the seconds. SIGNATURE KITCHEN SUITE smart phone • Once turned on, Sabbath mode is maintained app, allows the refrigerator to connect to a home even after a power outage.

  • Page 13: Internal Water Dispenser

    • If water is dispensed unexpectedly, turn off the • Icemaking stops when the ice bin is full. water supply and contact a SIGNATURE KITCHEN SUITE Customer Information Center. • Occasionally shake the ice bin to level the ice. If the ice cubes pile up on the side nearest the shutoff •...

  • Page 14: Storing Food

    14 OPERATION Storing Food Food Storage Tips Wrap or store food in the refrigerator in airtight and moisture-proof material unless otherwise noted. This CAUTION prevents food odor and taste transfer throughout the refrigerator. For dated products, check date code to •...
  • Page 15 OPERATION Storing Frozen Food Storing Food in the Convertible Drawer Check a freezer guide or a reliable cookbook for further information about preparing food for freezing Press the Convertible button repeatedly to cycle or food storage times. through the available temperature settings. For best results, see the table below.

  • Page 16: Convertible Drawer

    16 OPERATION Convertible Drawer Remove the screws from the rails at both sides. Removing the Convertible Drawer Pull the drawer out until it stops. Empty all contents out of the drawer before removing it. Hold both sides of the door and lift it to remove it from the rail system.
  • Page 17 OPERATION Assembling the Convertible Drawer Push the button and engage the stopper on either side. Grasp the door on each side and lower it into place on the rail system. Insert screws at the end of both rails. Pull the drawer open to full extension. Lower the basket onto the rail system.

  • Page 18: Freezer Drawer

    18 OPERATION Freezer Drawer Remove the screws from the rails at both sides. Removing the Freezer Drawer NOTE • The convertible drawer must be removed before the freezer drawer can be removed. Pull the drawer out until it stops. Empty all contents out of the drawer before removing it.
  • Page 19 OPERATION Assembling the Freezer Drawer Push the button and engage the stopper on either side. NOTE • The convertible drawer must be removed in order to assemble the freezer drawer. Grasp the door on each side and lower it into place on the rail system.

  • Page 20: Door Bins

    20 OPERATION Door Bins Adjusting the Shelves To remove the door bins, hold the bin with both hands The shelves in the refrigerator are adjustable to meet and tilt the back edge up. individual storage needs. Adjusting the shelves to fit items of different heights will make finding the exact item you want easier.

  • Page 21: Crisper

    OPERATION Crisper Removing the Crisper Drawer Frames Remove the crisper drawer. Removing the Crisper Cover • Lift up the glass at the front and pull the cover out. Pull the drawer frame out until it stops. Press the release levers on either side of the Lift drawer frame and lift the drawer frame.

  • Page 22: Smart Functions

    Internet service provider or refer to your wireless The SIGNATURE KITCHEN SUITE application allows router manual. you to communicate with the appliance using a • The SIGNATURE KITCHEN SUITE application is smartphone. not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.

  • Page 23: Signature Kitchen Suite Application

    SUITE Application • If you change your wireless router, your Internet service provider or your password after registering Search for the SIGNATURE KITCHEN SUITE the appliance, delete the product from the application from the Google Play Store or Apple App SIGNATURE KITCHEN SUITE application under Store on a smart phone.

  • Page 24: Smart Grid Function

    These notification events are known as Demand Response SIGNATURE KITCHEN SUITE Open API signals. If the refrigerator receives a Demand Response You can manage Smart Grid features for the signal from the utility company, the refrigerator will SIGNATURE KITCHEN SUITE refrigerator.

  • Page 25: Smart Diagnosis™ Function

    Smart Diagnosis™ center. Use the Smart Diagnosis feature in the SIGNATURE KITCHEN SUITE application for help diagnosing issues with the appliance without the assistance of the SIGNATURE KITCHEN SUITE Customer Information Center.
  • Page 26 This equipment should be installed and operated with SIGNATURE KITCHEN SUITE will also provide open a minimum distance of 20 cm (7.8 inches) between source code to you on CD-ROM for a charge covering the antenna and your body.
  • Page 27 SMART FUNCTIONS Wireless Power Transfer Specifications Frequency 330 kHz ~ 370 kHz Rated voltage DC 12 V Delivered power Less than and equal to 3 W per shelf Transmission Electromagnetic induction mode Transmitter Receiver NOTE • Foreign objects and dirt between the right side of the shelf and the inner cabinet wall could prevent the shelf light from turning on.

  • Page 28: Maintenance

    28 MAINTENANCE MAINTENANCE Inside Walls To help remove odors, wash the inside of the Cleaning refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons of baking soda to 1 quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so it does not scratch WARNING the surfaces of the refrigerator.

  • Page 29: Replacing The Water Filter

    MAINTENANCE Replacing the Water Filter Put the cap on the water filter, then grasp and rotate it counterclockwise to remove the water Replace the Water Filter : filter from the filter head. • Approximately every six months. • When the Replace Filter icon turns on.
  • Page 30 30 MAINTENANCE After changing the filter, press and hold the Water Filter Reset button for three seconds to reset the indicator light. NOTE To purchase a replacement water filter: • Visit your local dealer or distributor • Web : Find Parts & Accessories from Support section of signaturekitchensuite.com •...
  • Page 31 MAINTENANCE Performance Data Sheet Model: LT1000P-S NSF System Trade Name Code : MDJ64844601 The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42, Standard 53 and Standard 401.
  • Page 32 32 MAINTENANCE Average NSF specified Average Substance Avg % Permissible Influent Challenge Product Water Reduction Reduction Reduction Product Water Challenge Concentration Concentration Requirements Concentration Mercury @ pH 6.0 μg/L ± 5.6 μg/L 92.5% 0.420 μg/L 2.0 μg/L 100,000 Minimum Cyst* >99.99% 10 cysts/L ≥...
  • Page 33 (827 kPa). If your water pressure exceeds 80 psi, you must install a pressure limiting valve. For further assistance, the SIGNATURE KITCHEN Contact a plumber if uncertain how to check your SUITE Customer Information Center is open 24 hours water pressure.

  • Page 34: Troubleshooting

    34 TROUBLESHOOTING TROUBLESHOOTING FAQs: Frequently Asked Questions What are the best temperature settings for my freezer? The default setting for the freezer is 0° Fahrenheit (-18° Celsius). Adjust these settings as necessary to keep food at desired temperatures. Ice cream should be firm and ice cubes should not melt in the freezer.

  • Page 35: Before Calling For Service

    TROUBLESHOOTING Before Calling for Service Review this section before calling for service; doing so will save you both time and money. Cooling Problem Possible Cause Solutions The refrigerator control is set Turn the control ON. Refer to the Setting the Controls to OFF (some models).
  • Page 36 36 TROUBLESHOOTING Cooling Problem Possible Cause Solutions When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This Doors are opened often or raises the temperature and moisture level within the for long periods of time. compartment.
  • Page 37 TROUBLESHOOTING Cooling Problem Possible Cause Solutions When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This Doors are opened often or raises the temperature and moisture level within the for long periods of time. compartment.
  • Page 38 38 TROUBLESHOOTING Parts & Features Problem Possible Cause Solutions Food packages are blocking Rearrange food containers to clear the door and door the door open. shelves. Ice bin, crisper cover, pans, Push bins all the way in and put crisper cover, pans, shelves, door bins, or shelves and baskets into their correct positions.
  • Page 39 TROUBLESHOOTING Noises Problem Possible Cause Solutions The defrost control will click when the automatic defrost cycle begins and Clicking ends. The thermostat control (or Normal Operation refrigerator control on some models) will also click when cycling on and off. Rattling noises may come from the flow of refrigerant, the water line on the back Normal Operation of the unit, or items stored on top of or...
  • Page 40 Find the Wi-Fi network connected to your smartphone that you are trying to connect and remove it, then register your appliance on to is incorrect. SIGNATURE KITCHEN SUITE application. Mobile data for your Turn off the Mobile data of your smartphone and smartphone is turned on.

  • Page 41: Limited Warranty

    Should your SIGNATURE KITCHEN SUITE (“Product”) fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, SIGNATURE KITCHEN SUITE will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product and applies only when purchased and used within the United States including U.S.
  • Page 42 The cost of repair or replacement under these excluded circumstances shall be borne by the consumer. TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION Call 1-855-790-6655 and select the appropriate option from the menu. Or visit our website at http://www.signaturekitchensuite.com. Or by mail: SIGNATURE KITCHEN SUITE Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC...
  • Page 43 Customer Information Center For inquires or comments, call; 1-855-790-6655 USA, Consumer User...
