OWNER'S MANUAL

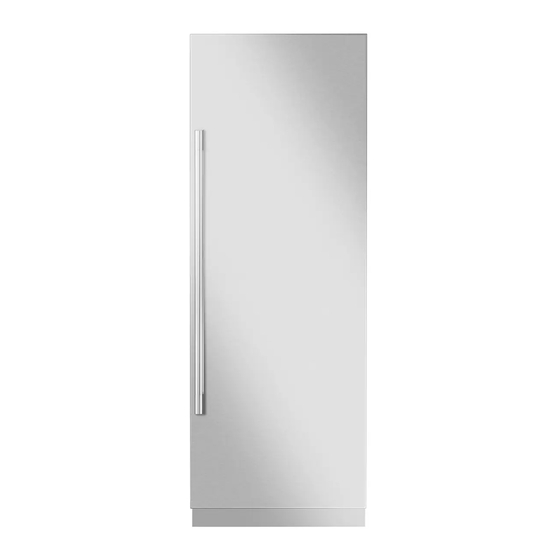

BUILT-IN REFRIGERATOR
Read this owner's manual thoroughly before operating the appliance
and keep it handy for reference at all times.
SKSCR3001P
MFL70339802_Rev.02
www.signaturekitchensuite.com
Copyright © 2017 Signature Kitchen Suite. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKSCR3001P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Signature SKSCR3001P

Summary of Contents for Signature SKSCR3001P

  • Page 1 OWNER’S MANUAL BUILT-IN REFRIGERATOR Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. SKSCR3001P www.signaturekitchensuite.com Copyright © 2017 Signature Kitchen Suite. All Rights Reserved. MFL70339802_Rev.02...

  • Page 2: Table Of Contents

    Internal Water Dispenser Storing Food Drawers Adjusting the Door Bins Adjusting the Shelves Adjusting the Snack Pan 18 SMART FUNCTIONS SIGNATURE KITCHEN SUITE Application Smart Grid Function Smart Diagnosis™ Function 24 MAINTENANCE Cleaning Replacing the Water Filter 30 TROUBLESHOOTING FAQs: Frequently Asked Questions...

  • Page 3: Product Features

    PRODUCT FEATURES PRODUCT FEATURES Depending on the model, some of the following functions may not be available. FILTERED WATER The water dispenser dispenses fresh, chilled water. DOOR ALARM The Door Alarm function is designed to prevent refrigerator malfunctioning that could occur if a door remains open.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages. This is the safety alert symbol.
  • Page 5 SAFETY INSTRUCTIONS OPERATION • This product is not to be used for special purposes such as the storage of medicine or test materials or for use on ships, etc. • DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the refrigerator.

  • Page 6: Grounding Instructions

    SAFETY INSTRUCTIONS MAINTENANCE • Do not use a hair dryer to dry the inside of the refrigerator. • Do not light a candle to remove odors in the refrigerator. • In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure the area is adequately ventilated and contact an authorized service center.
  • Page 7 SAFETY INSTRUCTIONS CAUTION To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: INSTALLATION • Do not install the refrigerator where there may be a danger of the unit falling. •...

  • Page 8: Product Specifications

    The appearance and specifications listed in this manual may vary due to constant product improvements. Electrical requirements: 115 V, 60 Hz Min. / Max. water pressure: 20 - 120 psi (138 - 827 kPa) Model SKSCR3001P Description Built-in, Refrigerator Net weight...

  • Page 9: Product Overview

    PRODUCT OVERVIEW PRODUCT OVERVIEW The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes. Interior Water filter Adjustable Refrigerator Shelf Purifies water. The refrigerator shelves are adjustable to meet individual storage needs.

  • Page 10: Operation

    10 OPERATION OPERATION Before Use Clean the refrigerator. Clean the refrigerator thoroughly and wipe off all dust that accumulated during shipping. CAUTION • Do not scratch the refrigerator with a sharp object or use a detergent that contains alcohol, a flammable liquid or an abrasive when removing any tape or adhesive from the refrigerator.

  • Page 11: Control Panel

    Replace the water filter when the Replace Filter The Wi-Fi button, when used with the icon turns on. After replacing the water filter, SIGNATURE KITCHEN SUITE smart phone press and hold the Water Filter button for three app, allows the refrigerator to connect to a home seconds to turn the icon light off.
  • Page 12 12 OPERATION SABBATH Sabbath mode is used on the Jewish Sabbath and holidays. • To turn Sabbath mode on, touch the display to activate it, then press and hold the Refrigerator and Power buttons for 3 seconds until Sb appears in the display.

  • Page 13: Internal Water Dispenser

    Doing so may cause damage to the bin or personal injury if items are removed with • If water is dispensed unexpectedly, turn off the excessive force. water supply and contact a SIGNATURE KITCHEN SUITE Customer Information Center. NOTE • After installation, dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove •...

  • Page 14: Drawers

    14 OPERATION Drawers Food Storage Tips Wrap or store food in the refrigerator in airtight and Use the upper compartment to store packaged foods moisture-proof material unless otherwise noted. This and frequently-used foods. prevents food odor and taste transfer throughout the Use the lower compartments for larger foods and refrigerator.
  • Page 15 OPERATION Assembling the Drawer Removing the Drawer Support Pull out the drawer support until it stops. Angle Press the levers on either side of the drawer the drawer into the space and set it on the support. support. Keeping both levers pressed, lift the drawer Slide the drawer back until it lowers into place on support slightly and remove it from the rail the support.

  • Page 16: Adjusting The Door Bins

    16 OPERATION Adjusting the Door Bins Adjusting the Shelves To adjust the location of the bin, tilt the front of the bin The shelves in the refrigerator are adjustable to meet up and slide the bin up or down to the desired individual storage needs.

  • Page 17: Adjusting The Snack Pan

    OPERATION Adjusting the Snack Pan Detaching the Snack Pan Tilt up the front of the shelf and then lift the Snack The location of the snack pan is adjustable for your Pan straight up. convenience. Pull the Snack Pan out. Removing the Drawer Pull the drawer out until it stops.

  • Page 18: Smart Functions

    Internet service provider or refer to your wireless The SIGNATURE KITCHEN SUITE application allows router manual. you to communicate with the appliance using a • The SIGNATURE KITCHEN SUITE application is smartphone. not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.

  • Page 19: Signature Kitchen Suite Application

    SUITE Application • If you change your wireless router, your Internet service provider or your password after registering Search for the SIGNATURE KITCHEN SUITE the appliance, please delete it from the application from the Google Play Store or Apple App SIGNATURE KITCHEN SUITE application Settings Store on a smart phone.

  • Page 20: Smart Grid Function

    These notification events are known as Demand Response signals. SIGNATURE KITCHEN SUITE Open API If the refrigerator receives a Demand Response You can manage Smart Grid features for the signal from the utility company, the refrigerator will SIGNATURE KITCHEN SUITE refrigerator.

  • Page 21: Smart Diagnosis™ Function

    Smart Diagnosis™ center. Use the Smart Diagnosis feature in the SIGNATURE KITCHEN SUITE application for help diagnosing issues with the appliance without the assistance of the SIGNATURE KITCHEN SUITE Customer Information Center.
  • Page 22 This equipment should be installed and operated with SIGNATURE KITCHEN SUITE will also provide open a minimum distance of 20 cm (7.8 inches) between source code to you on CD-ROM for a charge covering the antenna and your body.
  • Page 23 SMART FUNCTIONS Wireless Power Transfer Specifications Frequency 330 kHz ~ 370 kHz Rated voltage DC 12 V Delivered power Less than and equal to 3 W per shelf Transmission Electromagnetic induction mode Transmitter Receiver NOTE • Foreign objects and dirt between the right side of shelf and the inner cabinet wall could prevent the shelf light from turning on.

  • Page 24: Maintenance

    24 MAINTENANCE MAINTENANCE Inside Walls To help remove odors, wash the inside of the Cleaning refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons of baking soda to 1 quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so it does not scratch WARNING the surfaces of the refrigerator.

  • Page 25: Replacing The Water Filter

    MAINTENANCE Replacing the Water Filter Put the cap on the water filter, then grasp and rotate it counterclockwise to remove the water Replace the Water Filter : filter from the filter head. • Approximately every six months. • When the Replace Filter icon turns on.
  • Page 26 26 MAINTENANCE After changing the filter, press and hold the Water Filter Reset button for three seconds to reset the indicator light. NOTE To purchase a replacement water filter: • Visit your local dealer or distributor • Web : Find Parts & Accessories from Support section of signaturekitchensuite.com •...
  • Page 27 MAINTENANCE Performance Data Sheet Model: LT1000P-S NSF System Trade Name Code : MDJ64844601 The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42, Standard 53 and Standard 401.
  • Page 28 28 MAINTENANCE Average NSF specified Average substance Avg % Permissible Influent Challenge Product Water Reduction Reduction Reduction Product Water Challenge Concentration Concentration Requirements Concentration Mercury @ pH 6.0 μg/L ± 5.6 μg/L 92.5% 0.420 μg/L 2.0 μg/L 100,000 Minimum Cyst* >99.99% 10 cysts/L ≥...
  • Page 29 • Do not install if water pressure exceeds 120 psi signaturekitchensuite.com website. (827 kPa). If your water pressure exceeds 80 For further assistance, the SIGNATURE KITCHEN psi, you must install a pressure limiting valve. SUITE Customer Information Center is open 24 hours Contact a plumber if uncertain how to check your a day/7 days a week.

  • Page 30: Troubleshooting

    30 TROUBLESHOOTING TROUBLESHOOTING FAQs: Frequently Asked Questions What are the best temperature settings for my refrigerator? The default setting for the refrigerator is 37° Fahrenheit (3° Celsius). Adjust these settings as necessary to keep food at desired temperatures. To switch the display from Fahrenheit to Celsius, press the Refrigerator button first to wake the display then press and hold the Refrigerator and Smart Grid buttons until you hear a beep and the settings in the display change.

  • Page 31: Before Calling For Service

    TROUBLESHOOTING Before Calling for Service Review this section before calling for service; doing so will save you both time and money. Cooling Problem Possible Cause Solutions The refrigerator control is set Turn the control ON. Refer to the Setting the Controls to OFF (some models).
  • Page 32 32 TROUBLESHOOTING Cooling Problem Possible Cause Solutions When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This Doors are opened often or raises the temperature and moisture level within the for long periods of time. compartment.
  • Page 33 TROUBLESHOOTING Cooling Problem Possible Cause Solutions When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This Doors are opened often or raises the temperature and moisture level within the for long periods of time. compartment.
  • Page 34 34 TROUBLESHOOTING Parts & Features Problem Possible Cause Solutions Food packages are blocking Rearrange food containers to clear the door and door the door open. shelves. Ice bin, crisper cover, pans, Push bins all the way in and put crisper cover, pans, shelves, door bins, or shelves and baskets into their correct positions.
  • Page 35 TROUBLESHOOTING Noises Problem Possible Cause Solutions The defrost control will click when the automatic defrost cycle begins and Clicking ends. The thermostat control (or Normal Operation refrigerator control on some models) will also click when cycling on and off. Rattling noises may come from the flow of refrigerant, the water line on the back Normal Operation of the unit, or items stored on top of or...
  • Page 36 Find the Wi-Fi network connected to your smartphone that you are trying to connect and remove it, then register your appliance on to is incorrect. SIGNATURE KITCHEN SUITE application. Mobile data for your Turn off the Mobile data of your smartphone and smartphone is turned on.

  • Page 37: Limited Warranty

    Should your SIGNATURE KITCHEN SUITE (“Product”) fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, SIGNATURE KITCHEN SUITE will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product and applies only when purchased and used within the United States including U.S.
  • Page 38 The cost of repair or replacement under these excluded circumstances shall be borne by the consumer. TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION Call 1-855-790-6655 and select the appropriate option from the menu. Or visit our website at http://www.signaturekitchensuite.com. Or by mail: SIGNATURE KITCHEN SUITE Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC...
  • Page 39 Customer Information Center For inquires or comments, call; 1-855-790-6655 USA, Consumer User...
