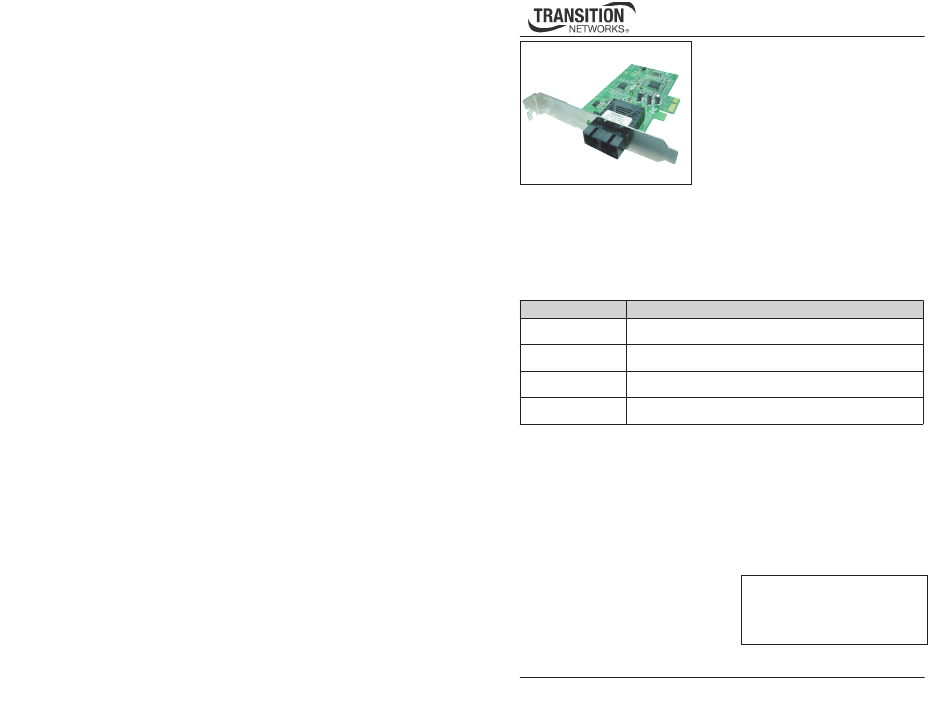

USER'S GUIDE
N-FXE-xxx-02, 100Base-FX Fiber
Adaptor NIC Cards
•
• Available with SC, LC multimode and
• Wake-on-LAN (WoL)
• Supports 802.1q VLAN tagging

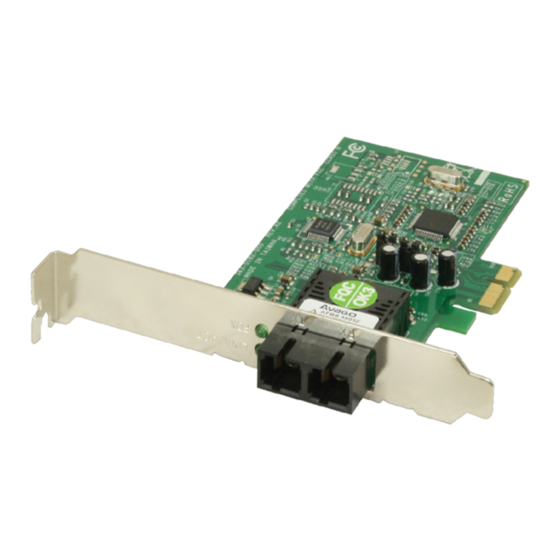

100Base-FX Fiber Adapter NIC is a Fast Ethernet NIC that fully complies with all IEEE
802.3u and 100Base-FX standards. Two LED indicators (LINK/ACT and FDX) on the
bracket will help to oversee board link activities and full-duplex status.
Fast Ethernet PCI-E 100Base-FX Fiber adapters support Preboot Execution Environment
(PXE). Multi-Boot Agent (MBA) is a software module that allows your networked
system to boot with the images provided by remote systems across the network.
Part Number
Fiber Port
N-FXE-ST-02
S
T 1310 nm multimode, 2km (1.2 miles) std/low profile bkt
PXE boot included*
N-FXE-SC-02
SC, 1310 nm multimode, 2km (1.2 miles) std/low profile bkt
PXE boot included*
N-FXE-LC-02
LC, 1310 nm multimode, 2km (1.2 miles) std/low profile bkt
PXE boot included*
N-FXE-SC5-02
SC, 1310 nm multimode, 5km (3.1 miles) std/low profile bkt
PXE boot included*
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.
PCI-Express x1 Interface
single mode fiber connections
Installation . . . . . . . . . . . . . . . . . . .2
Cable Specifications . . . . . . . . . . .4
Technical Specifications . . . . . . . .5
Troubleshooting . . . . . . . . . . . . . . .6
Contact Us . . . . . . . . . . . . . . . . . . .7
Advertisement
Table of Contents
Related Manuals for Transition Networks N-FXE-SC5-02
Summary of Contents for Transition Networks N-FXE-SC5-02
- Page 1 PXE boot included* N-FXE-LC-02 LC, 1310 nm multimode, 2km (1.2 miles) std/low profile bkt PXE boot included* N-FXE-SC5-02 SC, 1310 nm multimode, 5km (3.1 miles) std/low profile bkt PXE boot included* *Typical maximum cable distance. Actual distance is dependent upon the physical characteristics of the network installation.
- Page 2 N-FXE Series Fast Ethernet NICs Installation Install the N-FXE NIC card -- continued Checklist Replace the PC or File Server cover and secure it with the screws removed in Step 2. Before installing the Fast Ethernet N-FXE Series 100Base-FX Fiber NIC, verify that the package contains the following items: Disconnect any antistatic devices.
- Page 3 -32.0 dBm max: -14.0 dBm (4.25”L x 2.7”H) Link budget: 13.0 dB Shipping Weight: 454 kg (1 lb) N-FXE-SC5-02 1310 nm single mode Power requirements: 3.3VDC @ 0.7A Fiber optic transmitter power: min: -20.0 dBm max: -0.0 dBm Power consumption: 2.4 watts...
- Page 4 Lit when cable connection is good and speed is at 100 Mbps. Transition now Blinks when any traffic is present. Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and click the Transition Now link. Green Lit when full-duplex mode is active.
- Page 5 All registered trademarks and trademarks are the property of their respective owners. Copyright restrictions © 2011 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means—graphic, electronic or mechanical—without written permission from Transition Networks Printed in the U.S.A.
