Transition Networks
N-TGE-SFP-02
PCIe 10 Gigabit Ethernet Fiber NIC
User Guide
Contents
1. Introduction ............................................................................................................................................... 2
Features ..................................................................................................................................................................2
Specifications ..........................................................................................................................................................4
Application Example ...............................................................................................................................................5
Product Views .........................................................................................................................................................5
Changing the Bracket (Optional) ............................................................................................................................6
2. Installation ................................................................................................................................................. 7
Package Contents ...................................................................................................................................................7
Cautions and Warnings ...........................................................................................................................................7
Safety Warnings ......................................................................................................................................................7
Install Process .........................................................................................................................................................8
System Requirements .............................................................................................................................................8
Installing the N-TGE-SFP-02 ....................................................................................................................................8
Downloading and Installing the Driver ................................................................................................................ 10
Installing the Drivers from the Intel CD or Installer Package ........................................................................... 10
Install Drivers and Software ............................................................................................................................. 10
Additional Driver Information ............................................................................................................................. 12
Windows 10 ..................................................................................................................................................... 12
Complete Driver Pack (Windows, Linux, and FreeBSD) ................................................................................... 12
Update Both NVM and Driver Simultaneously ................................................................................................ 12
Copper SFPs and Copper Cable ........................................................................................................................... 14
SFP/SFP+ Optical Modules ................................................................................................................................... 14
3. LEDs ......................................................................................................................................................... 16
4. Troubleshooting ....................................................................................................................................... 17
Product and Box Label Information ..................................................................................................................... 18
Record Device and System Information .............................................................................................................. 19
5. Compliance Information ........................................................................................................................... 20
Declaration of Conformity ................................................................................................................................... 20
Electronic Emission Notices ................................................................................................................................. 20
6. Warranty and Contact Information ........................................................................................................... 21
Warranty .............................................................................................................................................................. 21
Contact Us ........................................................................................................................................................... 22
7. Record of Revisions .................................................................................................................................. 22
33819 Rev. A
®
Network Adapter Drivers in Windows ......................................................................... 11
https://www.transition.com
N-TGE-SFP-02 User Guide
Page 1 of 22
Advertisement
Table of Contents
Related Manuals for Transition Networks N-TGE-SFP-02
Summary of Contents for Transition Networks N-TGE-SFP-02
-
Page 1: Table Of Contents
Cautions and Warnings ............................7 Safety Warnings ..............................7 Install Process .................................8 System Requirements .............................8 Installing the N-TGE-SFP-02 ............................8 Downloading and Installing the Driver ........................ 10 Installing the Drivers from the Intel CD or Installer Package ................10 Install Drivers and Software ..........................10 Manually Install Intel ®... -
Page 2: Introduction
N-TGE-SFP-02 User Guide 1. Introduction The N-TGE-SFP-02 is a 2-port PCIe bus fiber NIC that supports a 1Gbps/10Gbps link. The open SFP slots can be used with 1000Base-X SFPs or 10GBase-SR/LR SFP+ modules. The NIC fully complies with IEEE 802.3ae and IEEE 802.3z standards. - Page 3 Transition Networks N-TGE-SFP-02 User Guide Feature Descriptions MR-IOV (Multi-Root IOV) allows I/O PCI Express to share resources among different VMs on different physical machines. MSI (Message Signaled Interrupts) can allocate 1, 2, 4, 8, 16 or 32 interrupts. MSI-X allows up to 2048 interrupts.
-
Page 4: Specifications
Limited Lifetime warranty Note: The supported fiber type and transmission distance depend on the SFP/SFP+ module installed in the NIC’s SFP slot. Note that SFP and SFP+ modules are sold separately. See the Transition Networks webpage. Note: Only 1G SFP modules that support DMI are recognized by the NIC Intel driver. -
Page 5: Application Example

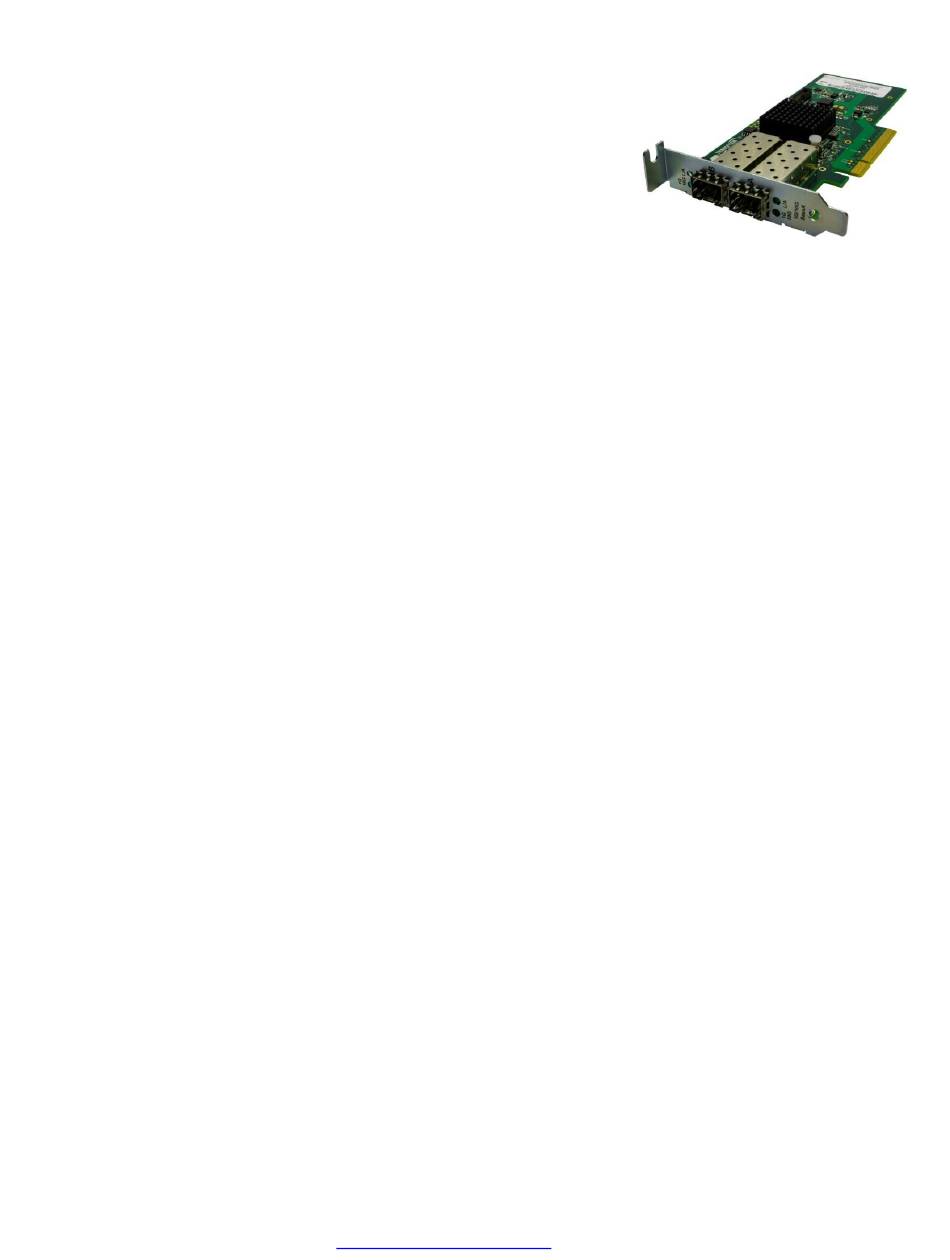

Transition Networks N-TGE-SFP-02 User Guide Application Example Product Views Standard Bracket Low Profile Bracket N-TGE-SFP-02 with Low Profile Bracket and Open SFP Slots 33819 Rev. A https://www.transition.com Page 5 of 22... -
Page 6: Changing The Bracket (Optional)
Transition Networks N-TGE-SFP-02 User Guide N-TGE-SFP-02 with Low Profile Bracket and Open SFP Slots Changing the Bracket (Optional) The NIC ships with the Standard bracket attached; an optional low profile bracket is included. Use the following procedure to change brackets. -
Page 7: Installation
Anyone using this product in such an application without express written consent of an officer of Transition Networks does so at their own risk and agrees to fully indemnify Transition Networks for any damages that may result from such use or sale. -
Page 8: Install Process
One open PCI-Express slot (v3.0 or newer) 8x, or 16x Installing the N-TGE-SFP-02 The following instructions apply to installing the N-TGE-SFP-02 NIC in most systems. Refer to the manual(s) supplied with your system for details about performing these tasks on your particular system. - Page 9 Transition Networks N-TGE-SFP-02 User Guide 5. Remove the N-TGE-SFP-02 NIC from the shipping package and store the packaging material in a safe location. A Standard Profile bracket is included with the NIC; install the optional Low Profile bracket if the installation device requires it.
-
Page 10: Downloading And Installing The Driver
Transition Networks N-TGE-SFP-02 User Guide Downloading and Installing the Driver After installing the N-TGE-SFP-02 NIC, if the system does not automatically do so, download the driver from https://www.transition.com and follow the procedure below. 1. Download the self-extracting archive and run it. When you run it, it will extract the files to a temporary directory, run the installation wizard, and remove the temporary files when the installation is complete. -
Page 11: Manually Install Intel Network Adapter Drivers In Windows
Transition Networks N-TGE-SFP-02 User Guide In Linux Ubuntu 18.04 and 20.04 based operating systems the driver is built in to the OS, so typically you do not have to do any driver installation; the NIC just works with the driver included in the OS. -
Page 12: Additional Driver Information
Transition Networks N-TGE-SFP-02 User Guide Additional Driver Information Windows 10 Intel® Network Connections Software and Drivers: https://downloadmirror.intel.com/25016/eng/readme.htm Readme for Intel(R) Ethernet Network Adapter X710-T2L for OCP 3.0: https://downloadmirror.intel.com/22283/eng/readme.txt Release Notes for Intel(R) Network Connections Software Version 25.0: https://downloadmirror.intel.com/25016/eng/readme.txt Complete Driver Pack (Windows, Linux, and FreeBSD) Intel®... - Page 13 Transition Networks N-TGE-SFP-02 User Guide For More NVM/Driver Information Note that the information in these manuals is for experienced system administrators who are familiar with server, network, and data center concepts and technologies. Intel Ethernet NVM Update Tool Quick Usage Guide for Microsoft Windows: https://www.intel.com/content/www/us/en/embedded/products/networking/nvm-update-tool-quick-windows-...
-
Page 14: Copper Sfps And Copper Cable
SFP/SFP+ Optical Modules Note that SFP and SFP+ Modules are sold separately. For Transition Networks SFP/SFP+ Optical Transceivers see https://www.transition.com/lines/optical-devices/platform-sfp/. SFP+ transceiver modules can be used to connect fiber optic cables to the NIC card, greatly increasing the cable reach. - Page 15 Transition Networks N-TGE-SFP-02 User Guide Inserting the SFP/SFP+ Module To insert the SFP module into the cage: 1. Open the SFP module’s locking mechanism. 2. Make sure that the male connectors on the module will align with the female connectors inside of the cage.
-
Page 16: Leds
Transition Networks N-TGE-SFP-02 User Guide 3. LEDs There are four LEDs on the faceplate and one LED on the PCB: Description Power; on indicates power is on. LED D1 lights to indicate the 3.3V is being generated from the 12V PCIe voltage on the card. D1 is located on the top of the (on PCB) card near the back of the PCB. -
Page 17: Troubleshooting
Transition Networks N-TGE-SFP-02 User Guide 4. Troubleshooting If the N-TGE-SFP-02 NIC fails, isolate and correct the fault by determining the answers to the following questions and then taking the indicated action: 1. Verify that section 5. Technical Specifications on page are met. -
Page 18: Product And Box Label Information
Transition Networks N-TGE-SFP-02 User Guide Product and Box Label Information The Product ID, MAC Address, Serial #, Board PN and Rev. are printed on the Box Label and Device Label. Product Label Box Label Product Label Placement 33819 Rev. A https://www.transition.com... -
Page 19: Record Device And System Information
Transition Networks N-TGE-SFP-02 User Guide Record Device and System Information After performing the troubleshooting steps, and before calling or emailing Technical Support, please record as much information as possible in order to help the TN Tech Support Specialist. Record the following information: 1. -
Page 20: Compliance Information
Transition Networks N-TGE-SFP-02 User Guide 5. Compliance Information Declaration of Conformity Electronic Emission Notices Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the FCC Part 15, Subpart B, Class B. CISPR 22:A1:2000+A2:2002;ICES-003:2004, Class B... -
Page 21: Warranty And Contact Information
Transition Networks for a fee will carry a 180-day limited warranty. All warranty claims are subject to the restrictions and conventions set forth by this document. Transition Networks reserves the right to charge for all testing and shipping incurred, if after testing, a return is classified as "No Problem Found."... -
Page 22: Contact Us
Trademarks: All trademarks and registered trademarks are the property of their respective owners. Copyright restrictions: © 2020 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic or mechanical - without written permission from Transition Networks.
