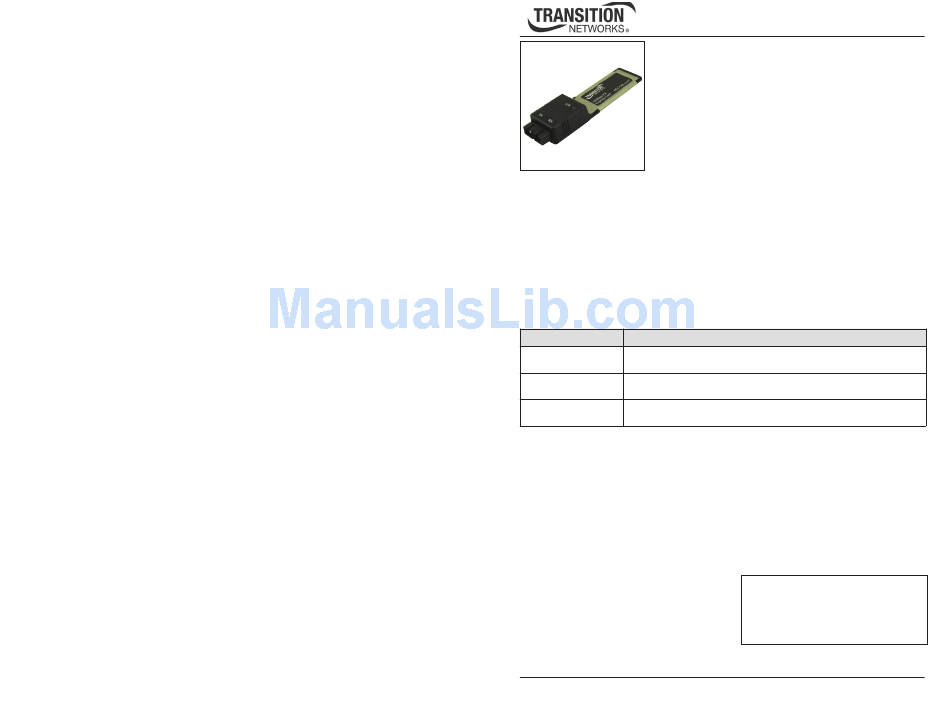

USER'S GUIDE
NEC-FXE-xx-01, 100Base-FX Express Card
• Full duplex design
• Complies with Express Card Standard
• SC and LC multimode, and SC single mode fiber
connections
• Supports PXE remote boot
• RoHS compliance
The NEC-FXE-xx-01 fiber adapter NIC is a small size Express 100Base-FX Fiber Card,
which is specifically designed to plug into a notebook or desktop computer equipped
with an Express Card slot. This fiber adapter NIC fully complies with the IEEE
802.3u/x CSMA/CD 100Base-FX and the express card standards. It has a single LED
located on top of its plastic cover that indicates 'link' and 'activity' status.
The fiber adapter NIC supports Preboot Execution Environment (PXE) and Bootstrap
Protocol (BootP). Multi-Boot Agent (MBA) is a software module that allows your
networked system to boot with the images provide by the remote system over the
network.
Part Number
Fiber Port
NEC-FXE-SC-01
SC 1300 nm multimode, 2km (1.2 miles) PXE boot included*
NEC-FXE-LC-01
LC, 1300 nm multimode, 2km (1.2 miles) PXE boot included*
NEC-FXE-SC20-01 SC, 1310 nm single mode, 20km (12.4 miles) PXE boot included*
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.
Installation . . . . . . . . . . . . . . . . . . .2
Cable Specifications . . . . . . . . . . .4
Technical Specifications . . . . . . . .5
Troubleshooting . . . . . . . . . . . . . . .6
Contact Us . . . . . . . . . . . . . . . . . . .7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEC-FXE-xx-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks NEC-FXE-xx-01

Summary of Contents for Transition Networks NEC-FXE-xx-01

  • Page 1 • Supports PXE remote boot • RoHS compliance The NEC-FXE-xx-01 fiber adapter NIC is a small size Express 100Base-FX Fiber Card, which is specifically designed to plug into a notebook or desktop computer equipped with an Express Card slot. This fiber adapter NIC fully complies with the IEEE 802.3u/x CSMA/CD 100Base-FX and the express card standards.

  • Page 2: Driver Installation

    To install a driver, do the following: Checklist Insert the CD into the CD-ROM tray. Before installing the NEC-FXE-xx-01, verify that the package contains the following items: Click on the Driver folder. Click on the folder of the drive that you want to install.

  • Page 3: Cable Specifications

    NEC-FXE-xx-01,100Base-FX Express Card Cable Specifications Technical Specifications For models NEC-FXE-xx-01 Fiber cable Standards: IEEE 802.3u, IEEE 802.3x Bit error rate: <10-9 Data rate 100Mbps fiber media Single mode fiber (recommended): 9 µm LED: LINK/ACT Multimode fiber (recommended): 62.5/125 µm -ON = communication link;...

  • Page 4: Troubleshooting

    Transition now LINK/ACT Green • Lit when the cable connection is good and speed is at 100Mbps. Chat live via the Web with Transition Networks Technical Support. Log onto • Flashes when traffic is present. www.transition.com and click Tech Support/Transition Now link.

  • Page 5: Compliance Information

    All registered trademarks and trademarks are the property of their respective owners. Copyright restrictions © 2004 – 2010 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means (graphic, electronic, or mechanical) without written permission from Transition Networks Printed in the U.S.A.
