User Guide
N-FXE-xx-02

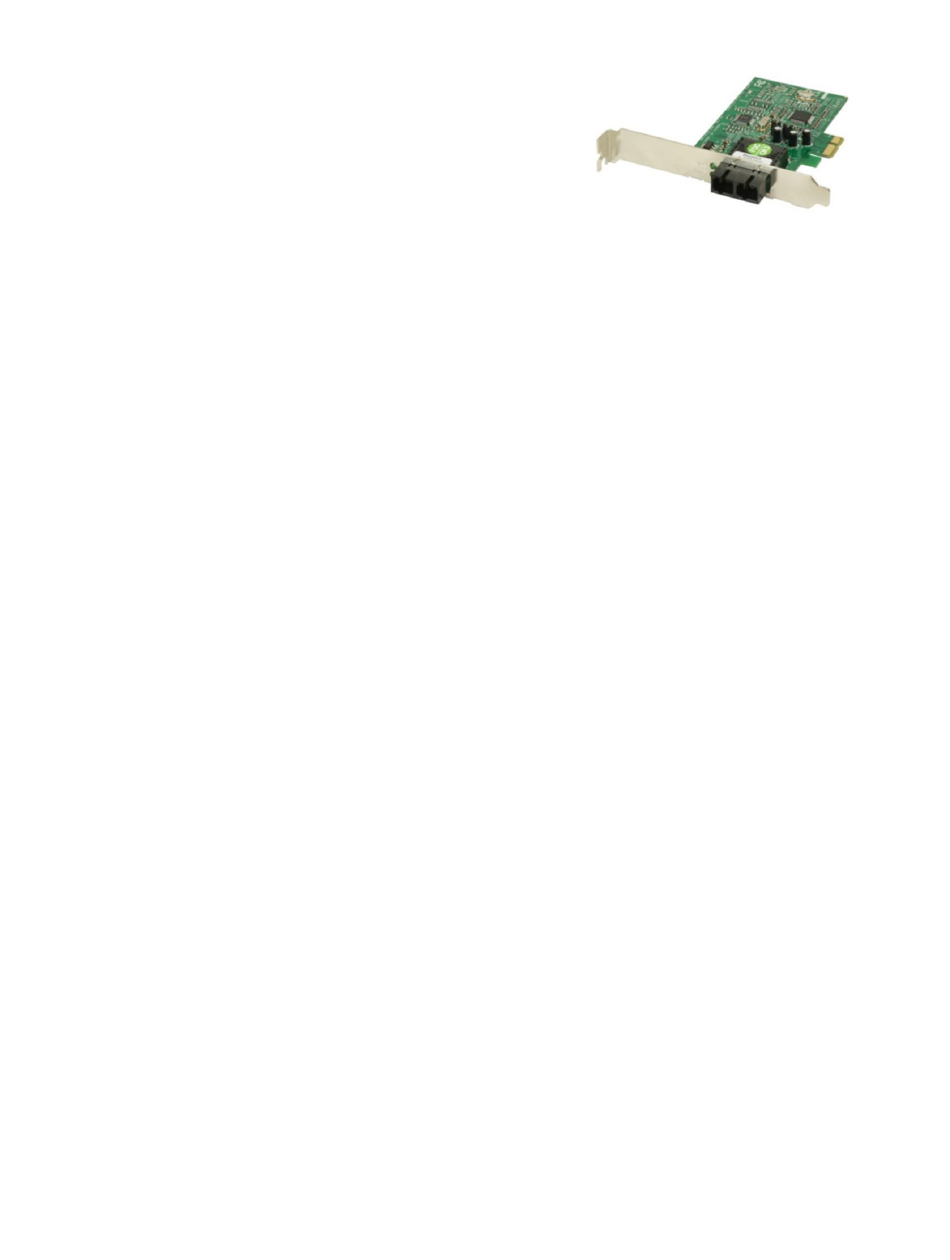

100Base-FX Fiber Adaptor NIC Cards
• PCI-Express x1 Interface
• Available with ST, SC, and LC multimode fiber connections
• Wake-on-LAN (WoL)
• Supports 802.1q VLAN tagging
Contents
Contents ........................................................................................................................................................ 1
Introduction .................................................................................................................................................. 1
Ordering Information .................................................................................................................................... 2
Features ........................................................................................................................................................ 2
Installation .................................................................................................................................................... 3
Checklist .................................................................................................................................................... 3
Description ................................................................................................................................................ 3
Installation Procedure .............................................................................................................................. 4
Network Remote Boot Configuration ....................................................................................................... 4
Wake on LAN (WoL) .................................................................................................................................. 4
Cable Specifications ...................................................................................................................................... 5
Fiber cable ................................................................................................................................................ 5
Technical Specifications ................................................................................................................................ 6
Troubleshooting ............................................................................................................................................ 7
Diagnostics LEDs and Boot ROM .............................................................................................................. 7
Contact Us ................................................................................................................................................ 7
Compliance Information ............................................................................................................................... 8
CE Mark ..................................................................................................................................................... 8
Declaration of Conformity ........................................................................................................................ 9
Record of Revisions ....................................................................................................................................... 9
Introduction
The N-FXE-xx-02 Series is a Fiber Fast Ethernet to PCI-Express (PCIe) bus adapter that fully complies with
all IEEE 802.3u and 100Base-FX standards. It provides up to 200Mbps full-duplex bandwidth capacity to
support high-end systems. In addition, with advanced functions like VLAN filtering packet processing,
the adapter provides added performance, flexible configuration and secure networking to users in a
standards-based environment.
The PCI-Express (PCIe) design gives you the maximum possible bandwidth and bus efficiency, along with
low power consumption. For users equipped with PCI-Express systems, N-FXE-xx-02 Series provides the
ability to easily build or connect to Fast Ethernet fiber networks.
Two LED indicators (LINK/ACT and FDX) on the bracket display NIC link activities and full-duplex status.
The N-FXE-xx-02 support Preboot Execution Environment (PXE). The Multi-Boot Agent (MBA) software
module lets your networked system boot with the images provided by remote systems across the
network.
33509 Rev. C
https://www.transition.com/
N-FXE-xxx-02 User Guide
Page 1 of 9
Advertisement
Table of Contents
Related Manuals for Transition Networks N-FXE-02 Series
Summary of Contents for Transition Networks N-FXE-02 Series
-
Page 1: Table Of Contents
Transition Networks N-FXE-xxx-02 User Guide User Guide N-FXE-xx-02 100Base-FX Fiber Adaptor NIC Cards • PCI-Express x1 Interface • Available with ST, SC, and LC multimode fiber connections • Wake-on-LAN (WoL) • Supports 802.1q VLAN tagging Contents Contents ................................ 1 Introduction ..............................1 Ordering Information ............................ -
Page 2: Ordering Information
Transition Networks N-FXE-xxx-02 User Guide Ordering Information Part Number Fiber Port 100Base-FX 1300nm multimode (ST); [2 km/1.2 mi.*] Link Budget: 12.0 dB. N-FXE-ST-02 Standard & LP brackets; PXE boot included. 100Base-FX 1300nm multimode (SC); [2 km/1.2 mi.*] Link Budget: 12.0 dB. -
Page 3: Installation
Transition Networks N-FXE-xxx-02 User Guide Installation Checklist Before installing the N-FXE Series NIC, verify that the package contains the following items: • Fast Ethernet N-FXE Series 100Base-FX Fiber NIC • Product Post Card Please notify your sales representative immediately if any of these items is missing or damaged. -
Page 4: Installation Procedure
Transition Networks N-FXE-xxx-02 User Guide Installation Procedure CAUTION: Wear a grounding strap and observe electrostatic discharge precautions when installing the N-FXE. Failure to observe this caution could result in failure or damage of the N-FXE. WARNING: Turn power OFF before installing the N-FXE. -
Page 5: Cable Specifications
Transition Networks N-FXE-xxx-02 User Guide Cable Specifications Fiber cable Bit error rate: <10-9 recommended Single mode fiber ( 9 μm recommended Multimode fiber ( 62.5/125 μm optional Multimode fiber ( 100/140, 85/140, 50/125 μm N-FXE-ST-02 1310 nm multimode Fiber optic transmitter power: min: -19.0 dBm max: -14.0 dBm... -
Page 6: Technical Specifications
Transition Networks N-FXE-xxx-02 User Guide Technical Specifications For models N-FXE-xx-02 Standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.1q Bus Slot PCIe 1.1 Data rate: 100Mbps fiber media Status LEDs: LINK/ACT (Link/Activity): ON = communication link; FLASHING = activity on link FDX (Full-duplex): ON = Full-duplex link Software support: Windows 2003, 10, NT 4.0, Windows 2008 Server, Vista, Novell... -
Page 7: Troubleshooting
Technical Support is available 24-hours a day. US and Canada: 1-800-260-1312. International: 00-1-952- 941-7600. Main Office tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com techsupport@transition.com customerservice@transition.com Address Transition Networks | 10900 Red Circle Drive | Minnetonka, MN 55343, U.S.A. Web: https://www.transition.com 33509 Rev. C https://www.transition.com/ Page 7 of 9... -
Page 8: Compliance Information
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document. -
Page 9: Declaration Of Conformity
Trademarks: All trademarks and registered trademarks are the property of their respective owners. Copyright restrictions: © 2011-2020 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic or mechanical - without written permission from Transition Networks.
