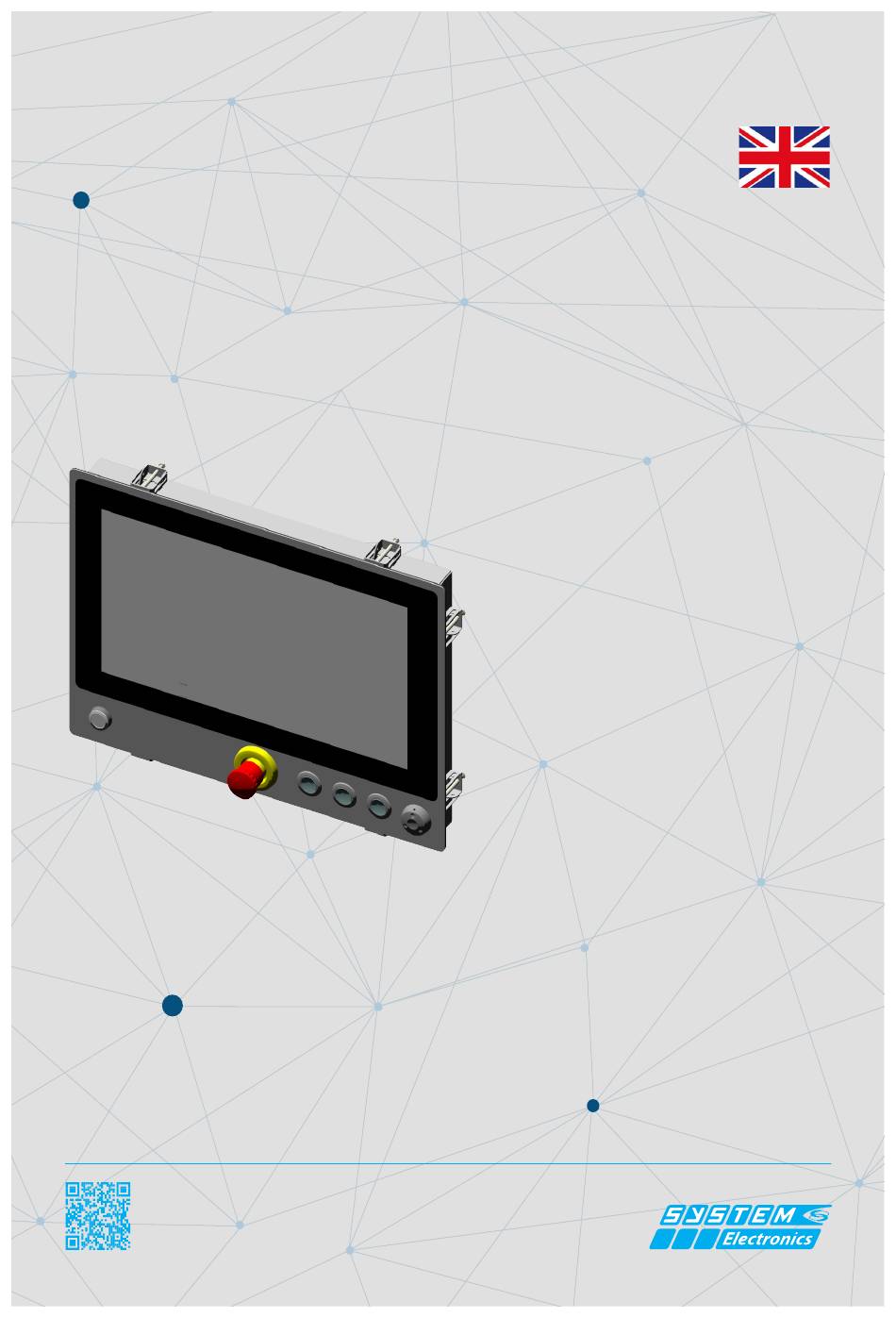

INDUSTRIAL PC

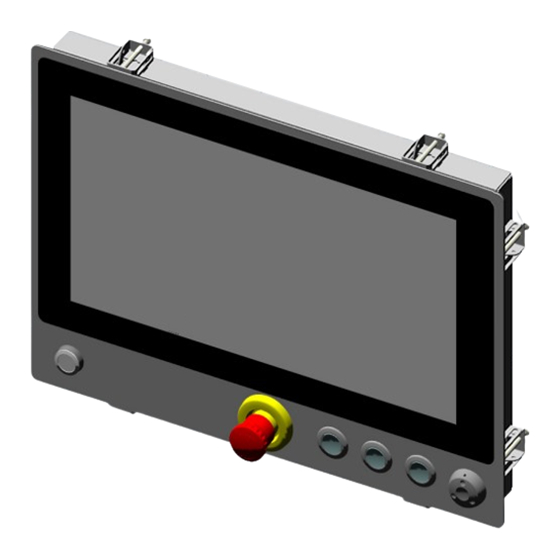

COPILOT 15.6'' PB
Panel Mount
2E00xxxx
Order Code:
Date: 12/2020 - Rev: 1.0
system-electronics.it
USER MANUAL
1. General Features........................................3
2. Technical specifi cations.................................................3
3. Operation description......................................3
4.1 Calibrating the
5.
6.
Front panel................................................5
7. Installation.............................................6
8. Waste Directive.......................................................7
Summary
touchscreen.................................4
brightness...........5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COPILOT PB and is the answer not in the manual?

Questions and answers

Related Manuals for SYSTEM Electronics COPILOT PB

Summary of Contents for SYSTEM Electronics COPILOT PB

  • Page 1: Table Of Contents

    INDUSTRIAL PC USER MANUAL COPILOT 15.6’’ PB Panel Mount Summary 1. General Features........3 2. Technical specifi cations..........3 3. Operation description........3 4. Touchscreen: Operation and Calibration..4 4.1 Calibrating the touchscreen.........4 4.2 Default Touch parameter settings....5 Adjusting the display brightness...5 Front panel..........5 7.
  • Page 2 Revision History Pages Rev. 1.0 Writing This product meets the EMC protection re- quirements of Directive 2014/30/EC (ex 89/336/EEC) and subsequent amend- ments. SYSTEM Ceramics S.p.A - Div. Electronics reserves SYSTEM CERAMICS s.p.a. Div. Electronics the right to make changes of any kind to the technical via Ghiarola Vecchia, 73 specifications at any time and without notice.

  • Page 3: General Features

    Industrial PC - COPILOT 21.5" PB Panel Mount 1. General Features 802.11 a/b/g/n + Bluetooth 4.0 Audio: Line in/Line out Copilot 15.6'' PB is the operator panel from System Video Output: DVI/VGA Electronics that offers performance for all supervisory • UPS Uninterruptible power supply available on and on-board machine applications, with an innovative request...

  • Page 4: Touchscreen: Operation And Calibration

    Copilot 15.6 "PB features an innovative back-projected capacitive touch screen (PCAP) with 10 touches possible simultaneously. System Electronics can provide different settings to cover the different needs of the operator interface: from the operation with gloves or in dirty environments to the...

  • Page 5: Default Touch Parameter Settings

    To reset the factory settings again, select the "RESET" button from the TABLET PC SETTING window: 5.1 "Power Options" screen System Electronics makes available tools and examples to adjust the brightness of the display remotely, typi- cally from a supervisor PC via Ethernet communication...

  • Page 6: Installation

    Industrial PC - COPILOT 21.5" PB Panel Mount 3) Start - Run IEC 60417-5104 (200-08) START/START UP/INSERTION 4) Stop: IEC 60417-5110A(2004-06) 5) Reset (ISO 7000 – 1027) 6) Incremental encoder managed through knob -optional 7. Installation December 2020 - Rev. 1.0 Order Code 2E00xxxx pag.

  • Page 7: Waste Directive

    Industrial PC - COPILOT 21.5" PB Panel Mount Image for indicative purposes only: Internal connectors may vary depending on the installed Mainboard. 9 . W a s t e E l e c t r i c a l a n d E l e c t r o n i c Equipment (WEEE) a n d...
